BW-200T - 200A AC/DC Pulse Tig Welder
It features a complete set of control functions to cater for the more demanding jobs and includes a stick function to add to its versatility
The BW-200T is the ultimate 200amp AC/DC Welding Machine. With variable AC frequency and pulse welding it caters for the more technical aluminum jobs. The BW-200T is the ideal AC/DC welder for the aluminum welding fanatic.
- IGBT inverter
- Dual voltage can run on 120 volt or 230 volt single-phase power
- AC/DC
- Remote adjustment
- Pulse ratio and frequency
- Peak / base current
- Variable AC frequency / balance
- Thermal overload protected
- Fan cooled (on demand)
- Tig / Stick / Lift Arc
- 2 /4 step
- Pre / Post gas flow
- Up / Down Slope
- Variable arc force
- Generator safe
- Easily sourced consumables

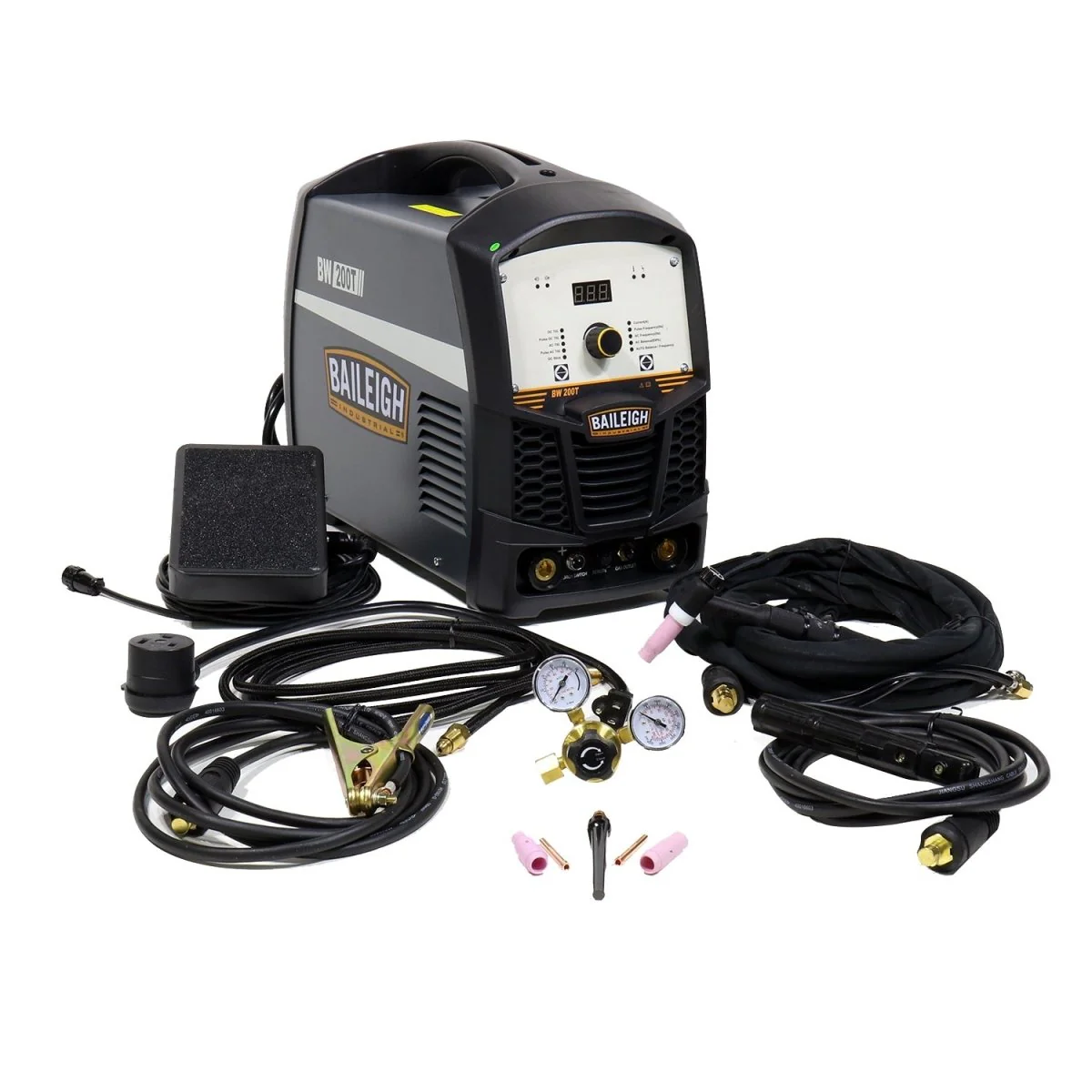

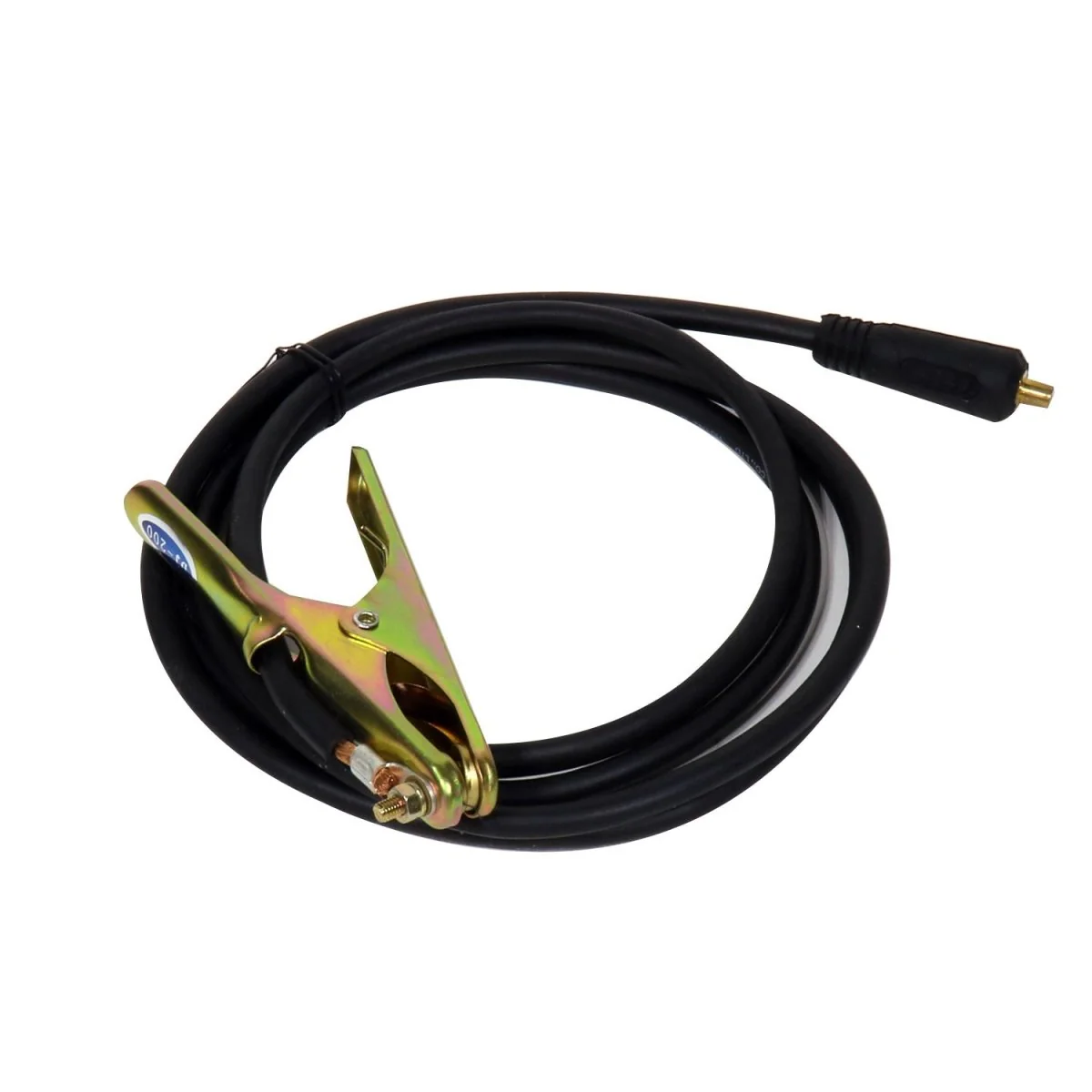

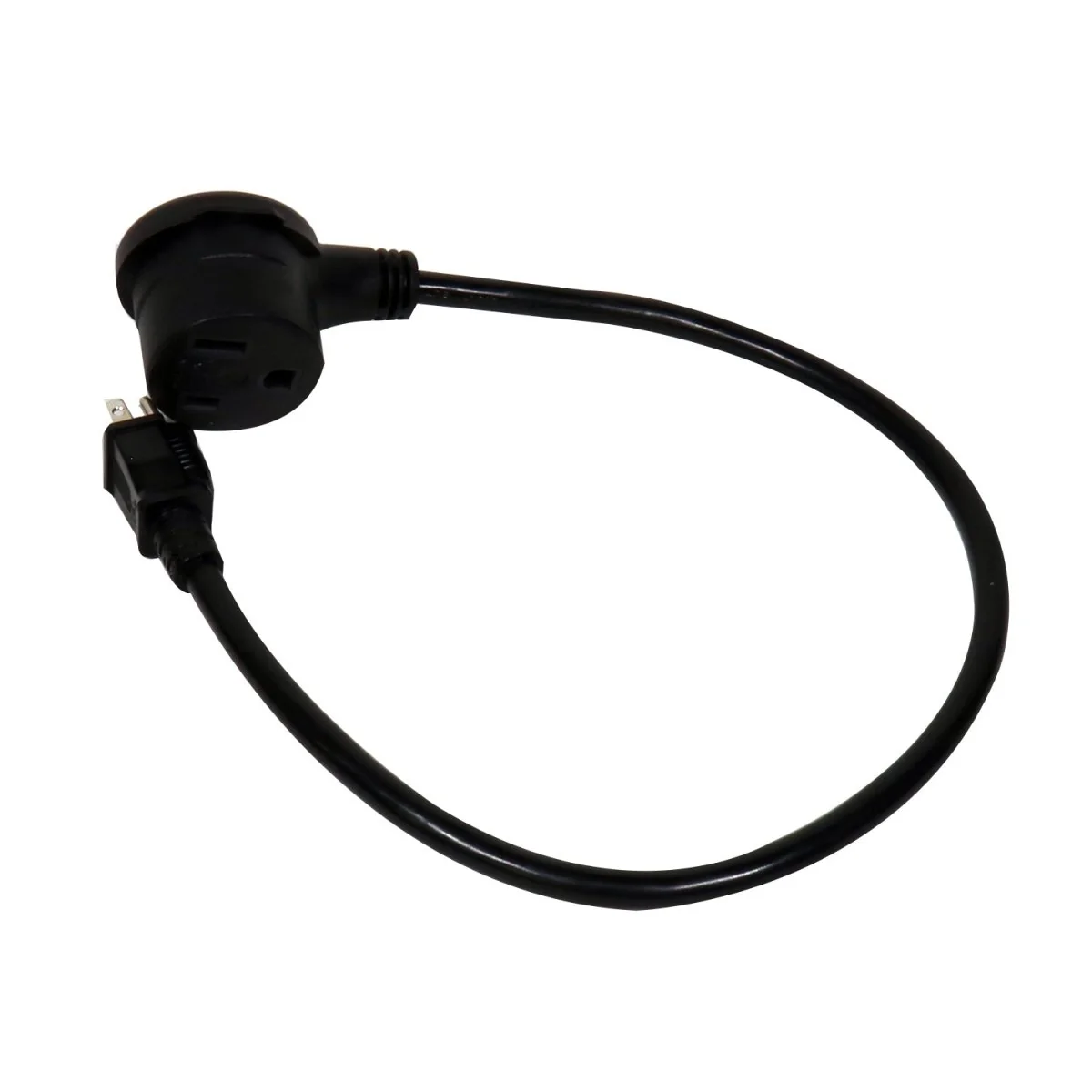

- Includes TIG Torch, ground clamp, 6-50P 250V plug, adaptor to 120V plug, gas hose with regulator, and foot pedal
| Item Number | BW-200T |
|---|---|
| Cooling System | Fan Cooled |
| Maximum Current | 200 Amps |
| Power | Dual Voltage - 120V/230V Single Phase |
| Shipping Weight | 64lbs |
| Rated Input Current | 20A (120V) / 31A (230V) |
| Rated Input Capacitance | 2.4KVA (120V) / 7.1KVA (230V) |
| No-Load Voltage | 65V (120V) / 65V (230V) |
| Rated Working Voltage | 22.6 (120V) / 26.4 (230V) |
| Efficiency | 80% |
| Power Factor | .8 |
| Insulation Class | F |
| Enclosure Protection | IP21S |
| MMA Rated Current | 20A~65A (120V) / 20A~160A (230V) |
| TIG Arc Way | HF (120V) / HF (220V) |
| Rated Current (DC TIG) | 10A~95A (120V) / 10A~200A (230V) |
| Peak Current (DC Pulse TIG) | 10A~95A (120V) / 10A~200A (230V) |
| Base Current (DC Pulse TIG) | 50% Peak Current (120V) / 50% Peak Current (230V) |
| Duty Cycle (DC Pulse TIG) | 40% (120V) / 35% (230V) |
| Pulse Frequency (DC TIG) | 0.2Hz~200Hz (120V) / 0.2Hz~200Hz (230V) |
| Rated Current (AC TIG) | 20A~95A (120V) / 20A~200A (230V) |
| Frequency (AC TIG) | 50Hz~150Hz (120V) / 50Hz~150Hz (230V) |
| Balance (AC TIG) | 50%~85% (120V) / 50%~85% (230V) |
| Peak Current (AC Pulse TIG) | 20A~95A (120V) / 20A~200A (230V) |
| Base Current (AC Pulse TIG) | 50% Peak Current (120V) / 50% Peak Current (230V) |
| Frequency (AC Pulse TIG) | 50Hz~150Hz (120V) / 50Hz~150Hz (230V) |
| Balance (AC Pulse TIG) | 50%~85% (120V) / 50%~85% (230V) |
| Pulse Frequency (AC Pulse TIG) | 0.2Hz~20Hz (120V) / 0.2Hz~20Hz (230V) |
| Duty Cycle (AC Pulse TIG) | 40% (120V) / 35% (230V) |
| Special Notes | Includes TIG Torch, ground clamp, 6-50P 250V plug, adaptor to 120V plug, gas hose with regulator, and foot pedal |
| Certification | CSA UL |
| Shipping Dimensions (Inches) | 23x13x18 |
* specifications subject to change without notice.
