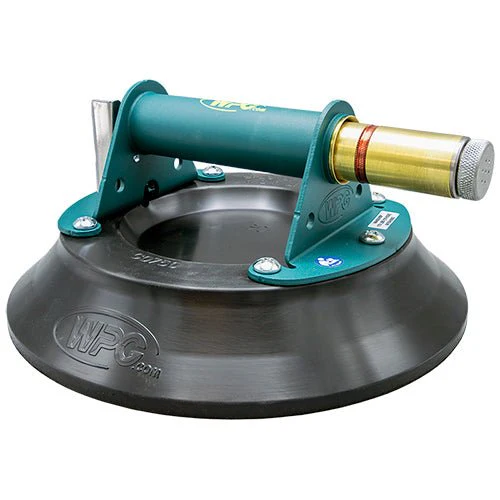

This metal-handle cup attaches easily to curved, nonporous surfaces weighing up to 175 lbs [79 kg]. Comes with Low Vacuum Audio Alarm. Not for use on thin, fragile materials.

Not for use on thin, fragile materials.

Instructions

Specifications

Features:

• Red-line indicator provides user with visual warning of any vacuum loss
• Low Vacuum Audio Alarm emits 70 dBa at 36" [91 cm] audible alarm for situtations when the red-line indicator is difficult to see
• Environmentally-friendly design significantly increases lifespan of battery (about 30 hours of continuous use)

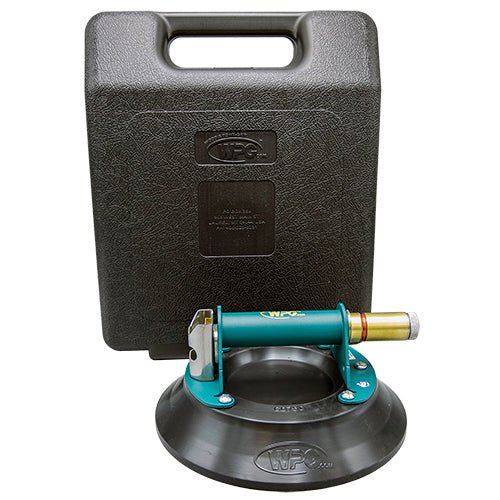

• Supplied with protective carrying case and battery

Model	N6450WBP
SKU	91807
Load Capacity	175 lbs [79 kg]
Surface Texture	Smooth
Material Porosity	Nonporous
Allowable Surface Curvature	Curved
Minimum Radius for Curved Loads	13" [330 mm]
Minimum Material Thickness	1/4" [6.35 mm]
Maximum Elevation	5000 ft [1500 m]
Material and Ambient Temperature Range	10° F [-12° C] — 120° F [49° C]
Ideal Uses	Curved or irregular nonporous surfaces when red-line indicator is difficult to see
Pad Diameter	10" [25 cm]
Pad Model	G0750
Rubber Type	Standard
Handle Type	Metal
Plunger Type	Metal
