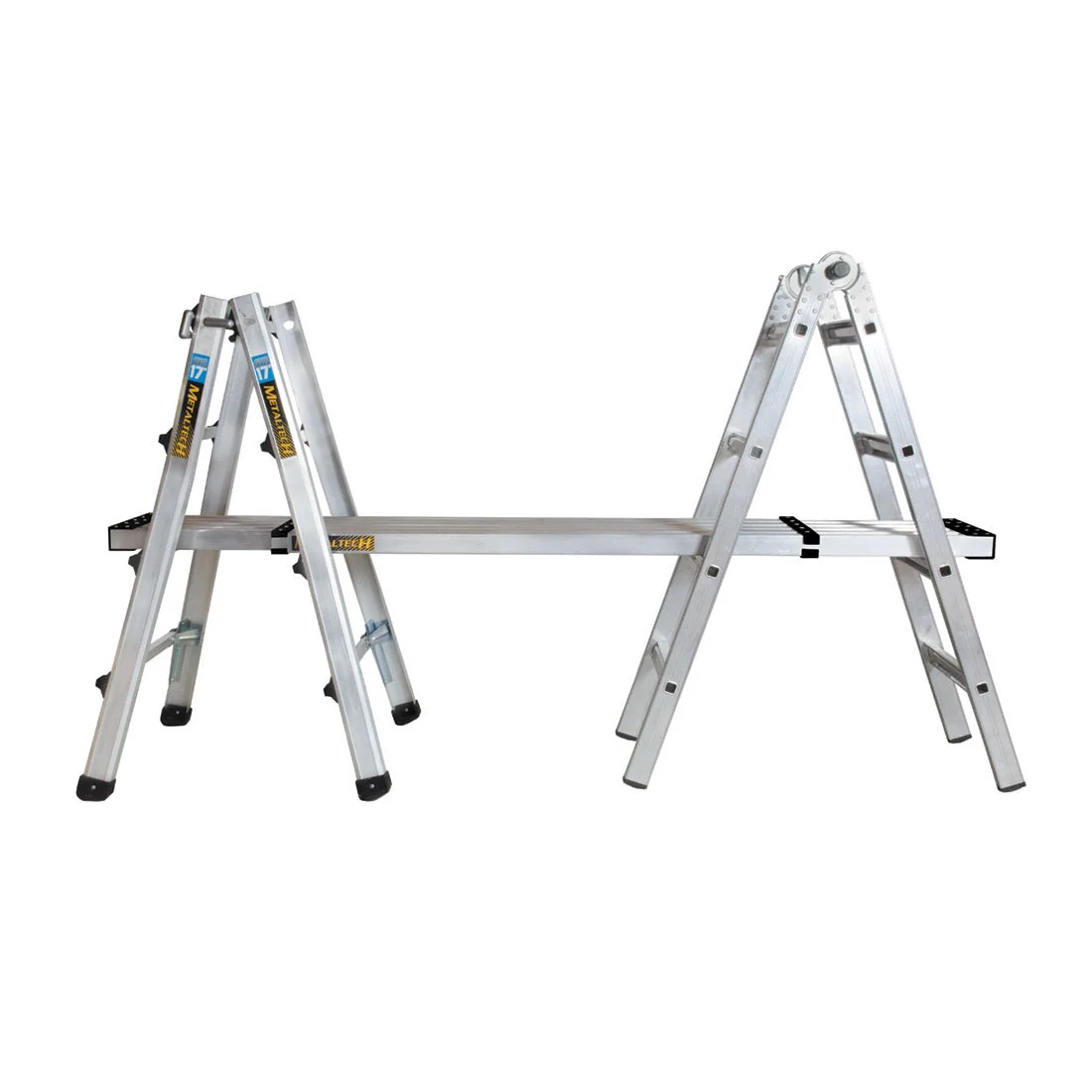

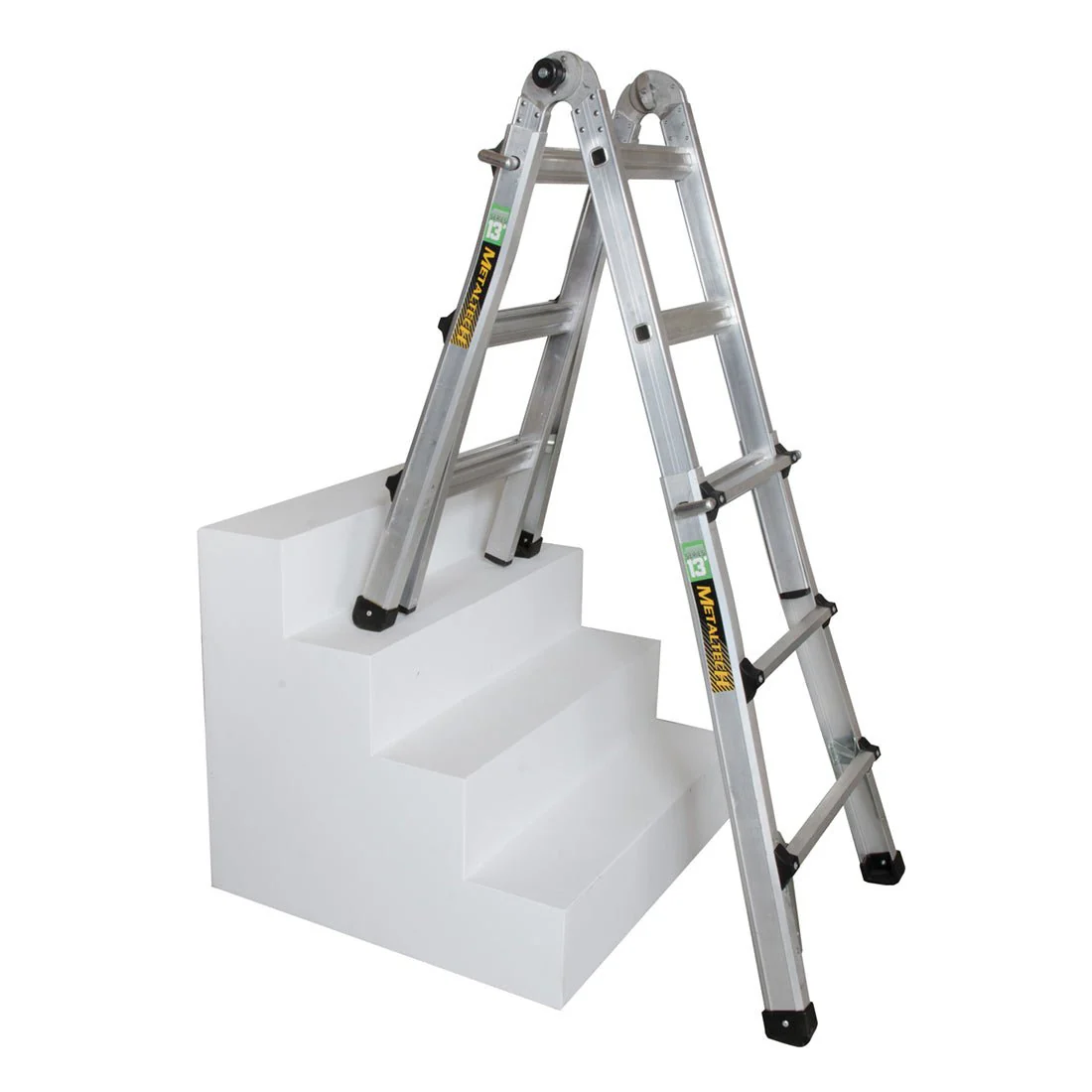

Use as an extension ladder, step ladder, stairway ladder, or 90º wall ladder.

Product Specifications

13’ Ladder

Closed Dimensions: 22.25 X 7.75 X 42.75 in. (56.5 X 19.7 X 108.6 cm)

Weight: 27.6 lb (12.5 kg)

Load Capacity: 300 lb (136 kg)

Material: Aluminum

Ladder Height: 13 ft (4 m)

Maximum Reach: 14 ft. 4 in. (4.4 m)*

Number Of Positions: 19

Highest Standing Level:

Stepladder: 2 ft. 11 in. (0.89 m)

Scaffold Supports: 1 ft. 11 In. (0.58 m)

Standard: ANSI TYPE IA, CSA GRADE 1A AND OSHA

17’ Ladder

Closed Dimensions:  23.5 x 8 x 54.5 in. (59.7 x 20.3 x 138.4 cm)

Weight:  34.5 lb (15.6 kg)

Load Capacity: 300 lb (136 kg)

Material: Aluminum

Ladder Height: 17 ft (5.2 m)

Maximum Reach: 18 ft 1 in. (5.5 m)*

Number Of Positions: 28

Highest Standing Level:

Stepladder: 4 ft 9 in. (1.4 m)

Extension Ladder: 11 ft 7 in. (3.5 m)

Scaffold Supports: 2 ft 11 in. (0.89 m)

Standard: ANSI TYPE IA, CSA GRADE 1A AND OSHA

21’ Ladder

Closed Dimensions:  26.75 x 8.75 x 66.5 in. (67.9 x 22.2 x 168.9 cm)

Weight:  42.3 lb (19.2 kg)

Load Capacity: 300 lb (136 kg)

Material: Aluminum

Ladder Height: 21 ft (6.4 m)

Maximum Reach: 22 ft (6.7 m)*

Number Of Positions: 38

Highest Standing Level:

Stepladder: 6ft 9in. (2.1m)

Extension Ladder: 15 ft 5 in. (3.5 m)

Scaffold Supports: 3ft 10 in. (1.2 m)

Standard: ANSI TYPE IA, CSA GRADE 1A AND OSHA

25’ Ladder

Closed Dimensions: 29.5 x 8 x 78.5 in. (74.9 x 20.3 x 199.4 cm)

Weight: 53.1 lb (24.1 kg)

Load Capacity: 300 lb (136 kg)

Material: Aluminum

Ladder Height: 25 ft (7.6 m)*

Maximum Reach: 26 ft (7.9 m)

Number Of Positions: 49

Highest Standing Level:

Stepladder: 8 ft 7 in. (2.6 m)

Scaffold Supports: 4 ft 9 in. (1.4 m)

Standard: ANSI TYPE IA, OSHA AND CSA US

*Calculated with a 5’9” (1.75 m) person with a vertical 12” (30 cm) reach.
