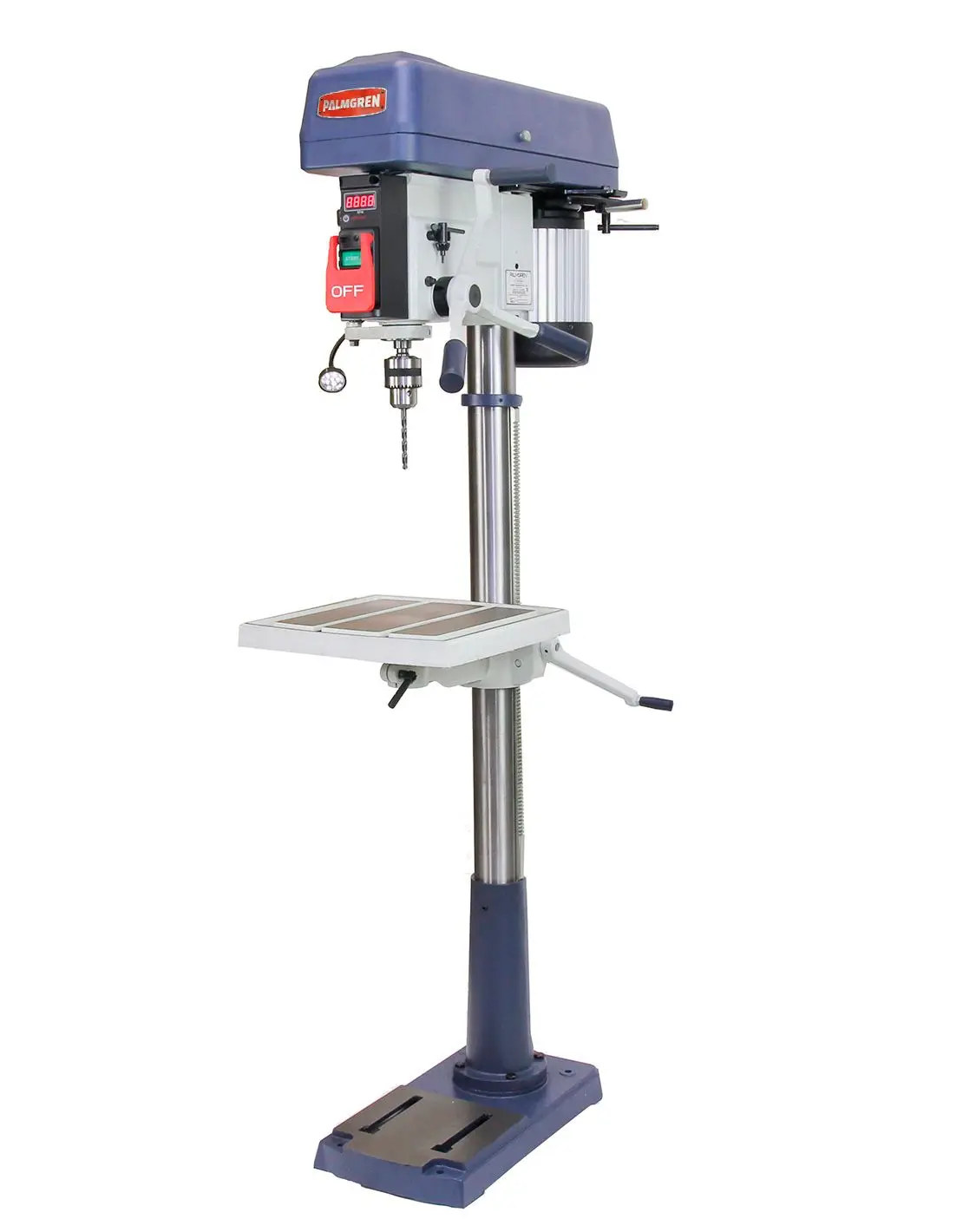

17" 16-Speed Floor Step Pulley Drill Press (240V 3 Phase)
Palmgren's step pulley drill presses are substantially constructed to provide a solid base for all your drilling operations, and offer a greater range of spindle speeds than any others in their class.
They have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications.
- Fully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operations
- Maximum spindle run out of 0.0005"
- Extended quill/spindle travel ideal for deep hole applications
- LED readout for spindle speeds
- Quick change vertical depth stop for accurate, repeatable feed length
- Includes chuck with key and arbor
- Rack and pinion table raiser
- Table tilts 45 degrees right and left and rotates 360 degrees around the column
- Front mounted industrial paddle type power switch
| Specification | Value |
|---|---|
| AMPS | 5 |
| Capacity Cast Iron | 7/8" |
| Country of Origin | CN |
| Drill Press Model | Floor Model |
| Drill Press Type | Step Pulley |
| Model Number | 80178 |
| Motor HP | 1 |
| Overall Dimensions (LxWxH) | 68" H x 15-1/2" W x 28" D |
| Phase | Three |
| RPM | 138 – 3476 |
| Spindle Taper | MT2/JT3 |
| Spindle Travel | 5 |
| Swing | 17" |
| Table Dimensions | 14-3/8" x 14-3/8" |
| Table Slots | 5/8" |
| Voltage | 240 |
| Warranty | 3 Year |
| UPC | 726896801780 |
| Unit of Measure | Each |
| Product Height (in) | 68 |
| Product Length (in) | 28 |
| Product Width (in) | 15.5 |
| Product Weight (lbs) | 216 |
