An auger with some serious bite. Born from over five decades of in the trenches engineering expertise and field experience. The pitched boring head plus, increased pitched and cupped flighting make your digging experience extra special.
Better penetration and ripping action, more aggressive in tougher soils. If that’s not enough, the power required to dig that ol’ hole in the ground is minimized. Means less stress on you and the digging machine. If you don’t like cleaning up the post dig mess, the cupped flighting produces cleaner holes with less spill back. Creates more time for you to do other things like dig more holes. You just may not want to stop. Finally, an auger with a silver lining. Engineered for maximum performance, taking daily abuse and extending service life. Same inventory can be used for both the 242H and 262H EPIC® hole diggers. Excellent for small hand-held hole diggers. Get real, get Bor-Max, it’s time to rip a hole a new one. Do it for fun, do it to gain more money. It’s up to you. Now you have a choice. Go for both if you like. Can you dig it?
Features/Benefits:
- 1.0 inch diameter round auger drive connection
- Increased flighting pitch minimizes power required
- Cupped flighting produces cleaner holes with less spill back
- Heavy-gauged, steel, helicoid flighting for added structural strength
- Heavy-walled, steel, axle to better withstand bending and torque loads

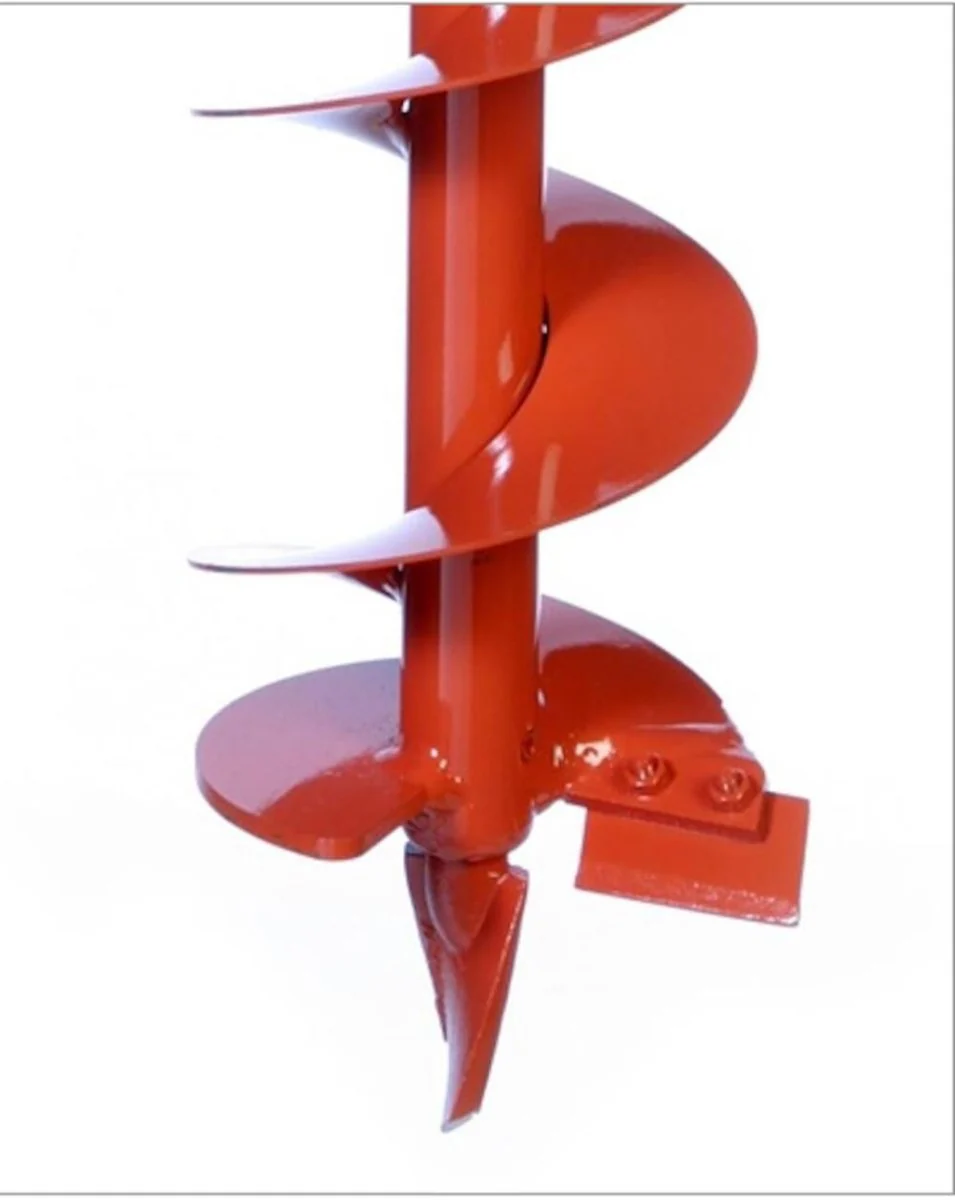

- Pitched, cast steel boring head for maximum penetration, strength & service life
- Cutting blade extends past flighting edge to minimize flighting wear & extend service life
Specifications
| Soil Classification Applications | |
|---|---|
| Soil Classification Applications | Smaller fencing, decks, landscaping & other similar projects in loam, sand, soft clay and granular rubble soil classifications |
| Auger | |
|---|---|
| Auger Drive Connection | 1.0 inch (25.4 mm) round |
| Auger Pin Connection | .375 inch (9.5 mm) diameter auger pin |
| Available Auger Diameter Range | 2.25 to 12.0 inches (57.2 to 304.8 mm). Select auger from table above for specific details |
| Auger Cutting Diameter | Select auger from table above for specific details |
| Effective Auger Digging Depth | 30.0 inches (762.0 mm) |
| Available Auger Extension | 15.0 inches (381.0 mm), plain tube-type |
| Flighting Thickness | .187 (4.7 mm) |
| Flighting Construction | Single pitch helicoid, full axle length, all diameter augers |
| Axle Diameter | 2.25 & 3.25 inch (57.2 & 82.6 mm) diameter augers: 1.25 inch (31.6 mm) 4.0 to 12.0 inch (101.6 to 304.8 mm) diameter augers: 1.5 inch (38.1 mm) |
| Boring Head | Cast steel boring head on 4.0 to 12.0 inch (101.6 to 304.8 mm), screw bit acts as boring head/cutting device on 2.25 & 3.25 inch (57.2 & 82.6 mm) diameter augers |
| Screw Bit | Field replaceable, alloy steel centering screw bit, heat treated for extended service life 2.25 inch (57.2 mm) diameter auger uses P302PAK2 screw bit only 3.25 inch (82.6 mm) diameter auger uses P801PAK3 screw bit only 4.0 to 12.0 inch (101.6 to 304.8 mm) diameter augers use SB26 screw bit only with integral 1.0 inch (25.4 mm) square drive lug. |
| Cutting Blade | Field replaceable, bolt retention, alloy steel cutting blade, cold forged & heat treated 4.0 to 12.0 inch (101.6 to 304.8 mm) diameter augers only |
| General | |
|---|---|
| Product Dimensions (L X W X H) | Select auger from table above for specific details |
| Product Weight | Select auger from table above for specific details |
| Compatible Product | 2.25 to 8.0 inch (57.2 to 203.2 mm) diameter augers for 242H & 262H EPIC® Series hole diggers 10.0 & 12.0 inch (254.0 to 304.8 mm) diameter augers for 262H EPIC® Series hole digger only |
