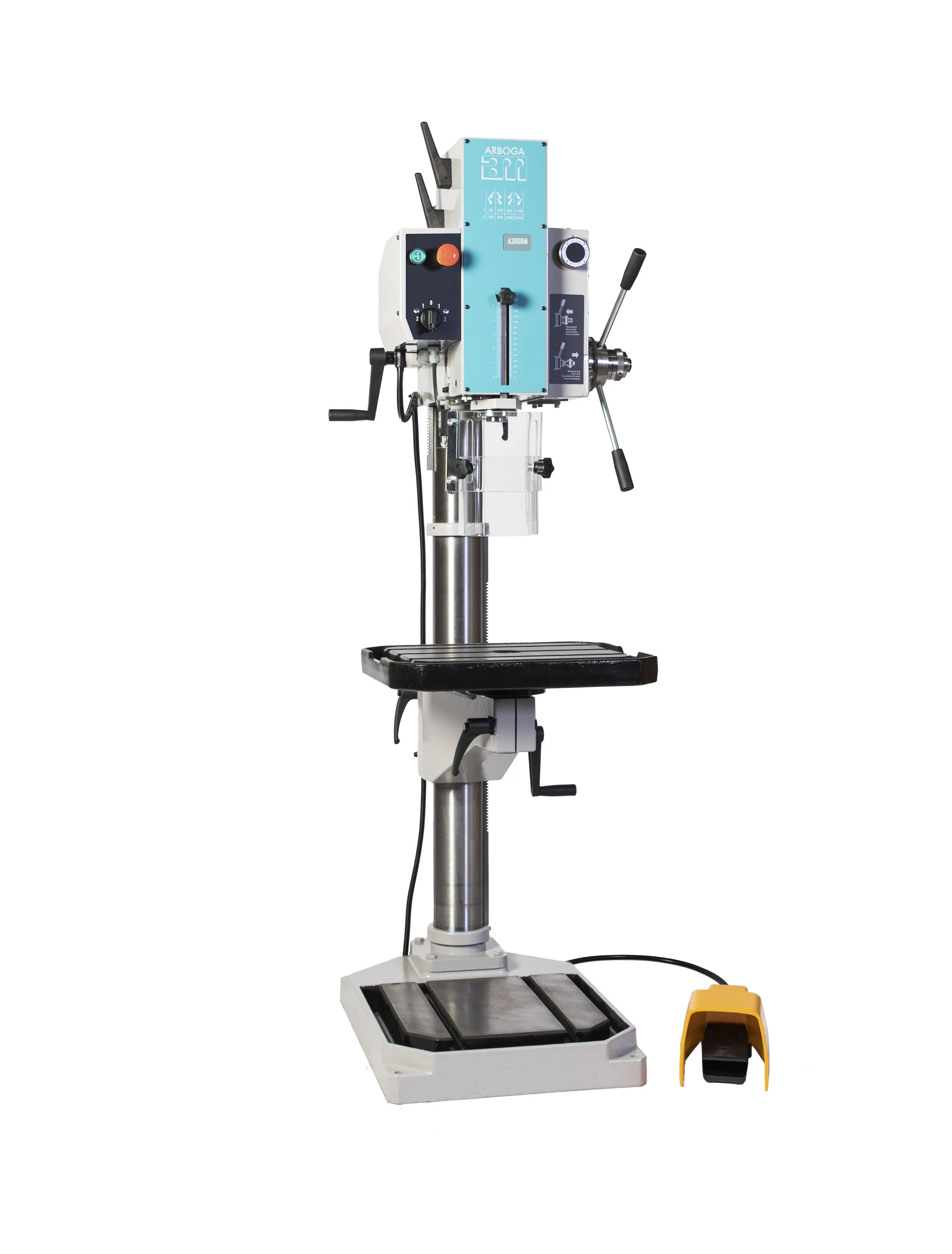

26" Gear Head Drill Press with Foot Reversing Switch & Power Feed (230V 3 Phase)
This premier all gear drive drill press combines power with precision to handle virtually any drilling application.
The gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower. Helical ground gears ensure positive, quite operation and make speed changes fast and easy. The wide speed range makes this the ideal drill for drilling large to small diameter holes fast and easy. Equipped with an all gear drive, mechanical clutch, spindle power feed for consistent feeding of the cutting tool through the workpiece.
- Inch/Metric depth stop
- 2 speed manual forward & reverse switch
- Foot reversing switch
- Head & table rotates 360 degrees around the column
- Machined & t-slotted table and base
- Quick release drill ejector
- Chuck guard
- No-volt release prevents spindle start up when power returns after shutdown
- 4" Palmgren drill press vise
- Drill chuck & arbor
- Made in Sweden
| Capacity Cast Iron | 1-1/4" |
| Capacity Steel | 1-1/8" |
| Column Diameter | 4-1/8" |
| Motor HP | 1.5–2 |
| Number of Spindle Speeds | 8 |
| Number of Table Slots | 3 |
| Overall Dimensions (LxWxH) | 18-3/4" x 26-3/4" x 74-1/2" |
| Phase | Three |
| Power Feed | Yes |
| Spindle Taper | MT3 |
| Spindle Travel | 5-7/8" |
| Swing | 25" |
| Table Dimensions | 20" x 15-3/4" |
| Table Slot Size | 1" |
| Voltage | 230 |
| Warranty | 5 Year |
| UPC | 726896802503 |
| Product Weight (lbs) | 594 |
Â
Manual
Original: $12,105.00
-65%$12,105.00
$4,236.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This premier all gear drive drill press combines power with precision to handle virtually any drilling application.
The gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower. Helical ground gears ensure positive, quite operation and make speed changes fast and easy. The wide speed range makes this the ideal drill for drilling large to small diameter holes fast and easy. Equipped with an all gear drive, mechanical clutch, spindle power feed for consistent feeding of the cutting tool through the workpiece.
- Inch/Metric depth stop
- 2 speed manual forward & reverse switch
- Foot reversing switch
- Head & table rotates 360 degrees around the column
- Machined & t-slotted table and base
- Quick release drill ejector
- Chuck guard
- No-volt release prevents spindle start up when power returns after shutdown
- 4" Palmgren drill press vise
- Drill chuck & arbor
- Made in Sweden
| Capacity Cast Iron | 1-1/4" |
| Capacity Steel | 1-1/8" |
| Column Diameter | 4-1/8" |
| Motor HP | 1.5–2 |
| Number of Spindle Speeds | 8 |
| Number of Table Slots | 3 |
| Overall Dimensions (LxWxH) | 18-3/4" x 26-3/4" x 74-1/2" |
| Phase | Three |
| Power Feed | Yes |
| Spindle Taper | MT3 |
| Spindle Travel | 5-7/8" |
| Swing | 25" |
| Table Dimensions | 20" x 15-3/4" |
| Table Slot Size | 1" |
| Voltage | 230 |
| Warranty | 5 Year |
| UPC | 726896802503 |
| Product Weight (lbs) | 594 |
