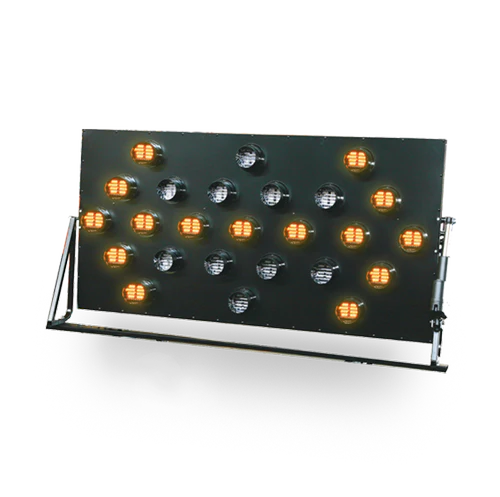

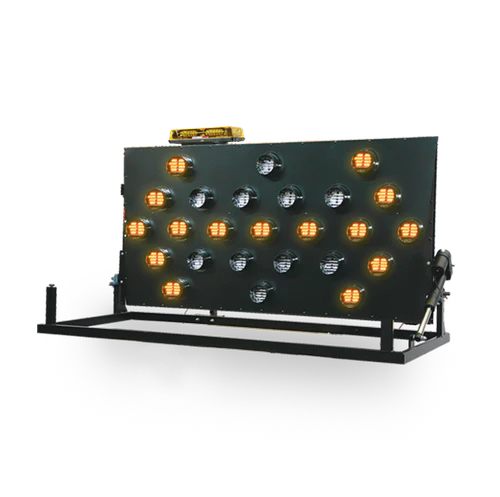

36" x 72" Arrow Board with 25 Lamp
Directional Display™ arrow board represents the latest technical advances in vehicle-mounted traffic control.
Designed for performance and reliability, the Low-Profile Directional Display™ delivers advanced arrow board functionality in a compact, vehicle-mounted design ideal for modern traffic control applications.
The slim-line control measures just 1 inch thick, making it ideal for mounting on crowded dashboards. An intelligent battery control system continuously monitors the vehicle battery and automatically shuts the panel off to prevent excessive discharge.
An optional auto-rotate light bar system simplifies installation by rotating the light bar into position when the panel is raised. Whether the panel is in the up or down position, the light bar remains clearly visible at all times.
Features
- Low-profile, vehicle-mounted directional display design
- Slim-line control unit measuring 1 inch thick
- Sealed, touch-sensitive membrane control switches
- Manual and automatic dimming modes
- Built-in low-voltage shutoff to protect vehicle battery
- LED battery condition indicator
- Test mode illuminates all lamps to identify burned-out lamps
- Optional auto-rotate light bar for simplified mounting and visibility
Specifications
| Control System | Sealed, touch-sensitive membrane switches Power ON/OFF with LED indicator Manual and automatic dimming Automotive style 20A fuses with spare replacements LED mode display LED battery condition indicator Built-in low-voltage shutoff Test mode for lamp verification Remote keypad size: 3 Ă— 7 Ă— 1 inches Main control mounts under seat or remote location |
| Automatic Dimming | Full lamp voltage above approximately 100 foot-candles. Below 20 foot-candles, lamp voltage is controlled by a photocell mounted beneath the panel to reduce glare from headlights and street lighting. |
| Manual Dimming | Intensity set by the user regardless of ambient light conditions |
| Cables | Standard power cable: 9 feet Standard control cable: 15 feet Optional cable lengths available |
| Electric Lift | 12 VDC high-torque motor with automatic clutch |
| Display Panel | Aluminum front and rear panels Extruded aluminum perimeter frame and internal vertical supports 4-inch amber PAR 36 LED lamps with high brightness and low power consumption Three rear indicator lamps High-impact plastic lamp hoods with four indexing mounting holes Non-glare black powder-coated finish Integrated photo resistor for ambient light sensing |
Original: $2,992.00
-65%$2,992.00
$1,047.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Directional Display™ arrow board represents the latest technical advances in vehicle-mounted traffic control.
Designed for performance and reliability, the Low-Profile Directional Display™ delivers advanced arrow board functionality in a compact, vehicle-mounted design ideal for modern traffic control applications.
The slim-line control measures just 1 inch thick, making it ideal for mounting on crowded dashboards. An intelligent battery control system continuously monitors the vehicle battery and automatically shuts the panel off to prevent excessive discharge.
An optional auto-rotate light bar system simplifies installation by rotating the light bar into position when the panel is raised. Whether the panel is in the up or down position, the light bar remains clearly visible at all times.
Features
- Low-profile, vehicle-mounted directional display design
- Slim-line control unit measuring 1 inch thick
- Sealed, touch-sensitive membrane control switches
- Manual and automatic dimming modes
- Built-in low-voltage shutoff to protect vehicle battery
- LED battery condition indicator
- Test mode illuminates all lamps to identify burned-out lamps
- Optional auto-rotate light bar for simplified mounting and visibility
Specifications
| Control System | Sealed, touch-sensitive membrane switches Power ON/OFF with LED indicator Manual and automatic dimming Automotive style 20A fuses with spare replacements LED mode display LED battery condition indicator Built-in low-voltage shutoff Test mode for lamp verification Remote keypad size: 3 Ă— 7 Ă— 1 inches Main control mounts under seat or remote location |
| Automatic Dimming | Full lamp voltage above approximately 100 foot-candles. Below 20 foot-candles, lamp voltage is controlled by a photocell mounted beneath the panel to reduce glare from headlights and street lighting. |
| Manual Dimming | Intensity set by the user regardless of ambient light conditions |
| Cables | Standard power cable: 9 feet Standard control cable: 15 feet Optional cable lengths available |
| Electric Lift | 12 VDC high-torque motor with automatic clutch |
| Display Panel | Aluminum front and rear panels Extruded aluminum perimeter frame and internal vertical supports 4-inch amber PAR 36 LED lamps with high brightness and low power consumption Three rear indicator lamps High-impact plastic lamp hoods with four indexing mounting holes Non-glare black powder-coated finish Integrated photo resistor for ambient light sensing |
