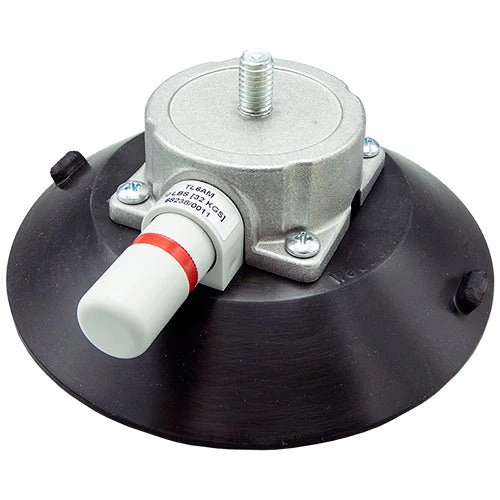

Provides a reliable, temporary mounting point for equipment, without marking or damaging most surfaces.

Features & Benefits:

• Eliminates the need for drilling holes when mounting equipment.
• Red-line indicator warns user of any significant vacuum loss.
• Supplied with pad protector to prevent damage.

Options:

• Other stud lengths and threads available

SKU	91357
Connection Point	5/8" Long 3/8-16 Threaded Stud
Ideal Uses	Mounting equipment on smooth, nonporous surfaces
Load Capacity
Height of Mounting Platform (not including stud)	1-21/32" [4 cm]
Allowable Surface Curvature	Flat / Curved
Minimum Radius for Curved Loads	12" [305 mm]
Material and Ambient Temperature Range	0° F [-18° C] — 120° F [49° C]
Pad Diameter	6" [15 cm]
Pad Model	TL6
Rubber Type	Standard
