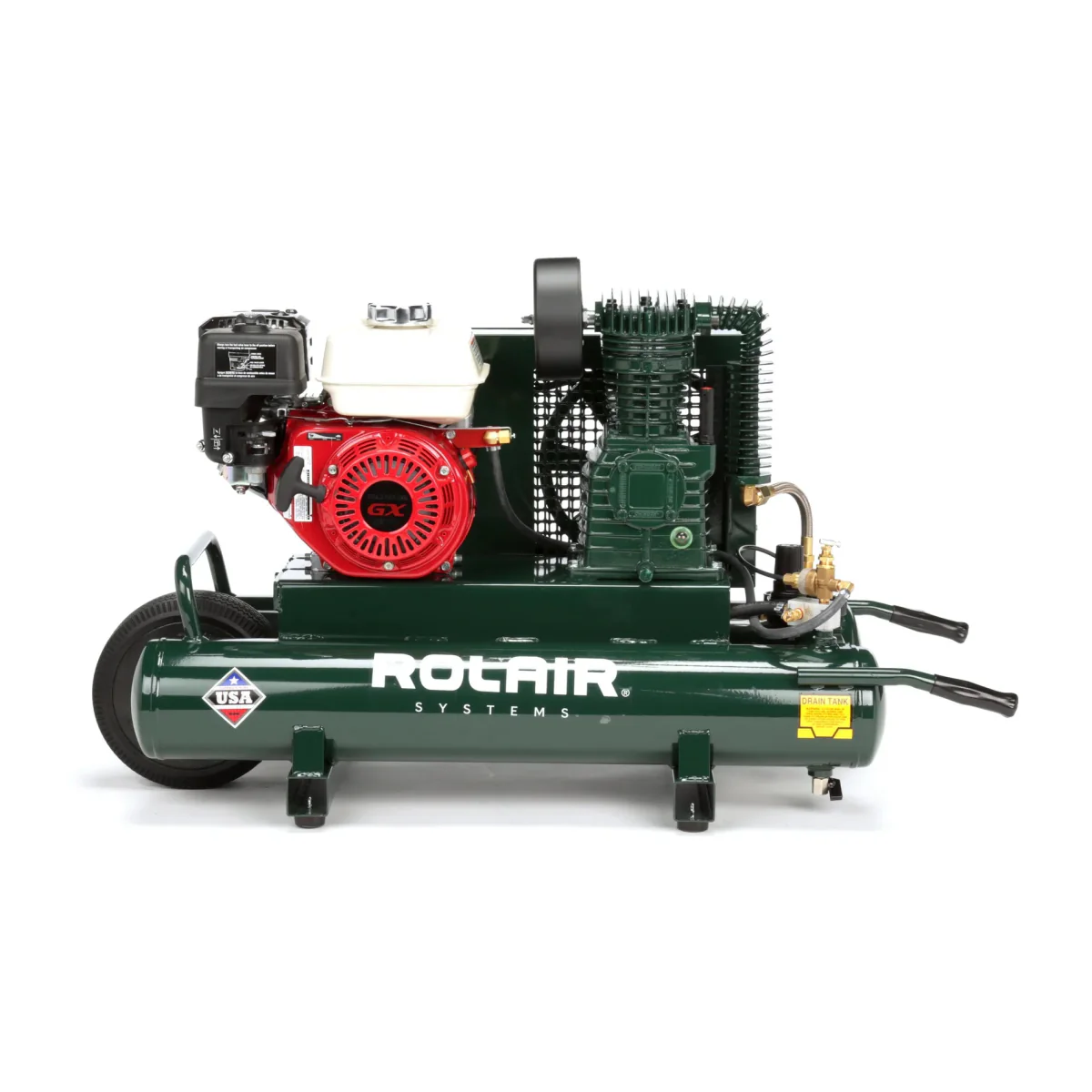

6590HK18 Wheeled Gas Air Compressors
Wheeled Gas Air Compressors
The 6590HK18, which was engineered as an upgrade to the 4090HK17, delivers up to 50% more CFM by comparison. Delivering 13.8 CFM @ 90 PSI, this unit incorporates a 196 cc (GX200) Honda engine with automatic idle-down, for increased fuel efficiency, and an atmospheric unloading system to prevent oil consumption.
Optional Equipment: Filter-Regulator-Lubricator Sets
ABOUT THE PUMP
- Heavy-Duty
- Single Stage
- Cast-Iron Twin Cylinders
- Ball Bearings
- Splash Lubricated
- Cast-Iron Valve Plates with Swedish Lamellar Reed Valves
- Aluminum Alloy Connecting Rods with Automotive-Style Inserts
- Multi-Finned 11" Flywheel
- Oil Sight Gauge
ABOUT THE ENGINE
- 196 cc (6.5 HP) Honda 4 Cycle
- Complete Die Cast Aluminum Alloy with Cast-Iron Sleeve
- Overheard Valves
- Retractable Starter
- On/Off Switch
- Splash Lubricated
- Low Oil Shutdown
STANDARD EQUIPMENT
- Pressure Gauge 0-200 in 5 lb. Graduations
- Automatic Pilot Valve Operation
- Industrial Flexible Discharge Hose
- Automatic Idle Control for Economy and Long Service Life
- Intake Filter with Silencer and Replaceable Element
- Schmidt Belt Tightening Device
- Air-Cooled Aftercooler
- Totally Enclosed Steel Belt Guard
- Safety Relief Valve
SPECIFICATIONS
| HORSE POWER | 196 cc (6.5 HP) |
| CFM DISPLACED | 17.9 CFM |
| CFM DELIVERED | 13.8 CFM @ 90 PSI |
| LUBRICATION TYPE | Splash Lubrication |
| PUMP OIL CAPACITY | 34 oz. |
| REED VALVE SYSTEM | Yes (Standard) |
| NUMBER OF CYLINDERS | 2 |
| TANK CAPACITY | 9 Gallons |
| L X W X H | 46"x19"x28" |
| DECIBEL RATING | Unavailable |
| COUNTRY OF ORIGIN | Compressor Origin.pdf |
| SHIPPING WEIGHT | 190 lb. |
| SHIPPING DIMENSIONS (L X W X H) | 47" x 22" x 36" |
DOCUMENTS
6590HK18 Showroom Sheet
6590HK18 Schematic
6590HK18 Owner's Manual
