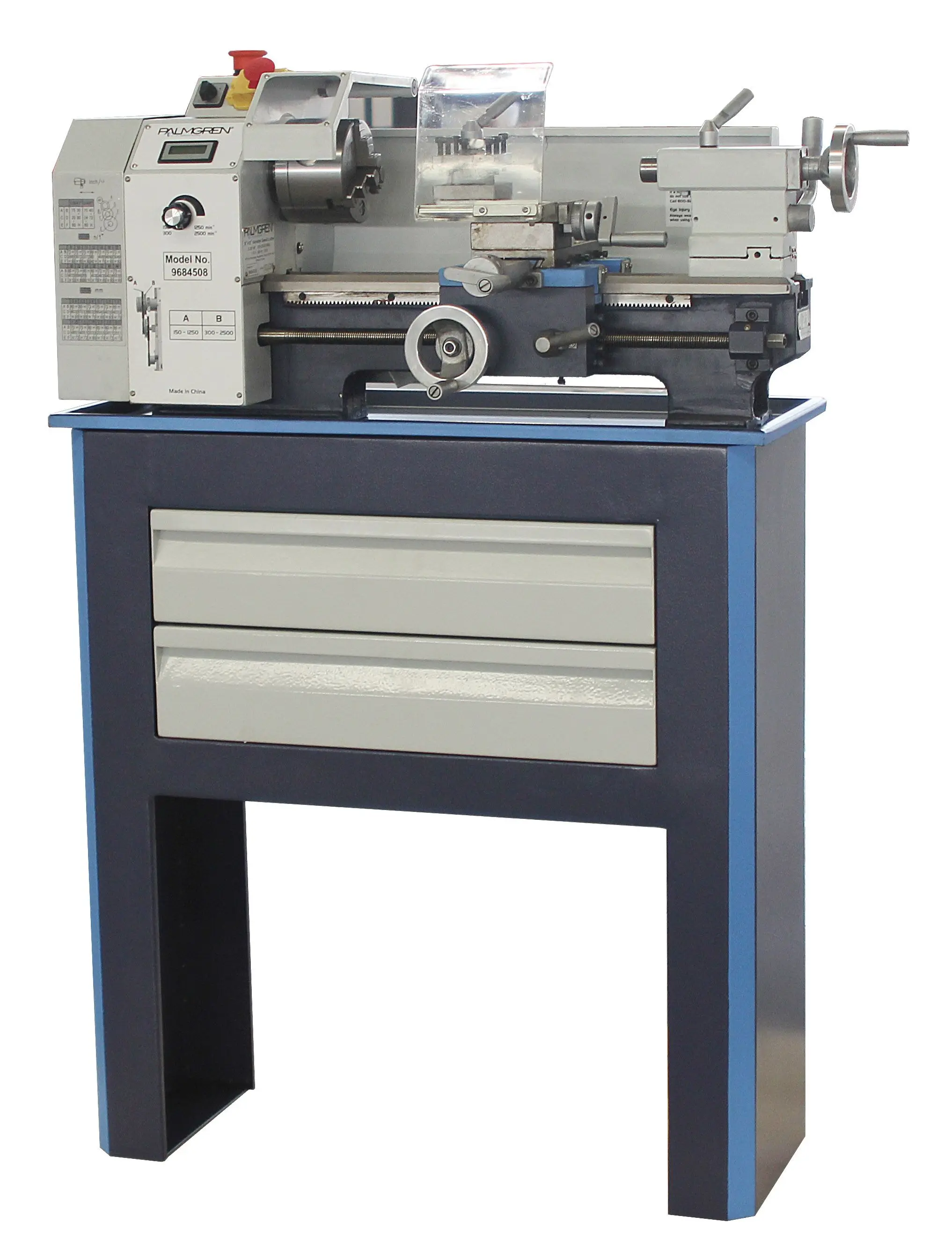

Palmgren's 8" bench model engine lathe delivers the precision, power and versatility to handle a wide range of turning operations normally found in much larger machines.

Heavy cast construction, smooth power transmission with helical gears, hardened and ground ways all designed to give you years of trouble-free, precise turning. All Palmgren lathes are built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The bench lathe is the right choice for turning small metal parts and is used in proto type shops, home machinists, jewelry manufacturing, tool rooms, fabrication shops and maintenance shops.

• EACH LATHE COMES STANDARD WITH: 3 jaw lathe chuck
• Safety chuck and tool post guards
• 4 way tool post
• Centers
• Chip tray
• Precision thrust and ball bearings in the head stock

Specification	Value
Bed Width	3-15/16"
Carriage Travel	10-1/2"
Compound Travel	2-1/4"
Country of Origin	CN
Cross Slide Travel	4"
Distance Between Centers	12"
Lathes Type	Bench Top
Longitudinal Feed Rates	0.004 to 0.0008
Motor HP	7/8
Number of Spindle Speeds	Variable
Optional Accessories	Item # 9684499 - Steel floor stand
Overall Dimensions (L x W x H)	33" x 16-3/4" x 14-1/4"
Phase	Single
Spindle Bore	3/4"
Swing Over Bed	8"
Tailstock Taper	MT 2
Tailstock Travel	2"
Thread Range (In.)	8" x 44"
Thread Range (mm)	0.2 to 4.0
Voltage	115
Warranty	3 Year
UPC	726896845081
Unit of Measure	Each
Product Weight (lbs)	135
