Single Pad Vacuum Lifter designed to used compressed air for lifting porous and non-porous objects

Features of Vacuum Lifter:

Vacuum lifter, model AHVL 500 is powered by venturi vacuum generator, which requires a source of compressed air in order to function but require no electricity. The vacuum generator has no moving parts and therefore no lubrication is required.

• Quick change vacuum pad system.
• Slider valve with on & off position for the attachment of material to vacuum pads and release of material from vacuum pads.
• Acoustic alarm system. Independently powered by small a 9 V rechargeable battery.
• Vacuum gauge for visual warning of low vacuum.

Model	Working load limit	Net weight	Gross Weight	Package Dimension
AHVL500	20.5 x 5.5: 265 lbs 20.5 x 6.3: 397 lbs 20.5 x 8.7: 639 lbs 20.5 x 12.6: 1058 lbs	63 lbs	75 lbs	22 x 13.7 x 11.4

Some of Aardwolf Vacuum Lifter Models:

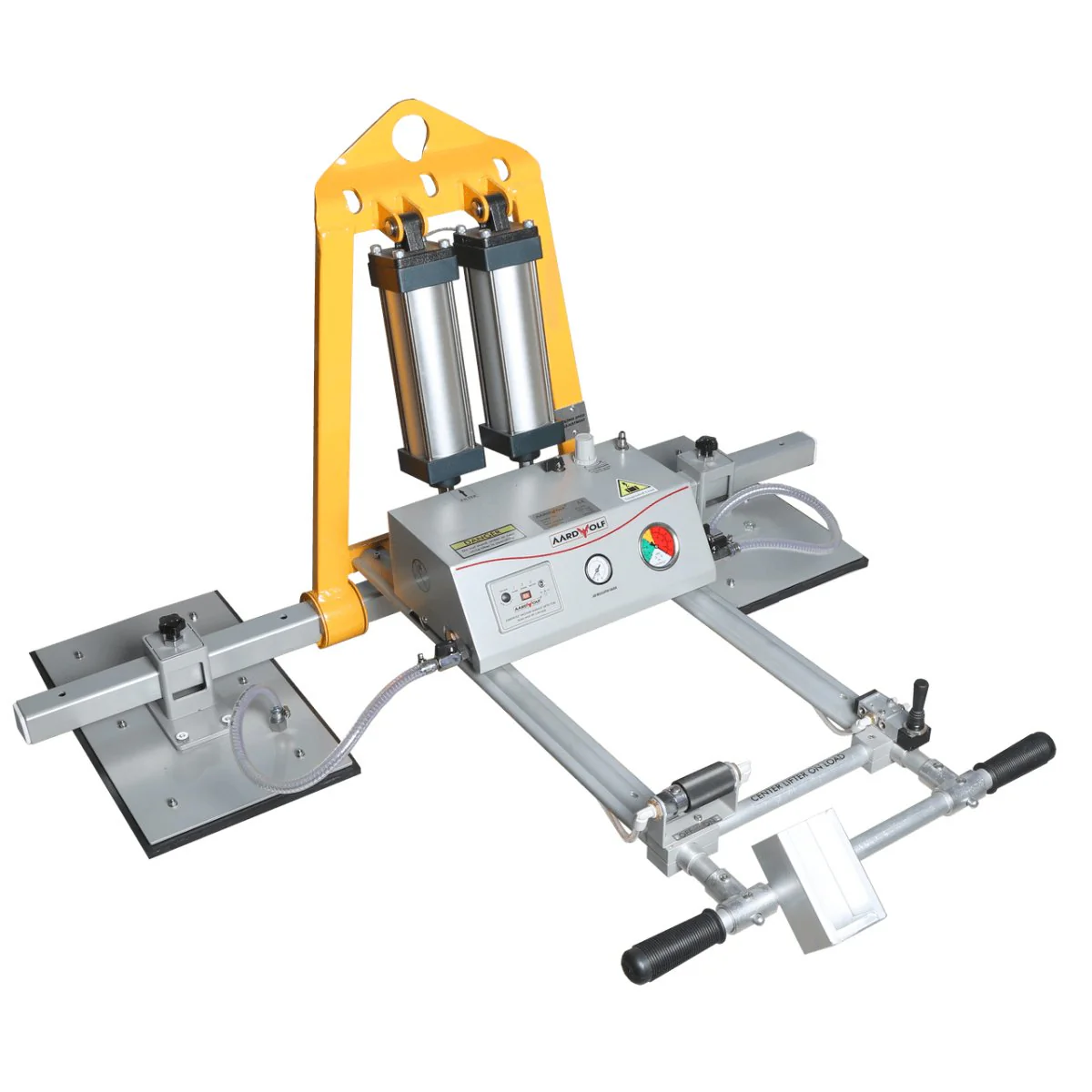

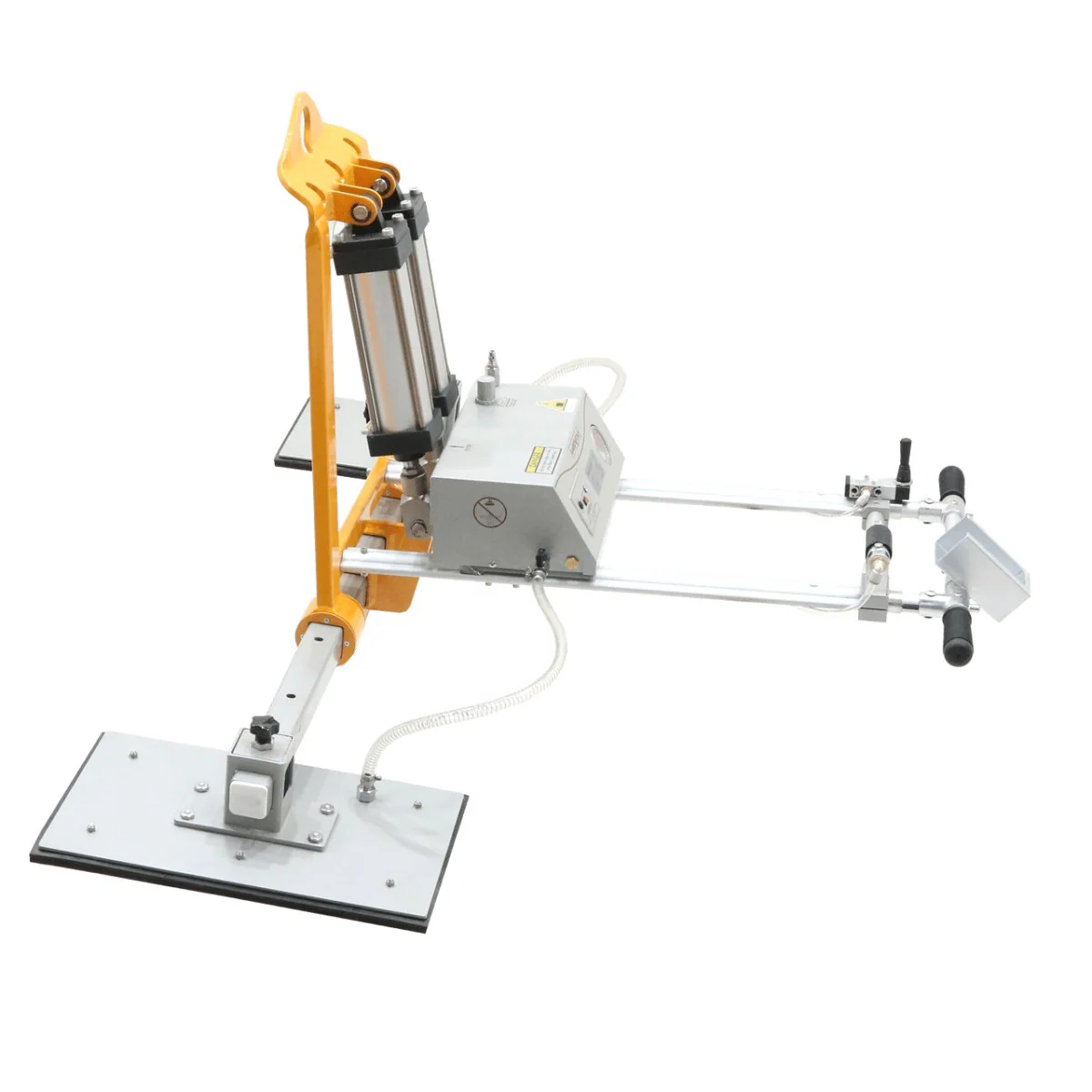

AVLP 2 - 2 Pad Vacuum Lifter

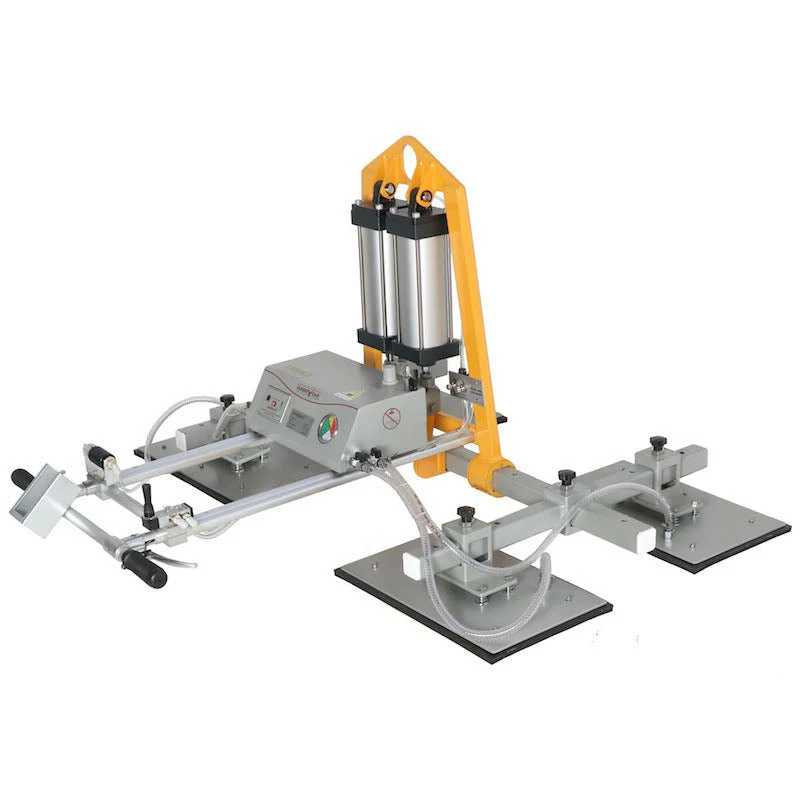

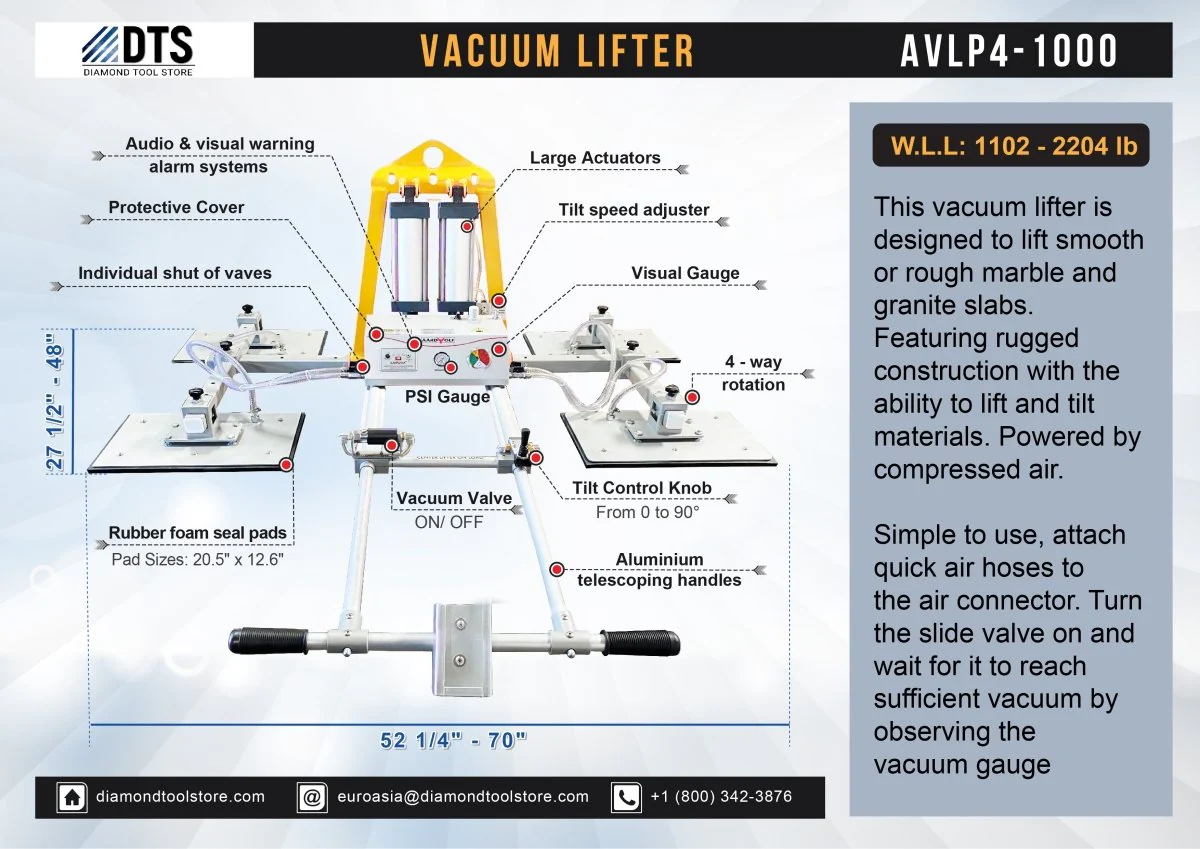

AVLP 4 - 4 Pad Vacuum Lifter

ABL380 - Block Lifter

ABL1000 - Block Lifter

ARGL0500DC - Vacuum Glass Lifter

AHVL500 - Handy Vacuum Lifter
