ABACO VACUUM LIFTER PRO
Abaco is a trusted manufacturer of material-handling equipment for the stone, glass, and construction industries.

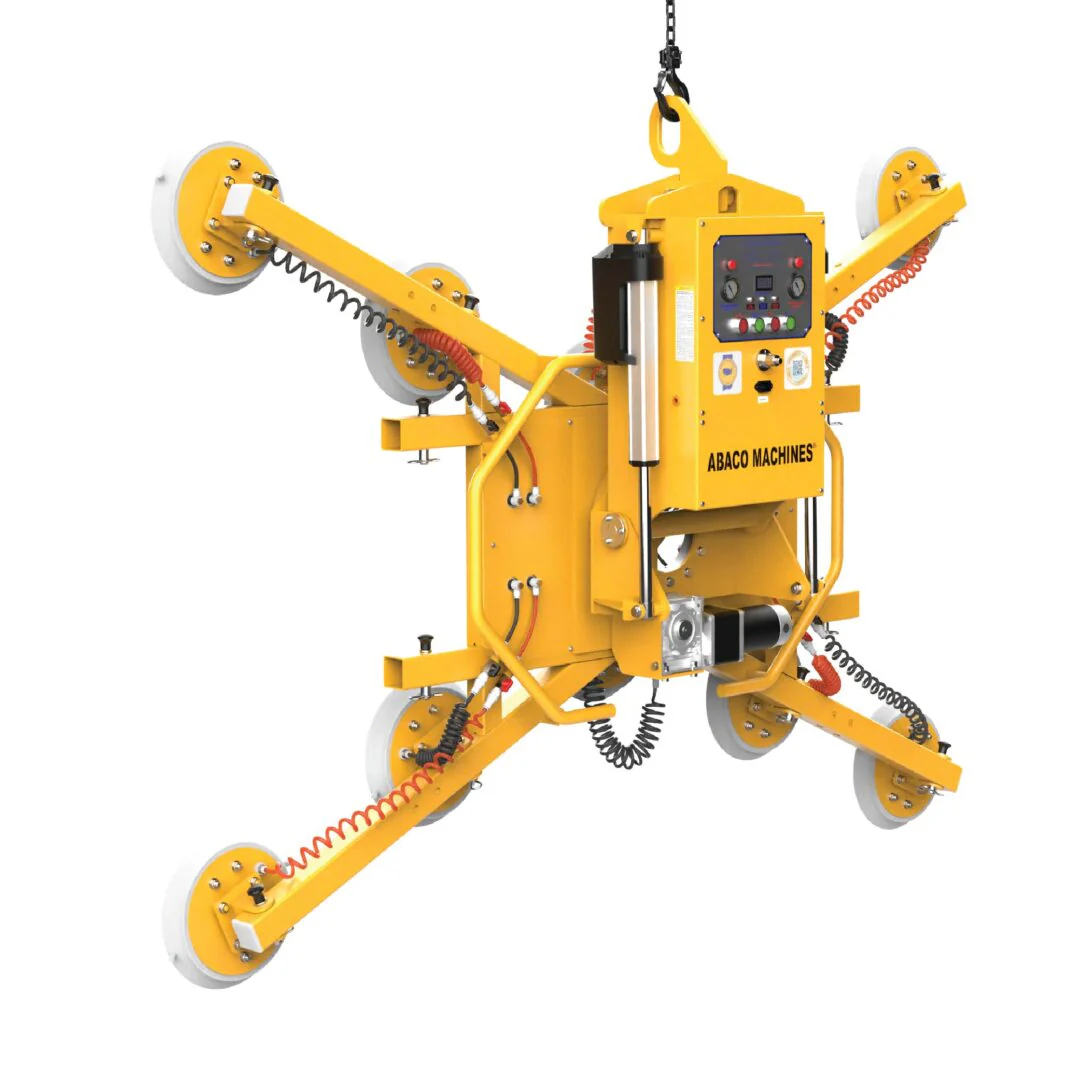

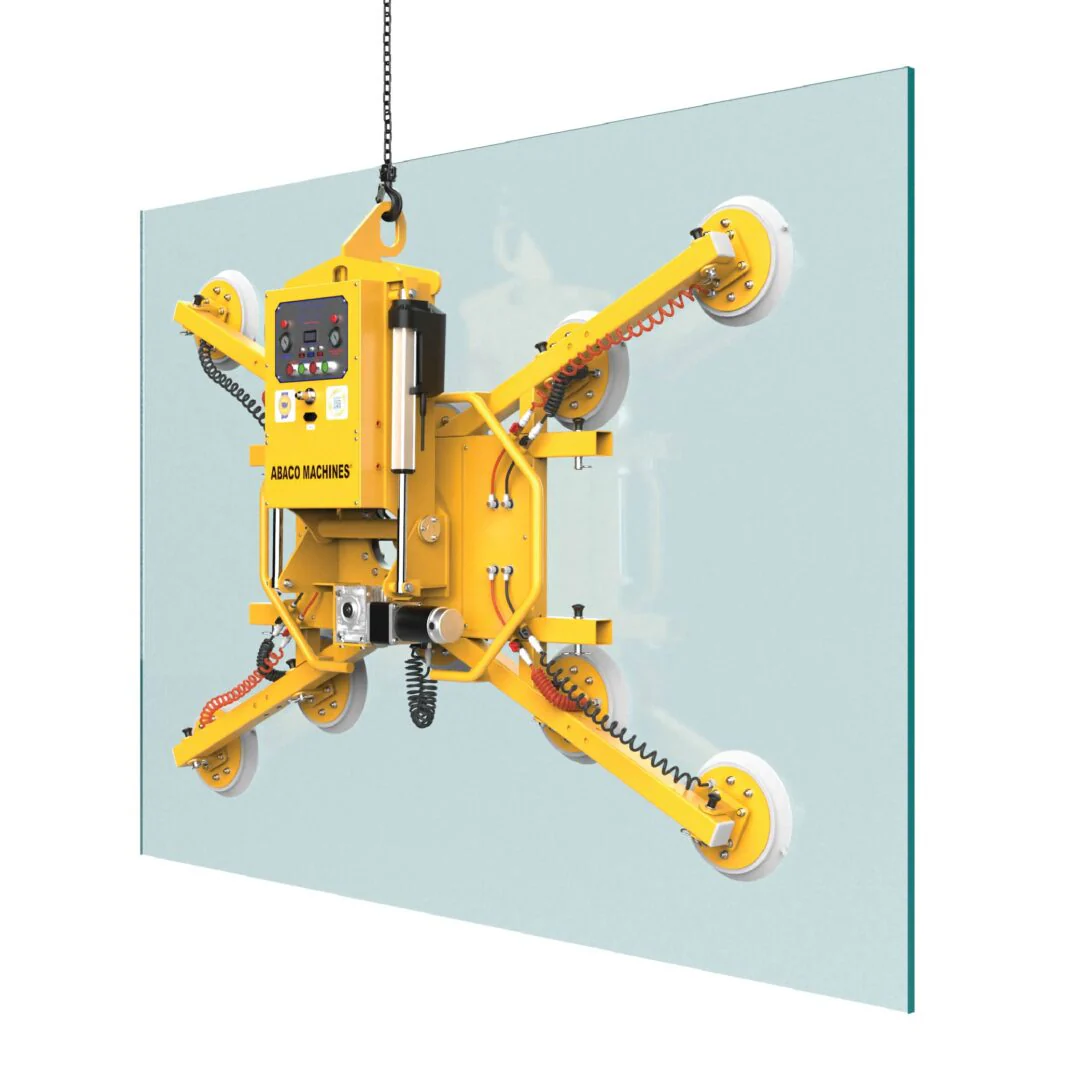

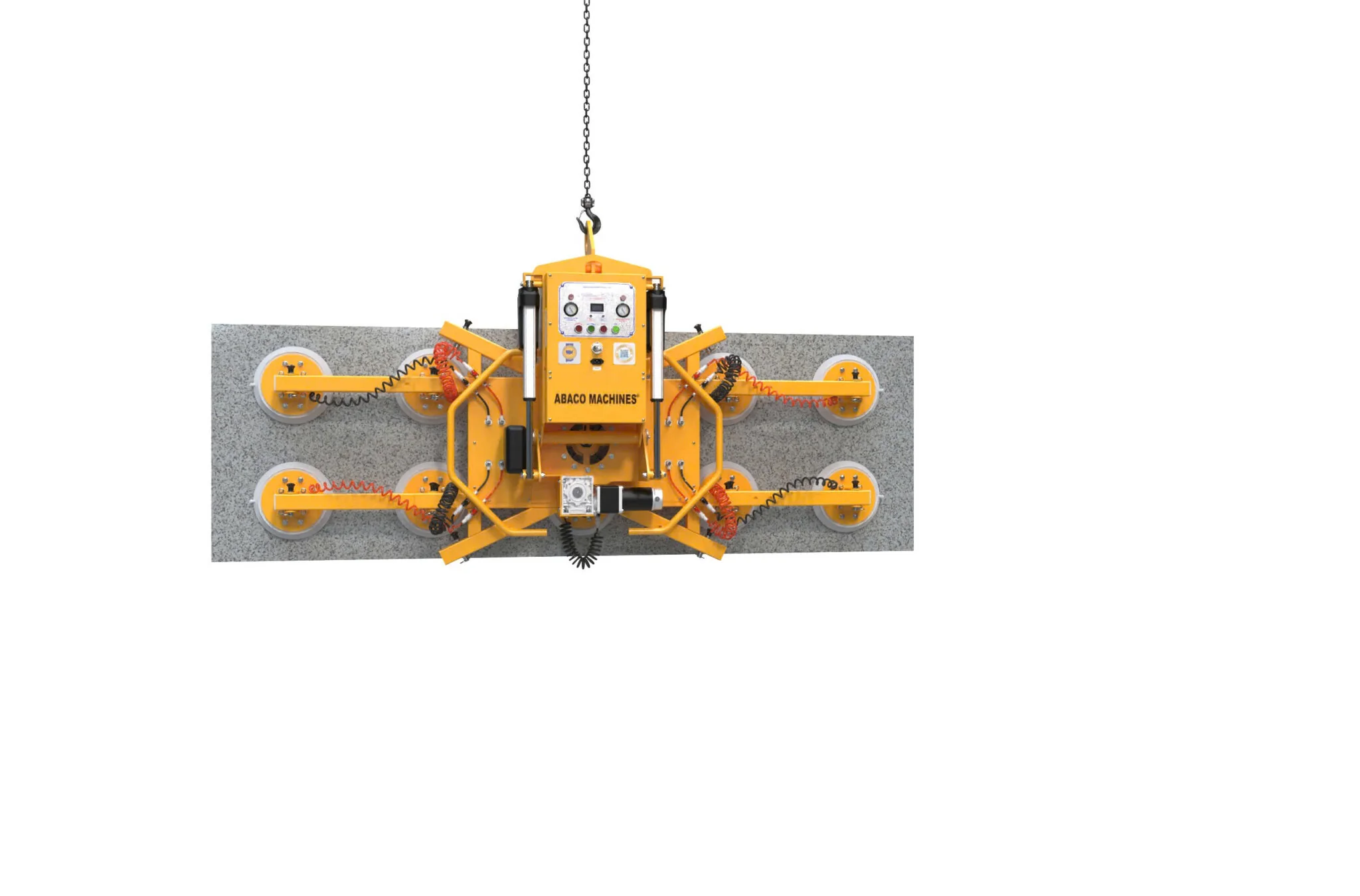

Abaco Vacuum Lifter Pro delivers an advanced lifting solution that makes handling and installing large glass sheets effortless.
With a lifting capacity of up to 1000 kg, Abaco Vacuum Lifter Pro ensures safe, smooth, and reliable performance across every project.
Key Features of the Abaco Vacuum Lifter Pro
- Dual vacuum systems operate independently for continuous, safe performance, even if one system encounters an issue.
- Wireless remote control ensures safe operation and maximum flexibility by allowing full control from a distance.
- 10 adjustable vacuum pads distribute suction evenly to hold fragile glass securely.
- Vacuum pads can be detached and repositioned to fit various glass sizes.
- Vacuum Lifter supports full 360° rotation and tilting between vertical and horizontal positions via electric cylinders.
- Battery-powered for flexible use anywhere, without the need for external electricity or air supply.
- Visual and audible alarms significantly enhance operational safety.
- Air-blow release allows quick, gentle detachment without damaging the glass.Â
Technical Specifications of Abaco Vacuum Lifter Pro
Take your glass installation to the next level with the Vacuum Lifter — where precision, safety, and superior performance converge.
DVL1000-PRO Specifications
| Category | Specification |
|---|---|
| Model | DVL1000-PRO |
| Length | 86 Âľ in (2,204 mm) |
| Width | 61 â…› in (1,552 mm) |
| Height | 18 9/16 in (471 mm) |
| Net Weight | 598.4 lbs (272 kg) |
| Work Load Limit | 2,200 lbs (1,000 kg) |
| Vacuum Pad Diameter | 11 13/16 in (300 mm) |
| Number of Vacuum Pads | 10 pcs |
| Min Sheet Width | 35 7/16 – 66 15/16 in (900 – 1,700 mm) |
| Min Sheet Length | 94 1/2 – 106 5/16 in (2,400 – 2,700 mm) |
| Rotate Angle | 360° |
| Tilt Angle | 90° |
| Battery Capacity | 24VDC – 30Ah |
| Power (USA) | 110V AC |
| Power (International) | 220V AC |
Why choose Abaco Machines USA?
Abaco is proud to be a professional and innovative company providing effective stone and glass industry solutions. Our certification standards, experience, and friendly customer service always offer the best product and support.
- Outstanding customer service
- 1-year warranty on all products
- Competitive pricing with high-quality products
- Product customization serviceÂ
