Diesel powered articulating boom lifts for precise position and extreme flexibility.

Comply with ANSI/CSA Standard

• 660lb platform capacity for higher efficiency
• Build-in multiple pressure control leveling system to enhance stability
• Precise load sensing system to improve overload safety operations
• Integrated with rotary reducer to enhance rotation stability
• Hostile Kits available for dusty working environment
• Deadweight Lowering System for smooth operation and energy efficiency

Size

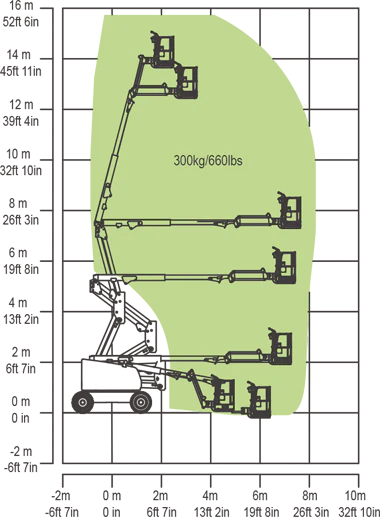

Work Height	51ft 10in
Platform Height	45ft 3in
Horizontal Outreach	27ft 3in
Up and Over Height	24ft 9in
A - Stowed Length	21ft 7in
B - Stowed Width	7ft 7in
C - Stowed Height	7ft 5in
D - Platform Length	6ft
E - Platform Width	2ft 6in
Jib Length	4ft 1in
F - Wheelbase	7ft 9in
G - Ground Clearance	1ft 5in



Performance

Platform Capacity	660 lb.
Drive Speed	4.23 mph
Gradeability	45% (24°)
Axles Oscillation	4in
Turning Radius (Inside)	6ft 9in
Turning Radius (Outside)	15ft 8in
Turntable Swing	355° non-continuous
Platform Rotation	±90°
H-Tail Swing	0
Max. Wind Speed	28mph



Power

Diesel Engine	Kubota V2403 36kw/2600rpmKubota V2403 36.8kw/2700rpm (EU V)
Fuel Tank Capacity	17.2 (us gal)
Auxiliary Power	12V
Control Voltage	12V
Hydraulic System Capacity	39.6 (us gal)
Hydraulic Tank Capacity	20.1 (us gal)
Drive	4WD



tire

Type	315/55 D20 Foam-filled Tires 33×12-20 Solid Tires



Weight

Gross

15653 lb.
