BCF 1080 Plate Compactor
Bartell forward plates are innovative, hard-hitting, and low maintenance.

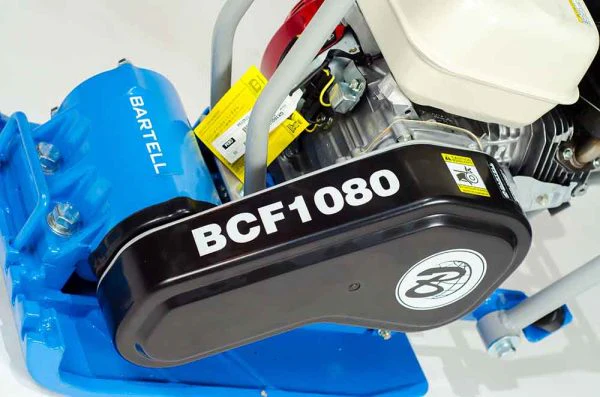

The BCF1080 is the smallest compactor that Bartell offers and is perfect for light compaction applications. Because of its size, the BCF1080 Forward Plate Compactor can be moved easily around the job site.
- Robust throttle control mounted on handle for safe and convenient operator control
- Anti-vibration handle
- Folding handle for compact storage
- Retractable wheels flip down for built-in mobility around the job-site
- Integrated lifting bale for safe loading and unloading
- Straight-edge plate design leaves no unreachable margins
- Sealed housing keeps debris from interfering with the belt
- Optional urethane mat protects pavers and slabs from scratches and breakage
Spec Sheet
| Engine | Honda GX160, 4.8hp (3.6kW) |
|---|---|
| Compaction Force | 2381 lbf, 10.5 kN, 1080 kgf |
| Max Travel Speed | 82'/min (25m/min) |
| Length | 28" (711mm) |
| Width | 16" (406mm) |
| Height | 23" (584mm) |
| Weight | 137 lbs (62kg) |
| Plate Size | 14" x 22" (35 x 55cm) |
Select BCF 1080 Plate Compactor Options
From $728.00
Original: $2,080.00
-65%BCF 1080 Plate Compactor—
$2,080.00
$728.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Bartell forward plates are innovative, hard-hitting, and low maintenance.
The BCF1080 is the smallest compactor that Bartell offers and is perfect for light compaction applications. Because of its size, the BCF1080 Forward Plate Compactor can be moved easily around the job site.
- Robust throttle control mounted on handle for safe and convenient operator control
- Anti-vibration handle
- Folding handle for compact storage
- Retractable wheels flip down for built-in mobility around the job-site
- Integrated lifting bale for safe loading and unloading
- Straight-edge plate design leaves no unreachable margins
- Sealed housing keeps debris from interfering with the belt
- Optional urethane mat protects pavers and slabs from scratches and breakage
Spec Sheet
| Engine | Honda GX160, 4.8hp (3.6kW) |
|---|---|
| Compaction Force | 2381 lbf, 10.5 kN, 1080 kgf |
| Max Travel Speed | 82'/min (25m/min) |
| Length | 28" (711mm) |
| Width | 16" (406mm) |
| Height | 23" (584mm) |
| Weight | 137 lbs (62kg) |
| Plate Size | 14" x 22" (35 x 55cm) |
