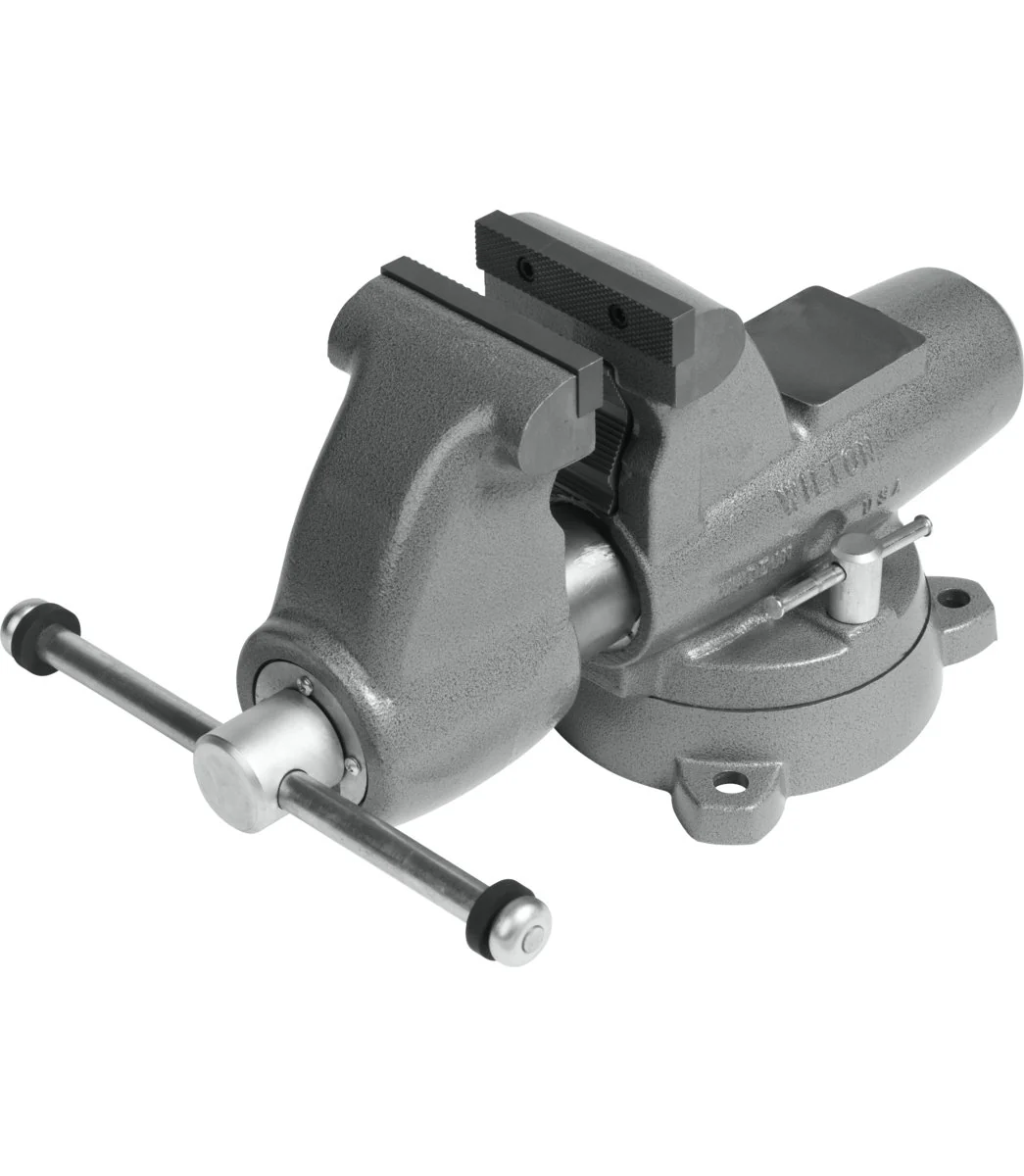

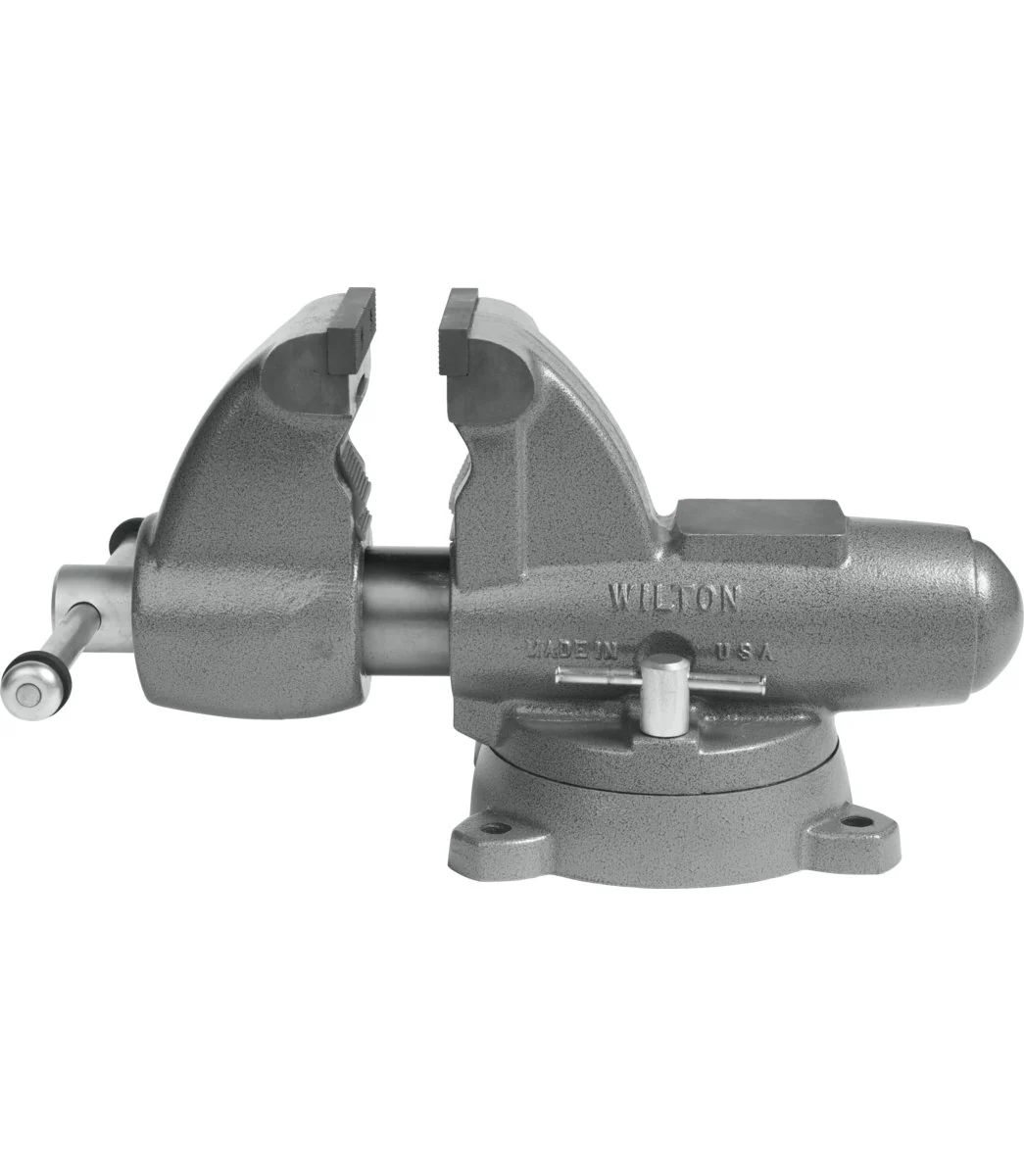

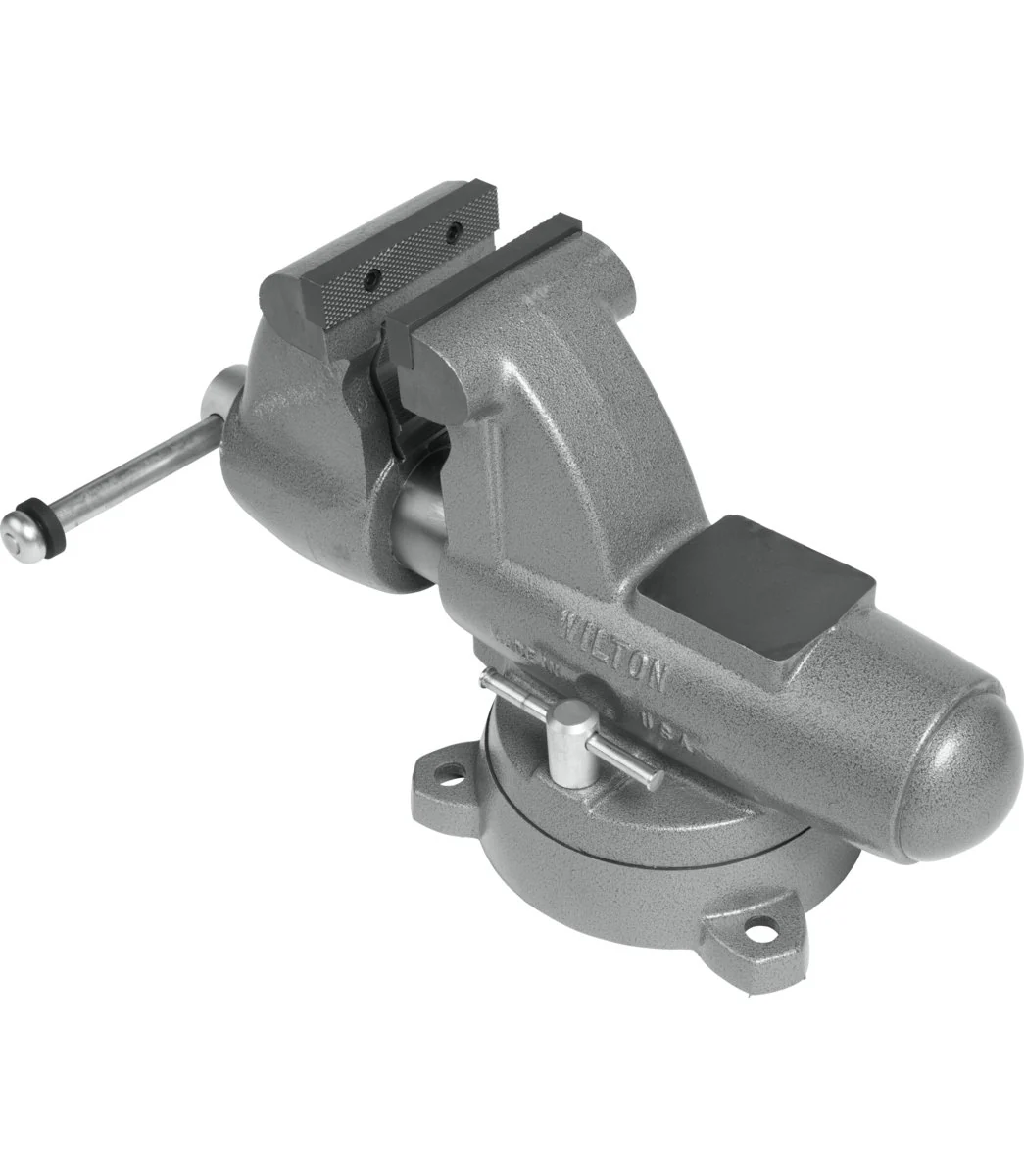

C-2 Pipe and Bench Vise, 5" Jaw Width, 7" Max Jaw Opening, 5-5/16" Throat Depth
Details
Proudly made in the USA, the Combination Pipe and Bench round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut, the Combination Pipe and Bench round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Combination Pipe and Bench vise is equipped with main jaws, pipe jaws and a machined anvil work surface.
Features

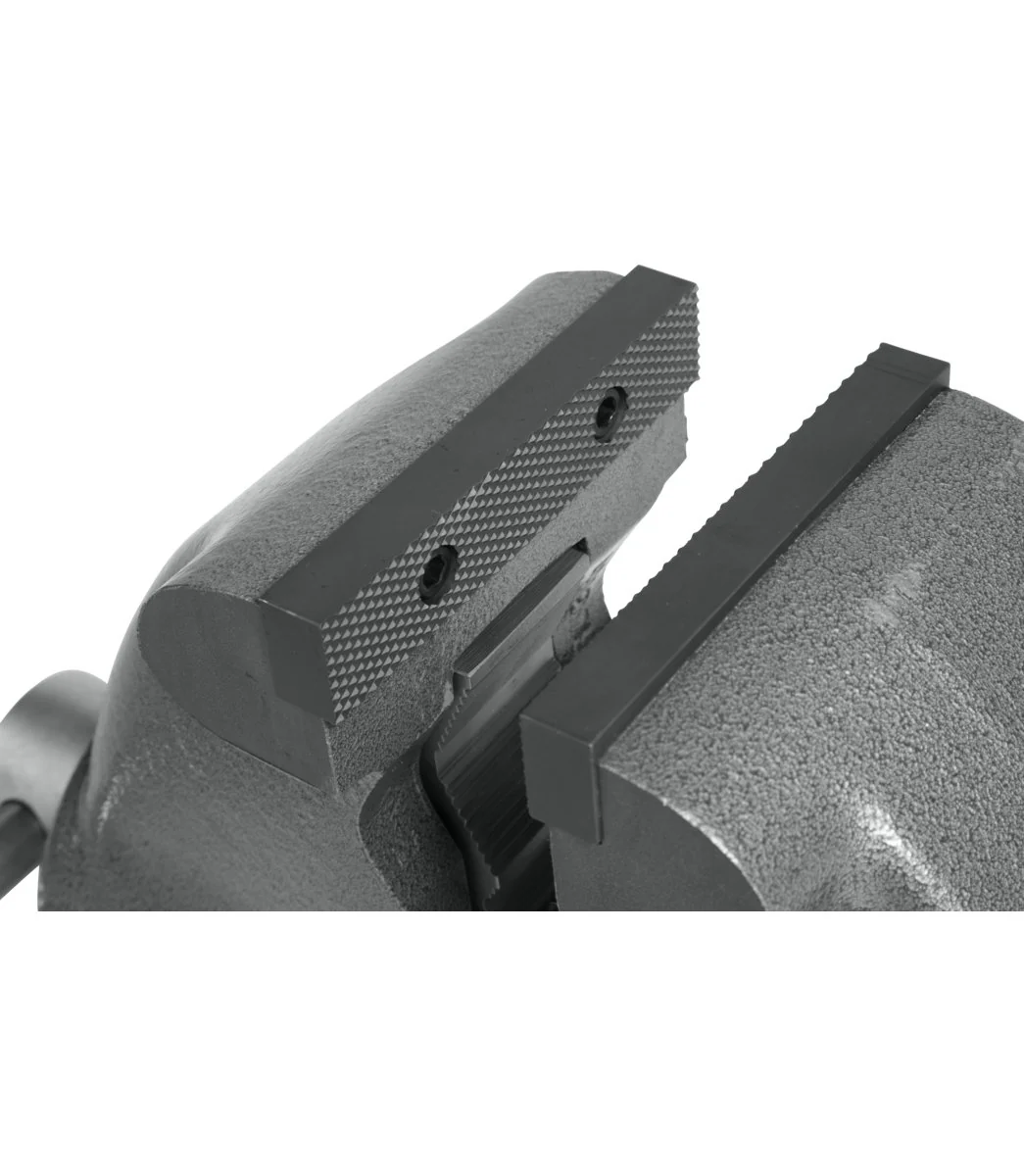

- Hardened steel replaceable jaw inserts are machine serrated for a safe and secure grip under maximum torque
- Large anvil designed to take a beating while forming and shaping materials
- Locking swivel base with double lockdowns for non-slip hold in any position

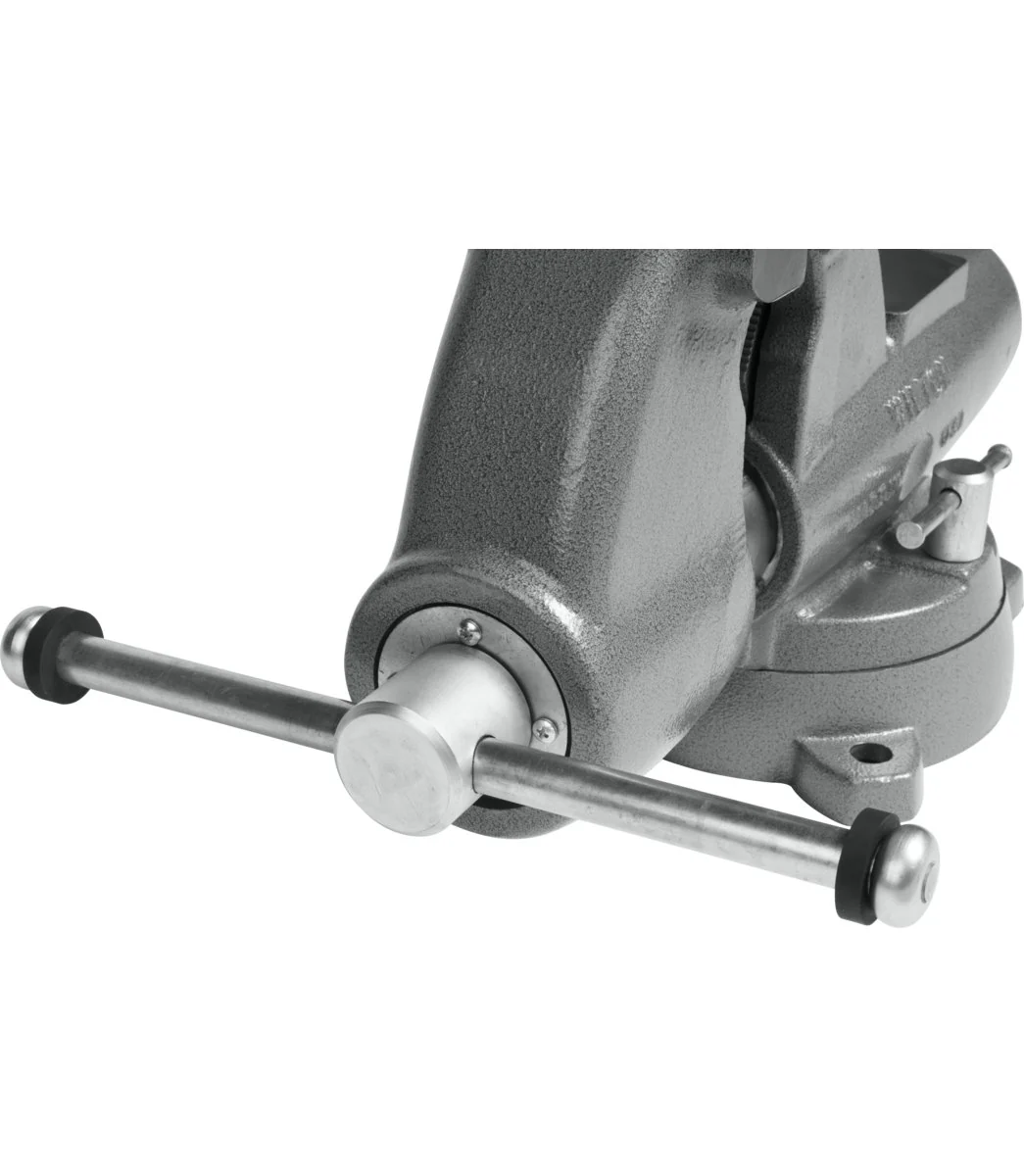

- Longer spindle nut ensures smooth movement and a stronger straight-line pull
- Massive cast iron vise body is virtually indestructible, weighing up to 30% more than competing models
- Precision slide bar eliminates movement in the front jaw regardless of opened distance
- Replaceable steel pipe jaws hold up to 6" pipe safely and securely
- Sealed construction keeps lubrication in and contaminants out for a lifetime of smooth operation.
Specifications
| Stock Number | 28827 |
|---|---|
| Jaw Depth (In.) | 5/8 |
| Jaw Height (In.) | 1 |
| Jaw Width (In.) | 5 |
| Number of Mounting Points | 4 |
| Opening Capacity Max (In.) | 7-7/8 |
| Pipe Jaw # | 2900830 |
| Prop 65 | Cancer |
| Serrated Jaw Inserts # | 29008300 |
| Throat Depth (In.) | 5-1/2 |
| Type of Base | 360 Degree Swivel |
Guide
Manual
