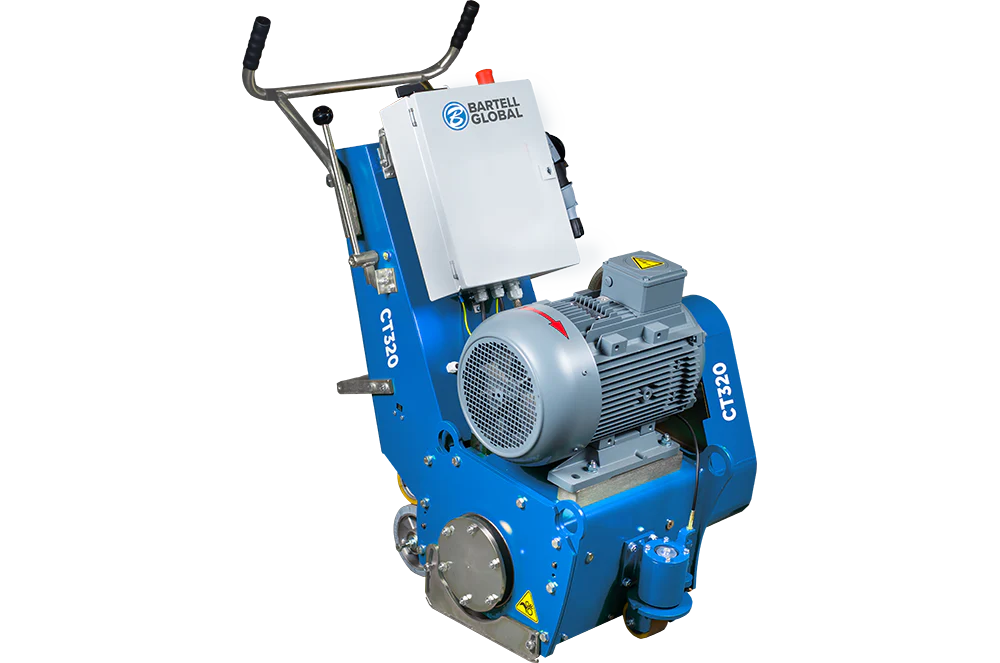

The largest and most aggressive floor planer in Bartell Global's line of scarifiers, made for the absolute toughest applications and floors.

Precision-aligned, heavy-duty bearings ensure low maintenance and trouble-free operation of the machine.

The CT320 is capable of cutting depths down to 1" (25mm). If deeper depths are necessary, this model can be ordered in the low chassis version, enabling cutting depths of 1.5"
(40mm).

• Variable speed drive unit
• Ergonomically dampened handle bars
• Extensive range of cutting tools
• Applications include removal of road markings, coatings, and membranes; surface texturing; scarifying; planing/shaving; grooving; cleaning; de-scaling

Model	CT320
Part Number	CTPCT320
Power Source	Electric Motor: 23hp 480 V, 60Hz, 3-Phase, 25A
Maximum Working Width	12.6" (32cm)
Length	43" (109cm)
Width	24" (61cm)
Height	43" (109cm)
Weight	507 lbs (230kg)
Diameter of Diamond Blades (for shaving/planing)	11.8" (30cm)
Diameter of Cutters (for scarifying)	3" (8cm)
