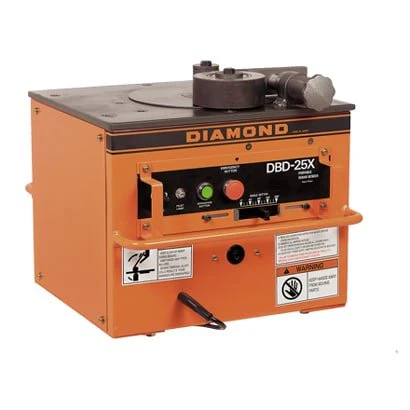

DBD-25X heavy-duty portable rebar bender effortlessly bends Grade 60 rebar up to #7 (7/8”).

This table-style bender is suitable for a shop environment or construction site and requires 120V AC / 12A.

Note: The DBD-25X is capable of bending rebar up to 180 degrees. However, the roller required to produce a complete 180° bend is not included in this kit and must be purchased separately.

• Includes two preset angle locks for repeating the same angle bend
• Lever-type angle selector can be set to accurately bend any angle from 0 to 180 degrees
• Emergency stop switch and two lifting handles are standard features
• This bender package includes (6) bending rollers in a steel carrying case, a maintenance tool kit, and a standard foot pedal control switch for hands-free bending
• Bend Up To #7 (7/8", 22 mm) Grade 60 Rebar
• Heavy-duty construction for maximum tool life
• Standard foot pedal control switch for hands free operation
• Dual angle locks for repeating bending angle

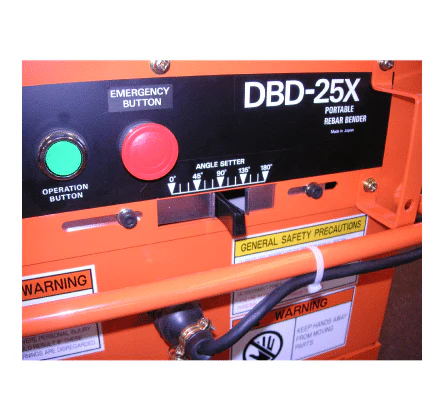

• Dial-type angle selector for 0 to 180 degree bends
• Standard features include emergency stop switch and two side lifting handles
• Ships complete with roller set (6) in steel carrying case, foot pedal, and tool kit

DBD-25X helps save valuable labor time by efficiently bending rebar up to #7 or 7/8" (22 mm) Grade 60. The electrical/mechanical bending system features two preset angle locks for repeating bends and a lever-type selector that allows accurate adjustment from 0 to 180 degrees.

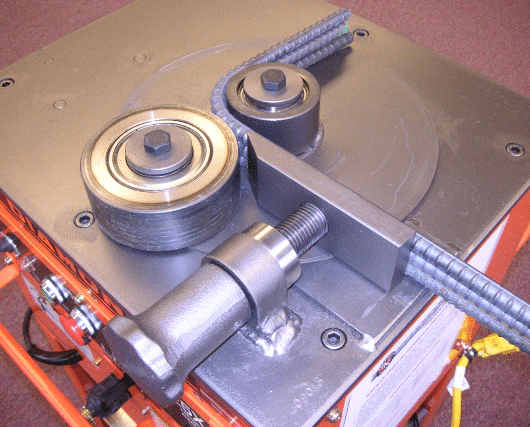

It can bend (4) #3 rebar, (3) #4 rebar, (2) #5 or #6 rebar, and (1) #7 rebar at one time. The roller chart below helps select the correct combination of rollers to achieve a bending radius at least five times the rebar diameter.

An emergency stop switch and two lifting handles are standard features. The DBD-25X portable rebar bender ships with six bending rollers in a steel carrying case, a foot pedal control switch for hands-free operation, a bender cover, and tool kit. Optional stands and specialty rollers are available separately.

This bender uses any 60 to 90 weight gear lube. BN Repair recommends filling to 1/4" above the top gear.

Specifications

Max. Rebar Size	#7 (7/8", 22 mm) Grade 60
Bending Angle	0 to 180 degrees
Bending Speed	6 seconds (180 degrees)
Power Supply	115 V, 50/60 Hz (12 Amps)
Tool Weight	190 lbs (86 Kg)
Dimensions (L x W x H)	19" x 21.5" x 17.2"
Warranty	1 Year

DBD-25X Rebar Bender Roller Selection Chart

Rebar Size	Center Roller #	Moving Roller #	# of Bars At Once
#7 (7/8", 22 mm)	No. 5	No. 1	1 Piece
#6 (3/4", 20 mm)	No. 5	No. 1	2 Pieces
#5 (5/8", 16 mm)	No. 4	No. 3*	2 Pieces
#4 (1/2", 13 mm)	No. 3	No. 5	3 Pieces
#3 (3/8", 10 mm)	No. 1	No. 6	4 Pieces

* Use a second No. 4 roller on the moving roller to produce a complete 180 degree bend. This roller is not included in the standard kit and must be purchased separately.

CRSI (Concrete Reinforcing Steel Institute) recommends the finished inside bend diameter of center roller outside dimension for standard hooks be 6 times the bar diameter from #3 to #8, and 8 times the diameter for #9, #10, and #11 rebar.

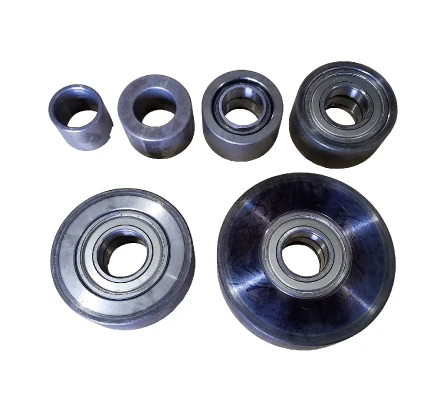

Bending Roller Sizes For DBD-25X Only

Roller # (Part #)	Outside Diameter
No. 1 (#1BR5140)	1.95" (50 mm)
No. 2 (#1BR5142)	2.73" (70 mm)
No. 3 (#1BR5143)	3.12" (79 mm)
No. 4 (#1BR51441)	3.75" (96 mm)
No. 5 (#1BR51451)	4.75" (120 mm)
No. 6 (#1BR5146)	6.13" (156 mm)
