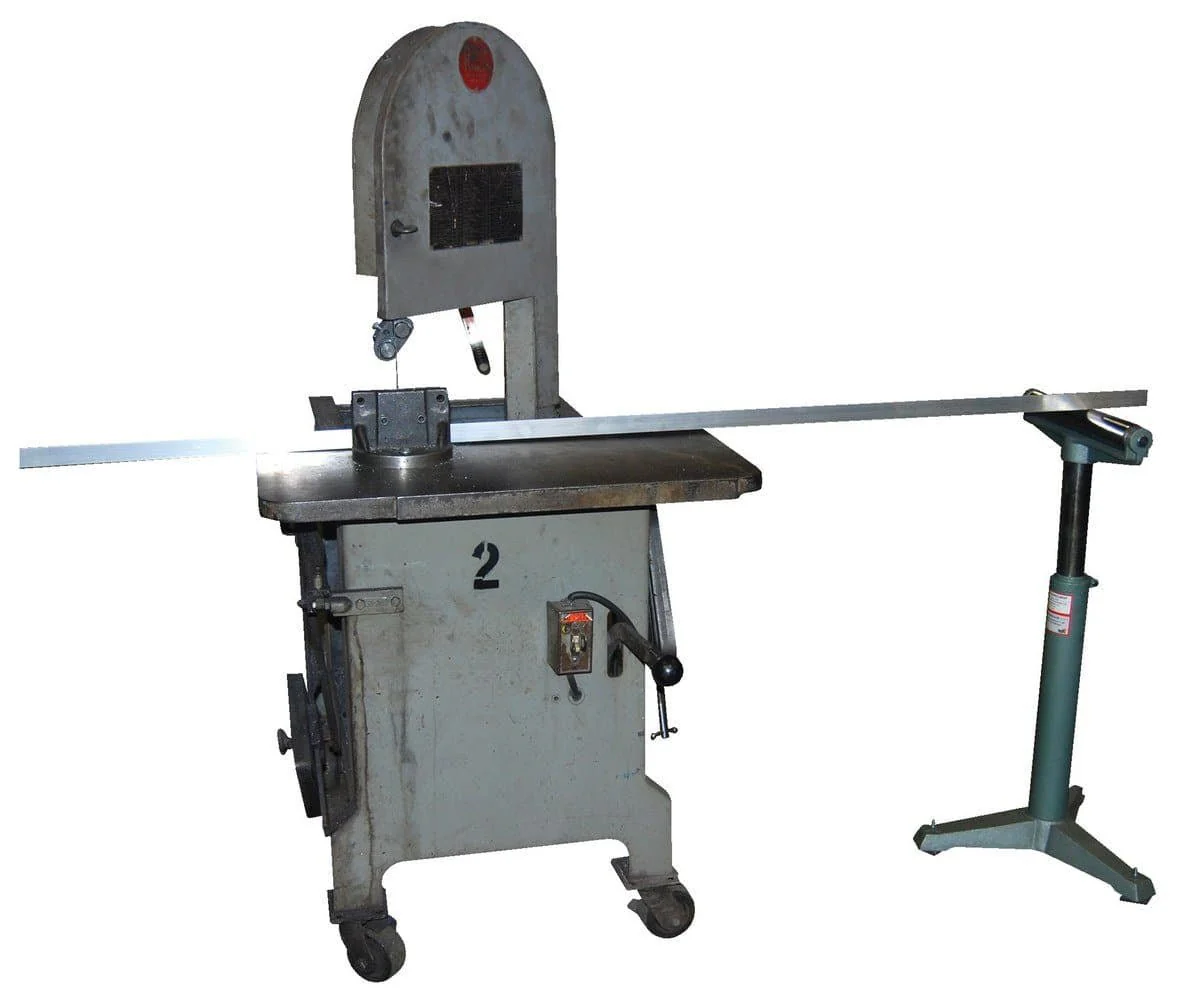

Deluxe Roller Stands are designed for use as an extra hand when working with long materials

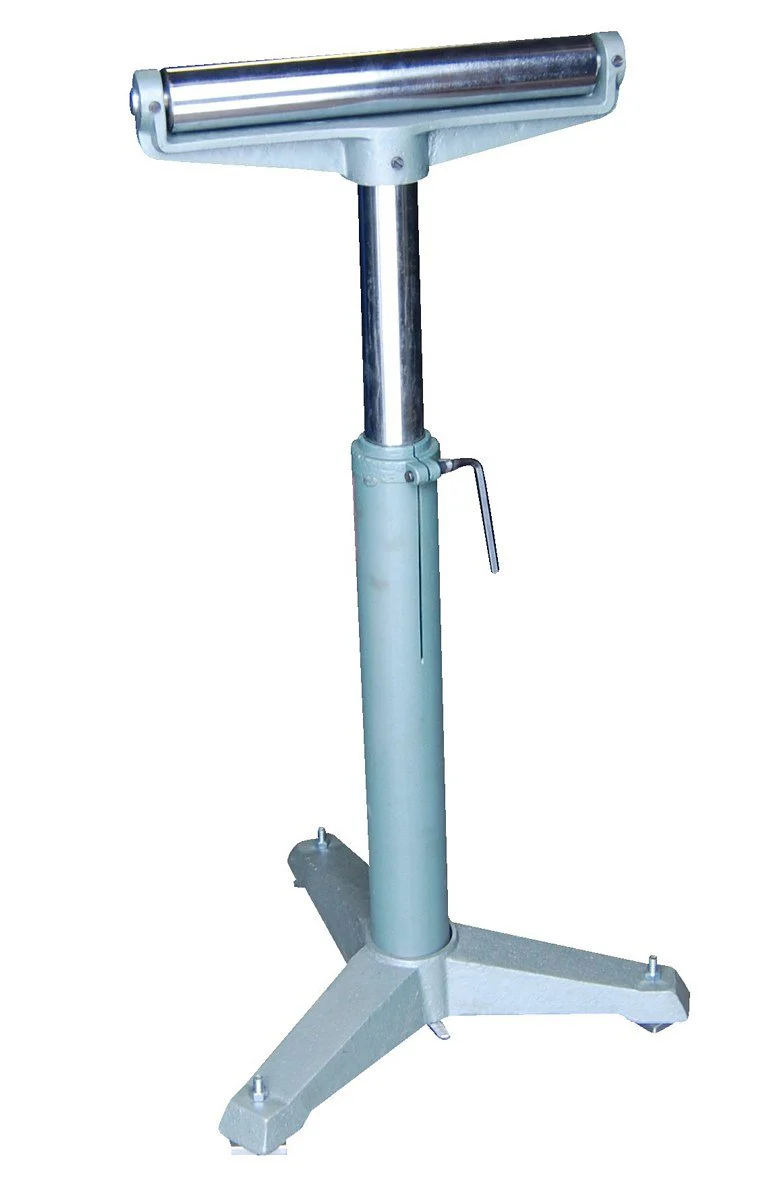

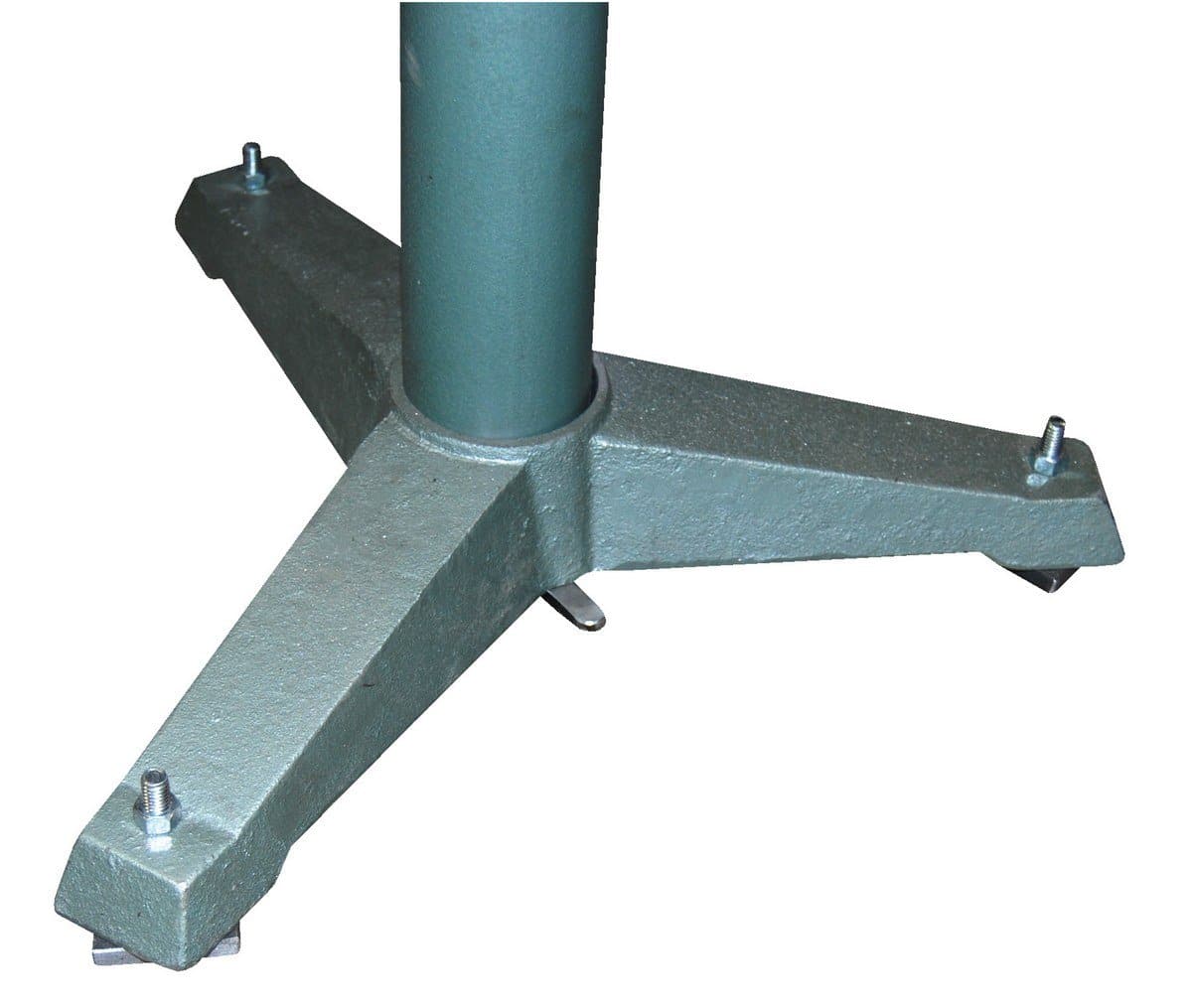

Each stand includes 2" chrome plated rollers and heavy-duty cast-steel base. Choose either v-groove roller design or flat single roller design. The height of each stand is adjusted with a friction lock screw or a gas charged cylinder. Great for use in machine and wood shops. Ships knockdown.

Stand-G models utilize a gas charged cylinder for maximum efficiency and precise positioning. The gas cylinder minimizes adjustment time and limits manual interaction with the unit.

Model STAND-T is ideal for most tubing and bar stock applications. The STAND-T ball roller span is infinitely adjustable from 1-9/16" to 6-1/8". Roller plates can also be rotated 180 degrees to create different offsets and to handle larger diameter tubing. Blue baked-in powder-coat finish for added toughness. Does not work with STAND-MF.

Deluxe Roller Stands
Model	Image	PDFs	Description	Service Range	Capacity (lbs)	Wt. (lbs)
Manual Operation
STAND-H			14" Horizontal Roller	24-7/16" to 39-1/2"	1,760	32
STAND-V			(2) 5" "V" Rollers (9" W across)	23-1/2" to 39-1/4"	1,760	35
STAND-H-HP			14" Horizontal Roller	27-1/16" to 42-1/2"	1,760	36
STAND-V-HP			(2) 5" "V" Rollers (9" W across)	26-1/8" to 42-1/4"	1,760	36
Gas Cylinder, Counter Balanced, Operation
STAND-G-H			14" Horizontal Roller	29" to 39-1/8"	1,760	40
STAND-G-V			(2) 5" "V" Rollers (9" W across)	26" to 38"	1,760	40
STAND-G-H-HP			14" Horizontal Roller	33" to 43"	1,760	40
STAND-G-V-HP			(2) 5" "V" Rollers (9" W across)	33" to 43"	1,760	42
Multi-Function, 4-Way Roller Balls, 2-Way Roller, Fixed
STAND-MF			11-1/4"x1.9" (8) Ball Rollers	27.5" to 44"	125	15

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
