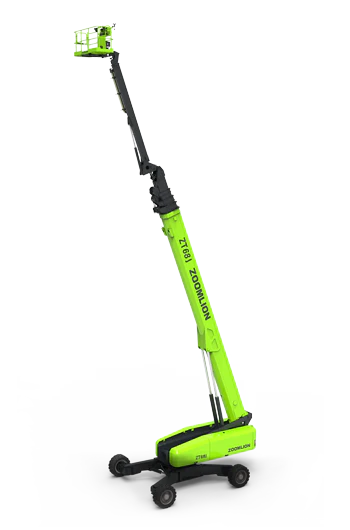

Diesel Telescopic Boom Lifts - ZT68J
Diesel-powered telescopic boom lifts can get the work done at height with super efficiency in large-scale, outdoor constructions and industrial applications.
CE Certified
- Work height up to 58.8m and horizontal outreach up to 25.5m (ZT58J Only)
- Highest self-propelled telescopic boom lift with a Work height of 67.5m and a horizontal outreach of 31m (ZT68J Only)
- Industry's first polygonal innovative boom, boom weight reduced by more than 10%, vertical stiffness increased by 25%, torsion resistance increased by 20%, and offers small deformation and stable control
- X outrigger offers larger working envelope, stronger off-road ability, and better stability
- Intelligent control of four-wheel steering ensure coordination and consistency of outriggers during steering and expansion
- All-wheel steering angles are automatically matched ensure straight travel
- Five-section boom synchronously extends, efficient and stable
| Size | ||
| Work Height | 67.5m | 221ft 5in |
| Platform Height | 65.5m | 214ft 11in |
| Horizontal Outreach | 31m | 101ft 8in |

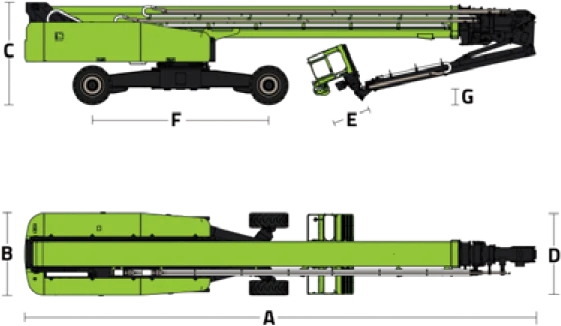

| A - Stowed Length | 15.5m | 50ft 10in |
| B - Stowed Width | 2.5m | 8ft 2in |
| C - Stowed Height | 3.06m | 10ft |
| D - Platform Length | 2.44m | 8ft |
| E - Platform Width | 0.91m | 3ft |
| F - Wheelbase | 5.357/4.69m | 17ft 7in/15ft 5in |
| Tread | 2.5/5.15m | 8ft 2in/16ft 11in |
| G - Ground Clearance | 0.40m | 1ft 4in |
| Performance | ||

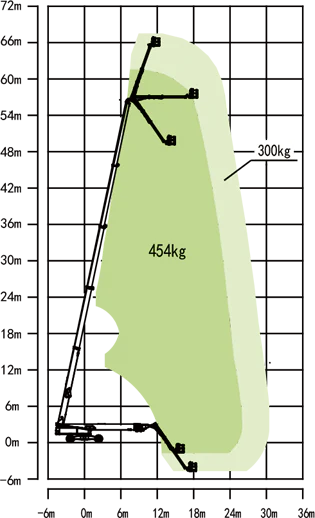

| Platform Capacity (Unrestricted/Restricted) | 300/454kg | 660/1000lb |
| Drive Speed (Stowed) | 4.5km/h | 2.8mph |
| Gradeability | 40%(22°) | 40%(22°) |
| Turning Radius (Inside) | 6.79/2.57m | 22ft 3in/8ft 5in |
| Turning Radius (Outside) | 8.43/6.39 | m27ft 8in/20ft 12in |
| Turntable Swing | 360° continuous | 360° continuous |
| Platform Rotation | ±90° | ±90° |
| Tail Swing | 2.15m | 7ft 1in |
| Jib (Range of Articulation) | 125°(-55°~70°) | 125°(-55°~70°) |
| Max. Wind Speed | 12.5m/s | 28mph |
| Power | ||
| Engine | Cummins F3.8(EU StageⅤ) | Cummins QSF3.8(China StageⅢ) |
| Fuel Tank Capacity | 200L | 52.8gal |
| Control Voltage | 12V DC | 12V DC |
| Hydraulic Tank Capacity | 400L | 105gal |
| Drive Mode | 4WD | 4WD |
| Steering Mode | Four wheels/Front wheel/Crab | Four wheels/Front wheel/Crab |
| Tire | ||
| Type | 445/50 D710 Foam-filled Tires | 445/50 D710 Foam-filled Tires |
| Weight | ||
| Gross | 35900kg | 79145lb |
Brochure
Data Sheet
