Used with stay-in-place expansion board to accurately position smooth dowels

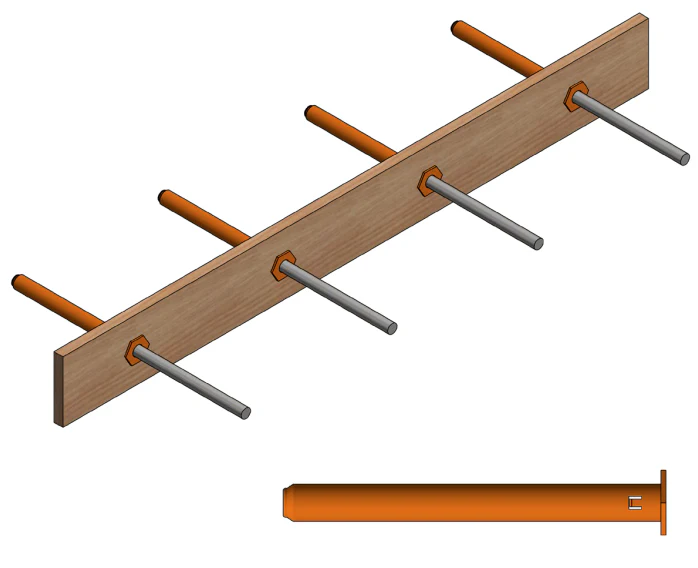

Positioning smooth dowels with leave-in-place expansion boards, like cedar or polypropylene, is easy with the Dowel Sleeve.

Expansion boards are predrilled to the proper hole size and spacing to meet specifications. Once the predrilled boards are in position, the sleeves are quickly snapped into place. Integrated collar tabs keep each sleeve in position and perpendicular to the board face.

The plastic sleeve holds each smooth steel dowel in proper horizontal alignment for the best possible load transfer between concrete pavement sections.

Normal concrete expansion and contraction takes place as the smooth steel dowel bar slides inside the sleeve.

Smooth Steel Dowel

Part No.	Description
SBDWL1218	SB Smooth Steel Dowel 1/2" x 18"
SBDWL3418	SB Smooth Steel Dowel 3/4" x 18"
SBDWL118	SB Smooth Steel Dowel 1" x 18"
SBDWL11418	SB Smooth Steel Dowel 1-1/4" x 18"
