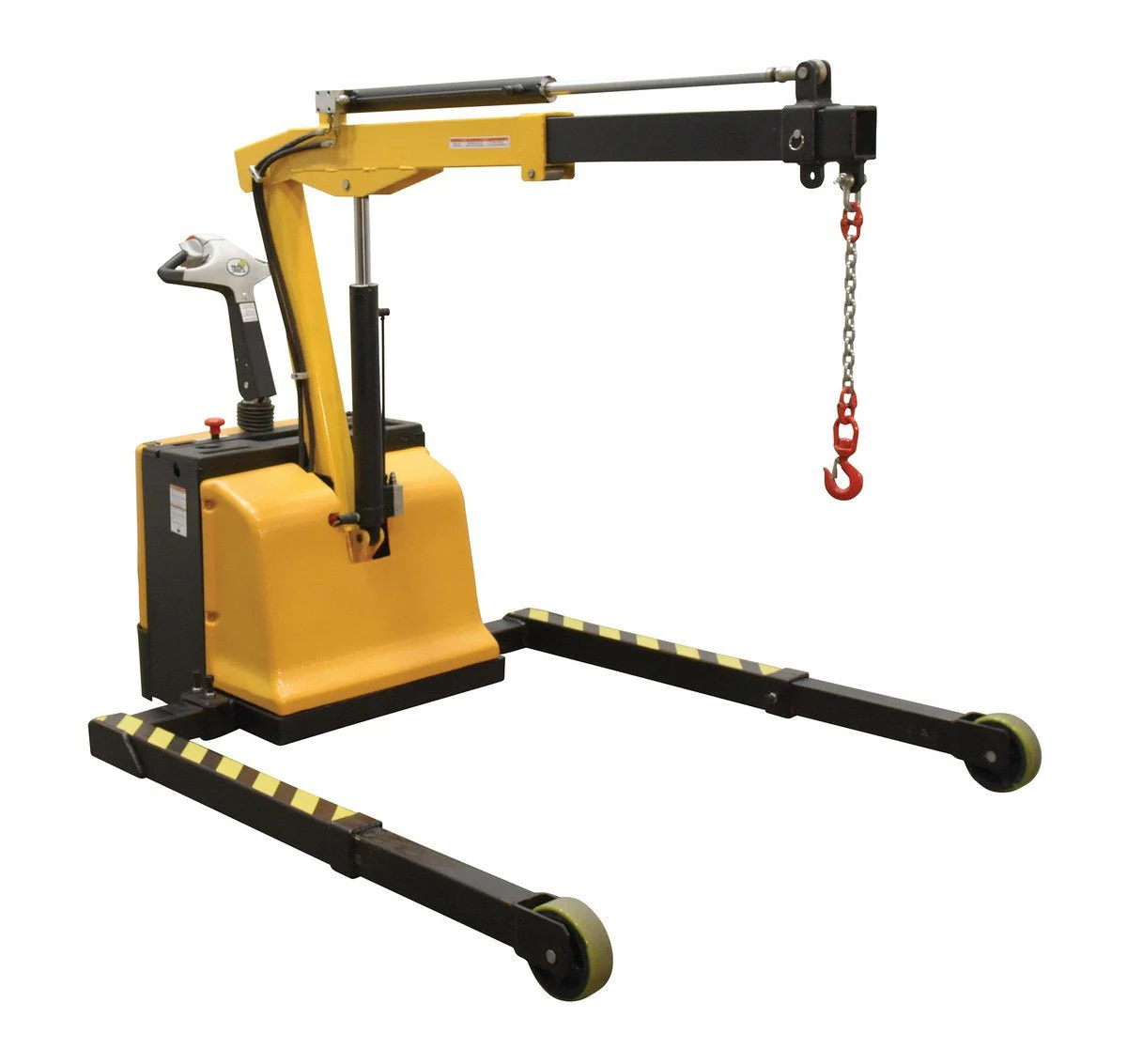

Electric Powered Floor Cranes
Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely.
24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.
- Model EPFC-25 features adjustable length legs.
- Model EPFC-25-AA features adjustable length legs and adjustable width legs.
- Model EPFC-CB-15 features fixed legs and counter balance design.
KEY:Â
 = Approval Drawing --
 = Warranty --
 = Testing Certificate
| Electric Powered Floor Crane | ||||||||
| Model | Image | Capacity (Retracted) (lbs) |
Capacity (Extended) (lbs) |
Lift Range Retracted/ Extended |
Max Height Crane Extended | Max Length Legs Extended | Retracted Size (WxLxH) |
Wt. (lbs) |
| EPFC-25 |  |
2,500 | 600 | 44-1/4"-94" | 110 | 103-1/8" | 30"x80"x63" | 925 |
| EPFC-25-AA |  |
2,500 | 600 | 44-1/4"-97" | 110 | 103-1/8" | 43-3/4"x79-1/8"x67" | 1,040 |
| EPFC-CB-15 |  |
1,500 | 400 | 44-1/4"-97" | 105 | -- | 33-7/8" x 107-1/2" x 66-3/8" | 1,982 |
KEY:Â Â = Approval Drawing --Â Â = Warranty --Â Â = Testing Certificate
Original: $12,012.84
-65%$12,012.84
$4,204.49Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely.
24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.
- Model EPFC-25 features adjustable length legs.
- Model EPFC-25-AA features adjustable length legs and adjustable width legs.
- Model EPFC-CB-15 features fixed legs and counter balance design.
KEY:Â Â = Approval Drawing --Â Â = Warranty --Â Â = Testing Certificate
| Electric Powered Floor Crane | ||||||||
| Model | Image | Capacity (Retracted) (lbs) |
Capacity (Extended) (lbs) |
Lift Range Retracted/ Extended |
Max Height Crane Extended | Max Length Legs Extended | Retracted Size (WxLxH) |
Wt. (lbs) |
| EPFC-25 | |
2,500 | 600 | 44-1/4"-94" | 110 | 103-1/8" | 30"x80"x63" | 925 |
| EPFC-25-AA | |
2,500 | 600 | 44-1/4"-97" | 110 | 103-1/8" | 43-3/4"x79-1/8"x67" | 1,040 |
| EPFC-CB-15 | |
1,500 | 400 | 44-1/4"-97" | 105 | -- | 33-7/8" x 107-1/2" x 66-3/8" | 1,982 |
KEY:Â Â = Approval Drawing --Â Â = Warranty --Â Â = Testing Certificate
