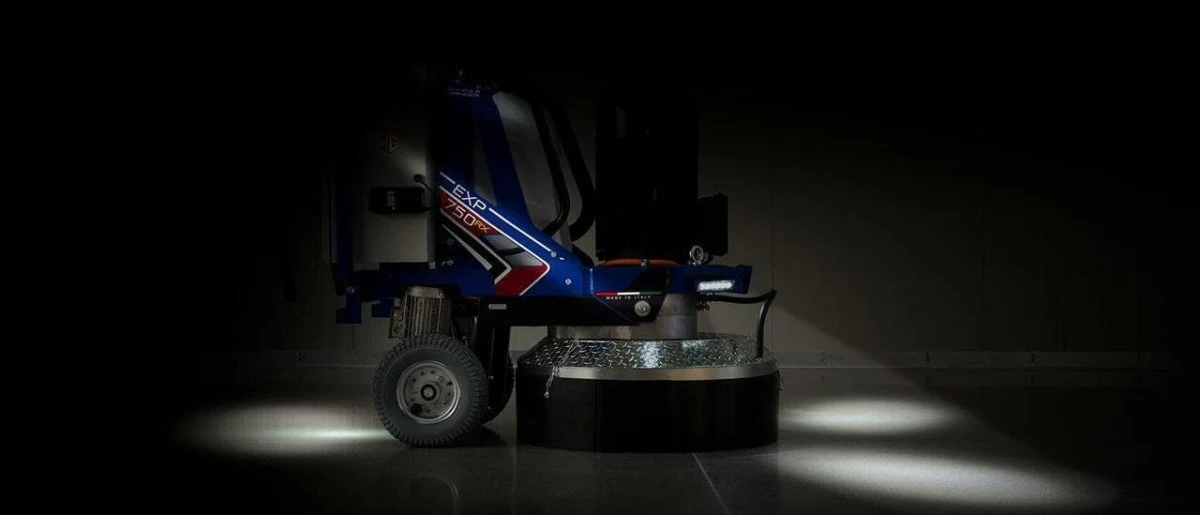

EXP 750 RX/AT Large Concrete Grinder
Remote-controlled planetary grinding and polishing machine for large surfaces, with variable speed, adjustable working pressure, on board batteries and autopilot system.
Main technical features:
• Adjustable working pressure. • Tempered stainless steel planetary and gear box. Fully geared transmission. • Third wheel for easy transportation and for operations on very large surfaces. • Compact and handy. • Automatic planetary lifting to facilitate loading and unloading procedures from vehicles. • All functions available on remote controls. • On board batteries for machine self displacement. • Utensils free quick attachment system for diamond tools.
Applications:
• Smoothing and preparation of all types of floors. • Unevenness removal on concrete. • Removal of resins, glues, paints and other residues. • High glossy mirror look polishing of marble and granite. • High glossy mirror look polishing of industrial concrete floors.
| Model |
EXP 750 RX |
EXP 750 AT |
| Motor |
15 o 20 HP |
15 o 20 HP |
| Drive Inverter |
15 kW |
15 kW |
| Volt |
380-480 |
380-480 |
| Hertz |
50/60 |
50/60 |
| Amp |
25 |
25 |
| Tools Speed |
300-1300 rpm |
300-1300 rpm |
| Work Diameter |
750mm |
750mm |
| Tools Size |
3x240mm |
3x240mm |
| Water Tank |
46 lt |
46 lt |
| Size LxAxP cm |
145x145x80 |
145x145x80 |
| Weight |
413 Kg |
413 Kg |
| ESTIMATED PRODUCTION |
|
| Concrete Polishing 7 step |
25-30m 2 /h |
| Concrete Grinding 1 step |
100-130m 2 /h |
| Terrazzo Polishing 5 step |
30-40m 2 /h |
| Resin Removal 1 step |
100-150m 2 /h |
| Paint Removal 1 step |
100-150m 2 /h |
| Marble Polishing 5 step |
20-30m 2 /h |
| Granite Polishing 7 step |
9-12m 2 /h |
Data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.
| Model |
EXP 750 |
| Volume |
3.80 m3 |
| Size |
150x145x85 cm |
| Weight |
457 Kg |
