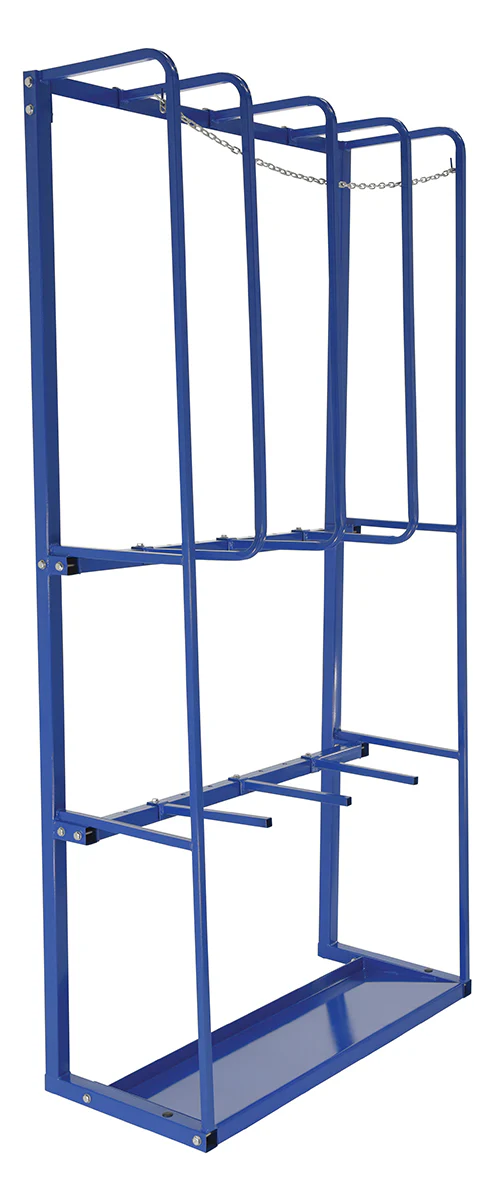

Expandable Vertical Bar Racks

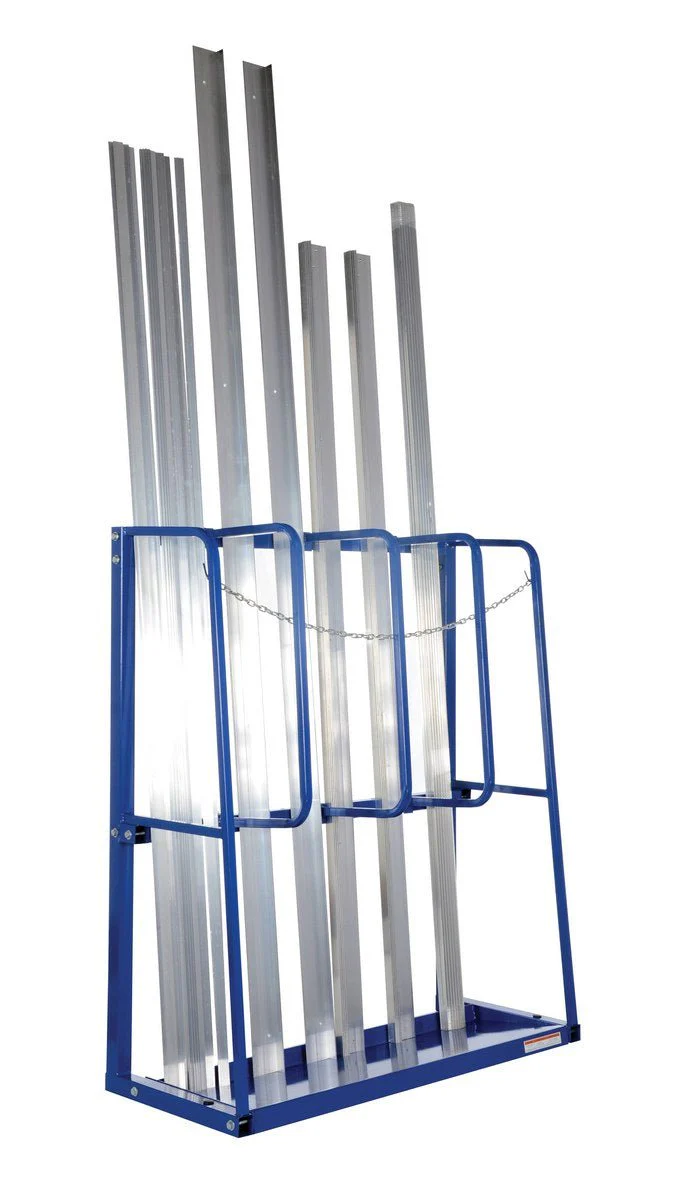

Designed for storage of long parts. Designed to be placed up against a wall. Order starter rack then extension rack for added width.
Each rack includes three (3) dividers adjustable in 5" increments. Multiple units may be joined in-line or back-to-back. Total uniform capacity is 4,000 pounds when evenly distributed. Welded steel construction with blue painted finish. Ships knock-down, assembly required. Requires two (2) anchor bolts, sold separately.
|
Expandable Vertical Bar Rack |
|||||
| Model | Image | Type | Overall Size (W x D x H) |
Divider Hole Spacing /Quantity |
Wt. (lbs.) |
| EVR-59-S |  |
Starter Rack | 53"x 21-3/4"x 59-17/32" | 5" / 9 | 176 |
| EVR-59-EXT |  |
Extension Rack | 51"x 21-3/4"x 59-17/32" | 5" / 9 | 145 |
| EVR-106-S |  |
Starter Rack | 53"x 23"x 106-17/32" | 5" / 9 | 202 |
| EVR-106-EXT |  |
Extension Rack | 51"x 23"x 106-17/32" | 5"/ 9 | 176 |
KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
