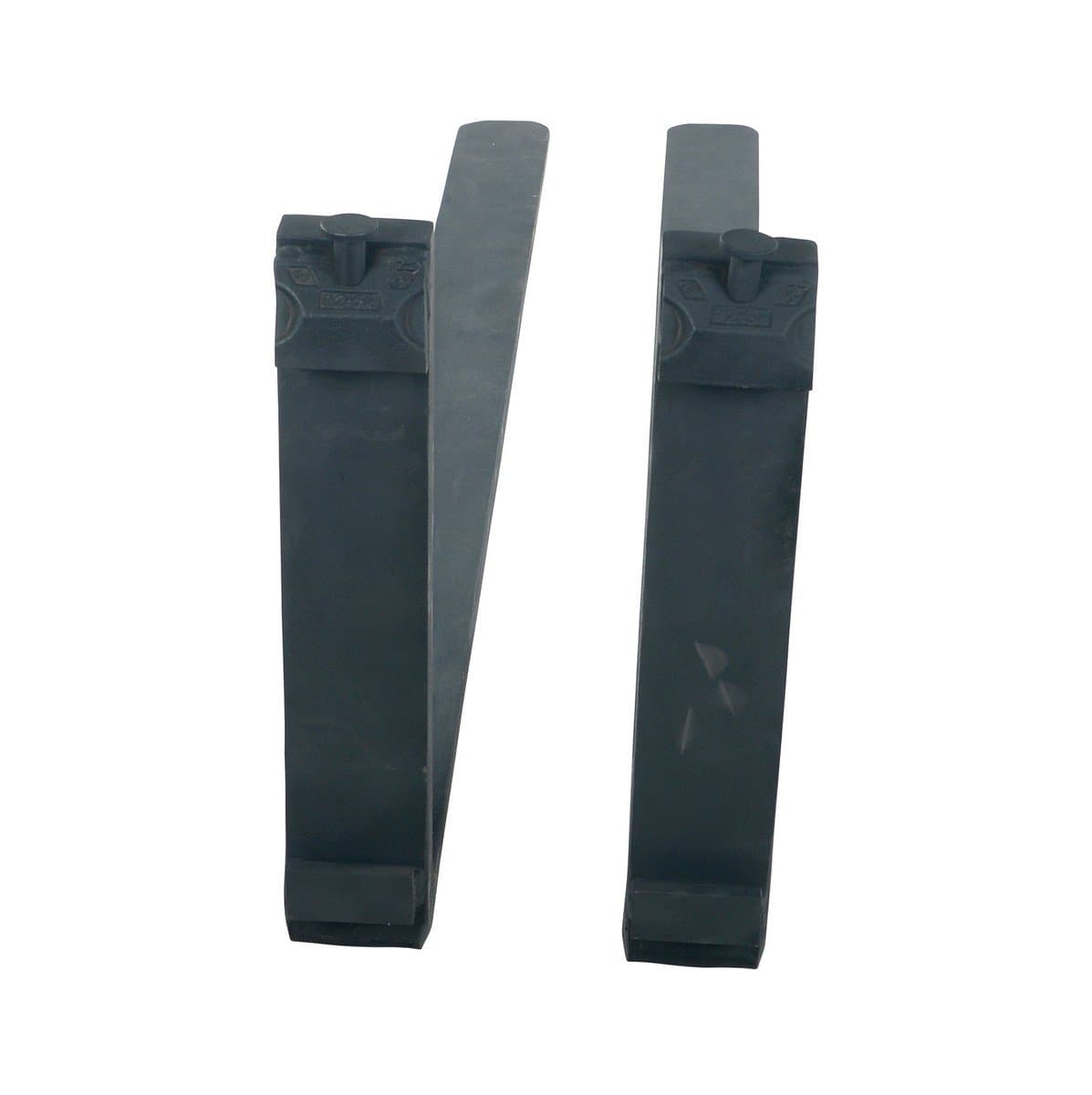

Forged Steel Forks
Change your current fork length or buy an extra pair of forks for an emergency with our new Forged Steel Forks. Forks are 4" wide each. Designed for class II carriage mounting. Meets I.T.A. standards. Available with and without carriage pins.
| Forged Steel Forks | ||||||
| Model | Image | Length (Inches) |
Thickness (Inches) |
Capacity (lbs) |
Wt. (lbs) |
|
| F4-1.25-36 |  |
 |
36 | 1-1/4" | 3,000 | 188 |
| F4-1.25-48 |  |
|
48 | 1-1/4" | 3,000 | 218 |
| F4-1.50-36 |  |
|
36 | 1-1/2" | 4,000 | 273 |
| F4-1.50-42 |  |
|
42 | 1-1/2" | 4,000 | 249 |
| F4-1.50-48 |  |
|
48 | 1-1/2" | 4,000 | 277 |
| F4-1.50-60 |  |
|
60 | 1-1/2" | 4,000 | 328 |
| F4-1.75-36 |  |
|
36 | 1-3/4" | 5,000 | 251 |
| F4-1.75-42 |  |
|
42 | 1-3/4" | 5,000 | 277 |
| F4-1.75-48 |  |
|
48 | 1-3/4" | 5,000 | 289 |
| F4-1.75-60 |  |
|
60 | 1-3/4" | 5,000 | 344 |
| Carriage Pin Included | ||||||
| F4-1.25-36-CPL |  |
|
36 | 1-1/4" | 3,000 | 188 |
| F4-1.25-48-CPL |  |
|
48 | 1-1/4" | 3,000 | 218 |
| F4-1.50-36-CPL |  |
|
36 | 1-1/2" | 4,000 | 273 |
| F4-1.50-42-CPL |  |
|
42 | 1-1/2" | 4,000 | 249 |
| F4-1.50-48-CPL |  |
|
48 | 1-1/2" | 4,000 | 277 |
| F4-1.50-60-CPL |  |
|
60 | 1-1/2" | 4,000 | 328 |
| F4-1.75-36-CPL |  |
|
36 | 1-3/4" | 5,000 | 251 |
| F4-1.75-42-CPL |  |
|
42 | 1-3/4" | 5,000 | 277 |
| F4-1.75-48-CPL |  |
|
48 | 1-3/4" | 5,000 | 289 |
| F4-1.75-60-CPL |  |
|
60 | 1-3/4" | 5,000 | 344 |
KEY:
= Approval Drawing -- = Warranty --
= Testing Certificate
Select Options
Select Weight Capacity
Select Size
From $363.93
Forged Steel Forks—
$363.93
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Change your current fork length or buy an extra pair of forks for an emergency with our new Forged Steel Forks. Forks are 4" wide each. Designed for class II carriage mounting. Meets I.T.A. standards. Available with and without carriage pins.
| Forged Steel Forks | ||||||
| Model | Image | Length (Inches) |
Thickness (Inches) |
Capacity (lbs) |
Wt. (lbs) |
|
| F4-1.25-36 | |
|
36 | 1-1/4" | 3,000 | 188 |
| F4-1.25-48 | |
|
48 | 1-1/4" | 3,000 | 218 |
| F4-1.50-36 | |
|
36 | 1-1/2" | 4,000 | 273 |
| F4-1.50-42 | |
|
42 | 1-1/2" | 4,000 | 249 |
| F4-1.50-48 | |
|
48 | 1-1/2" | 4,000 | 277 |
| F4-1.50-60 | |
|
60 | 1-1/2" | 4,000 | 328 |
| F4-1.75-36 | |
|
36 | 1-3/4" | 5,000 | 251 |
| F4-1.75-42 | |
|
42 | 1-3/4" | 5,000 | 277 |
| F4-1.75-48 | |
|
48 | 1-3/4" | 5,000 | 289 |
| F4-1.75-60 | |
|
60 | 1-3/4" | 5,000 | 344 |
| Carriage Pin Included | ||||||
| F4-1.25-36-CPL | |
|
36 | 1-1/4" | 3,000 | 188 |
| F4-1.25-48-CPL | |
|
48 | 1-1/4" | 3,000 | 218 |
| F4-1.50-36-CPL | |
|
36 | 1-1/2" | 4,000 | 273 |
| F4-1.50-42-CPL | |
|
42 | 1-1/2" | 4,000 | 249 |
| F4-1.50-48-CPL | |
|
48 | 1-1/2" | 4,000 | 277 |
| F4-1.50-60-CPL | |
|
60 | 1-1/2" | 4,000 | 328 |
| F4-1.75-36-CPL | |
|
36 | 1-3/4" | 5,000 | 251 |
| F4-1.75-42-CPL | |
|
42 | 1-3/4" | 5,000 | 277 |
| F4-1.75-48-CPL | |
|
48 | 1-3/4" | 5,000 | 289 |
| F4-1.75-60-CPL | |
|
60 | 1-3/4" | 5,000 | 344 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
