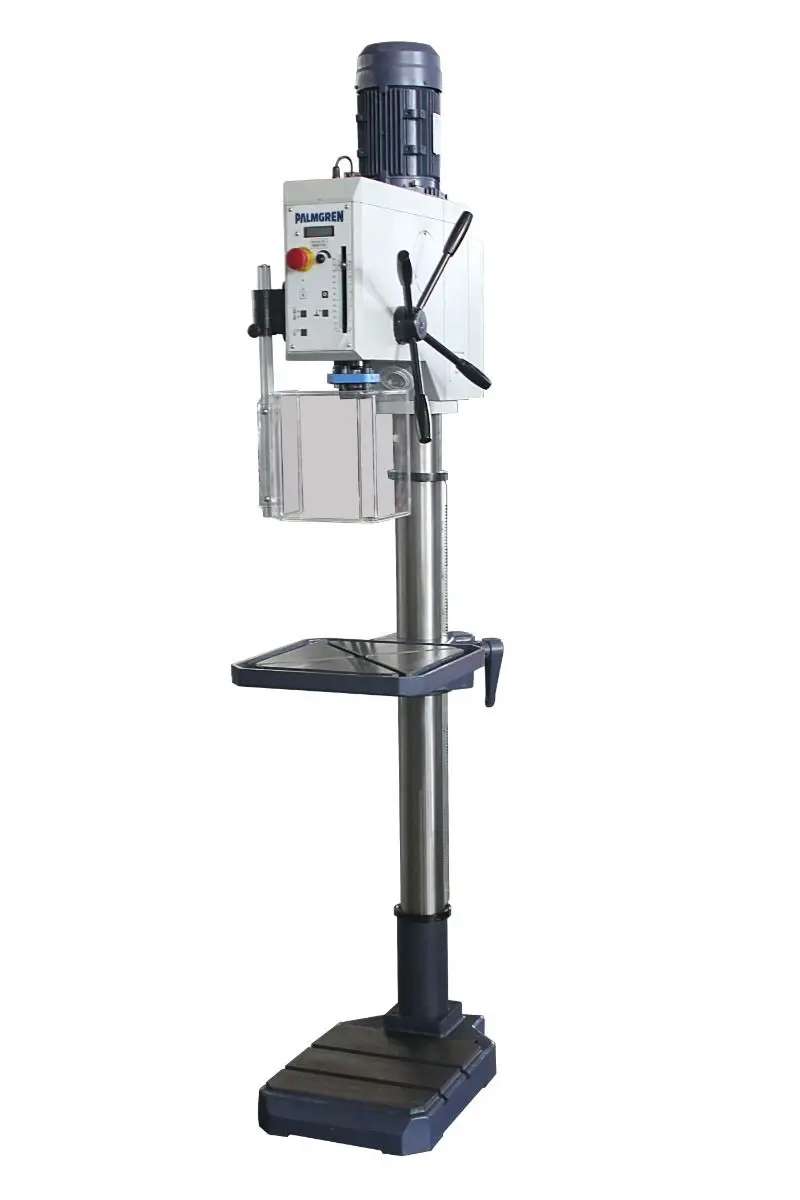

These versatile, gear driven, drill presses are ruggedly constructed with an all gear driven transmission to deliver full power at any speed, driving the cutting tool at nearly 100% of the available motor horsepower. The drill ensures positive and quiet operation by the use of steel and reinforced fiber gears.

• Wide speed range with 4 different speed settings
• Simple knob selectors for operator ease in controlling spindle speeds
• Fully enclosed machine tool spindle with internal 3 MT mounted in precision bearings for maximum accuracy, minimizing deflection
• Front mounted control panel designed for operator convenience
• T-slotted production table and base
• Rack and pinion table raiser
• Front mounted dial adjusted work stop
• Interlocking chuck guard
• Maximum spindle runout of 0.0005"
• Work light

Specification	Details
AMPS	3.2
Capacity Cast Iron	1-1/8"
Capacity Steel	1"
Column Diameter	3.62"
Country of Origin	CN
Drill Press Model	Floor Model
Drill Press Type	Gear Head
Max. Spindle To Base	47"
Motor HP	2
Number of Spindle Speeds	Variable
Phase	Three
Quill Diameter	62mm
Spindle Taper	MT3
Spindle Travel	5"
Swing	20"
Table Dimensions	15.5" x 14.75"
Table Slots	4
Table Slot Size	14mm
Voltage	460
Warranty	3 Year
UPC	726896801384
Unit of Measure	Each
Product Weight (lbs)	405.6
