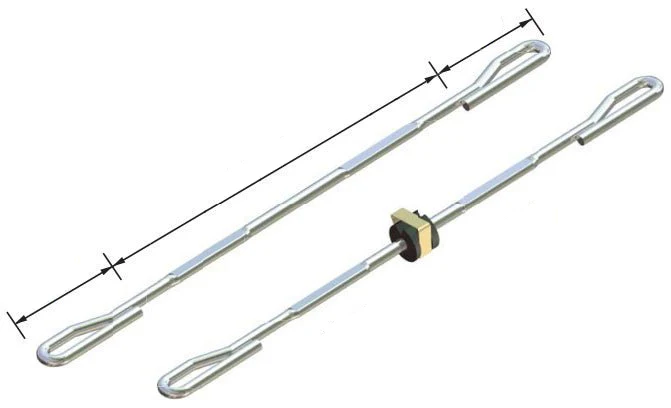

OCM Loop Ties are designed to provide dependable tying systems for OCM Steel Plywood Forms.

OCM Loop Ties are manufactured from high strength steel designed to provide a reliable method for securing formwork.

Features:

• Available in 4" to 120" wall size. Longer sizes available on special order.

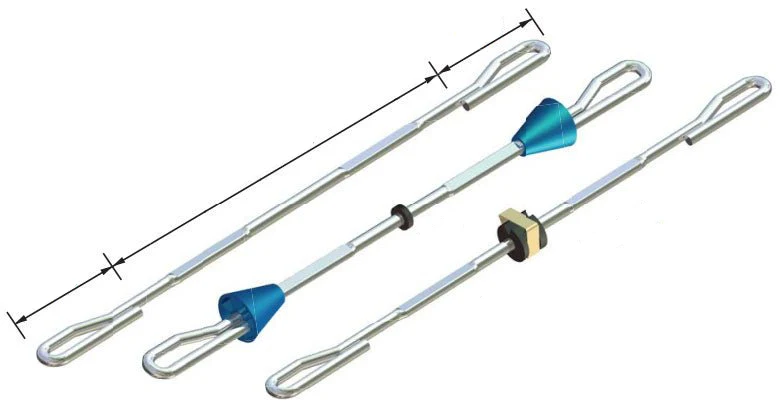

• Available with neoprene washer placed near the center of the tie. The water-resistant washer prohibits water seepage along the tie.
• Available with Plastic Cones in 1" and 1-1/2"

Specifications:

	OCM Part No.	Wall Size	Weight per pcs lbs.	Carton Qty	Safe Working Load lb.
Heavy 2-1/8" Ends	LTHD-06	6	0.21	100	3000
	LTHD-08	8	0.23
	LTHD-10	10	0.25
	LTHD-12	12	0.28
	LTHD-14	14	0.31
	LTHD-16	16	0.34
	LTHD-18	18	0.36
	LTHD-19	19	0.38
	LTHD-20	20	0.39
	LTHD-24	24	0.44
