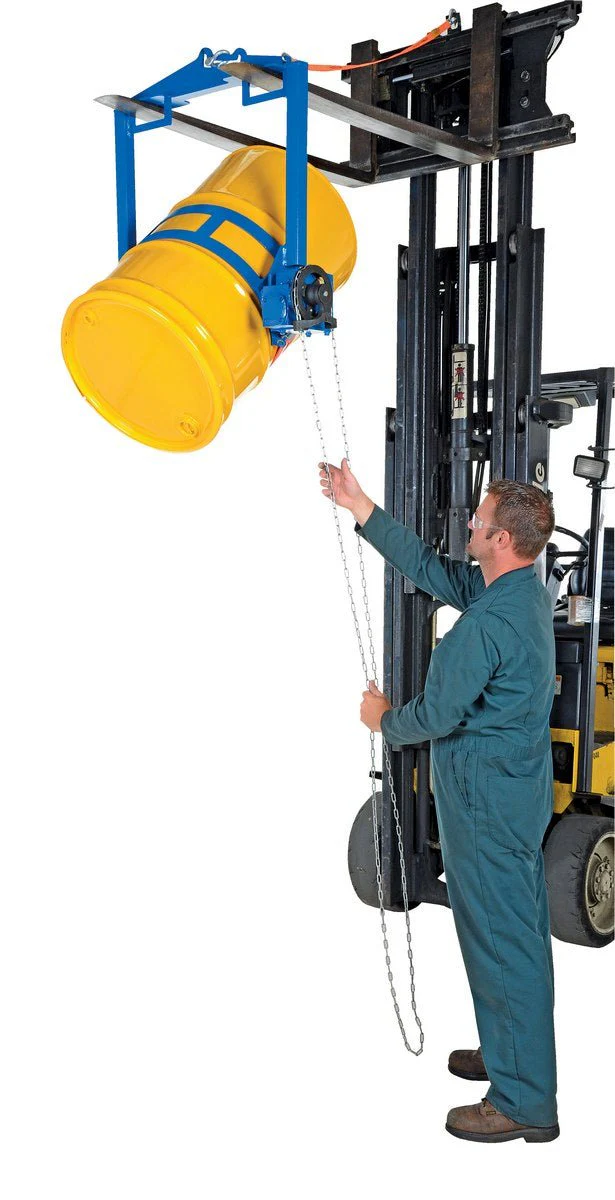

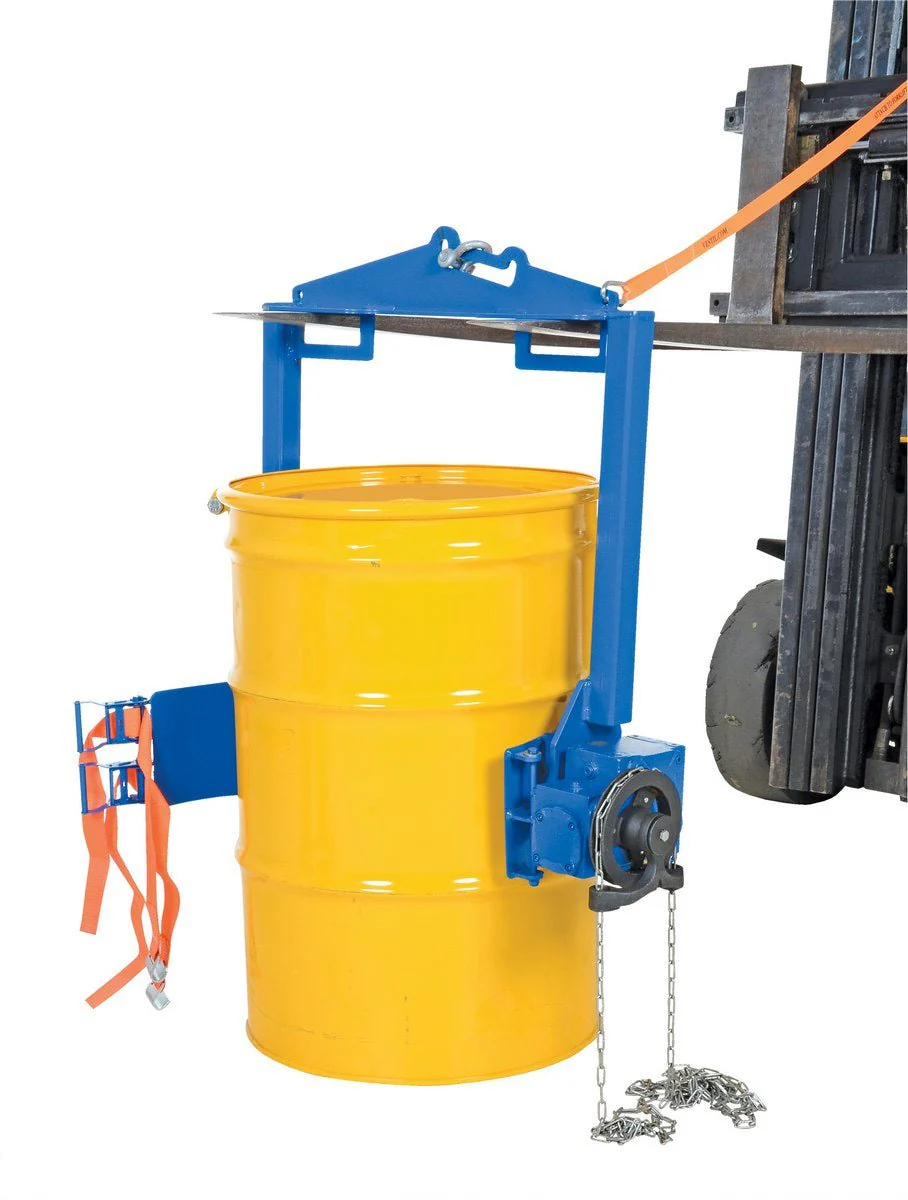

Rotate and position a fully loaded 55 gallon steel drum with ease. Use with an overhead hoist or a fork truck.

Fork pockets measure 5-1/2"W x 1-15/16"H usable. Features a chain crank that allows the operator to rotate 360 degrees drums that are out of reach. Drums are held in place with a drum locking system. Meets OSHA 1910.179 requirements. Model DCT-2000 features gear box operation. Models ending with suffix "4WFP" have bolt on fork pockets for 4 way entry, usable 5"W x 1-9/16"H and 5-1/2"W x 1-15/16"H.

Hoist Mounted Drum Carrier/Rotator
Model	Image	PDF's	Drum Style	Capacity (lbs)	Rotation Method	Wt. (lbs)
DCT-75			55 gallon steel	800	15' chain	145
DCT-85			55 gallon steel	1,500	15' chain	145
DCT-2000			55 gallon steel	2,000	15' chain	169�
DCT-75-4WFP			55 gallon steel	800	15' chain	159
DCT-85-4WFP			55 gallon steel	1,500	15' chain	159
Drum must be full to rotate at rated capacity

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
