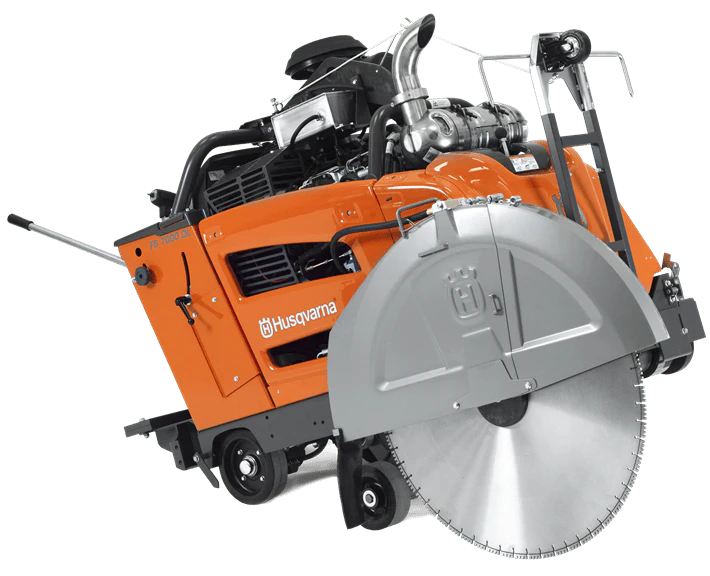

FS 7000 DL is a large, deep-cutting walk-behind flat saw with cutting depth up to 625 mm with a Ø1500 mm diamond blade.

Perfect for road work, large sawing jobs, deep floor sawing and mid-size jobs that require high production rates. The modern, service-friendly design, ergonomic controls and electronic support systems are highly intuitive, with focus on operator efficiency and convenience. The turbo diesel engine from Deutz delivers an impressive level of sustainable torque maximizing production rates in the toughest conditions. Compliant with Stage IIIB / Tier 4 emission regulations the floor saw contributes to a healthier working environment. Available as single speed or with a 3-speed gearbox. Both models can include blade clutch, electronic tracking system on the rear axle, 5th wheel, light kit, water pump kit and weight kits.

---

Key Features

• Deep Cutting: Capable of cutting up to 25 in deep with a 60 in diamond blade (extension kit required for maximum depth).

• Electric Tracking System: Ensures straight cuts with automatic neutral position return and memory of last settings.

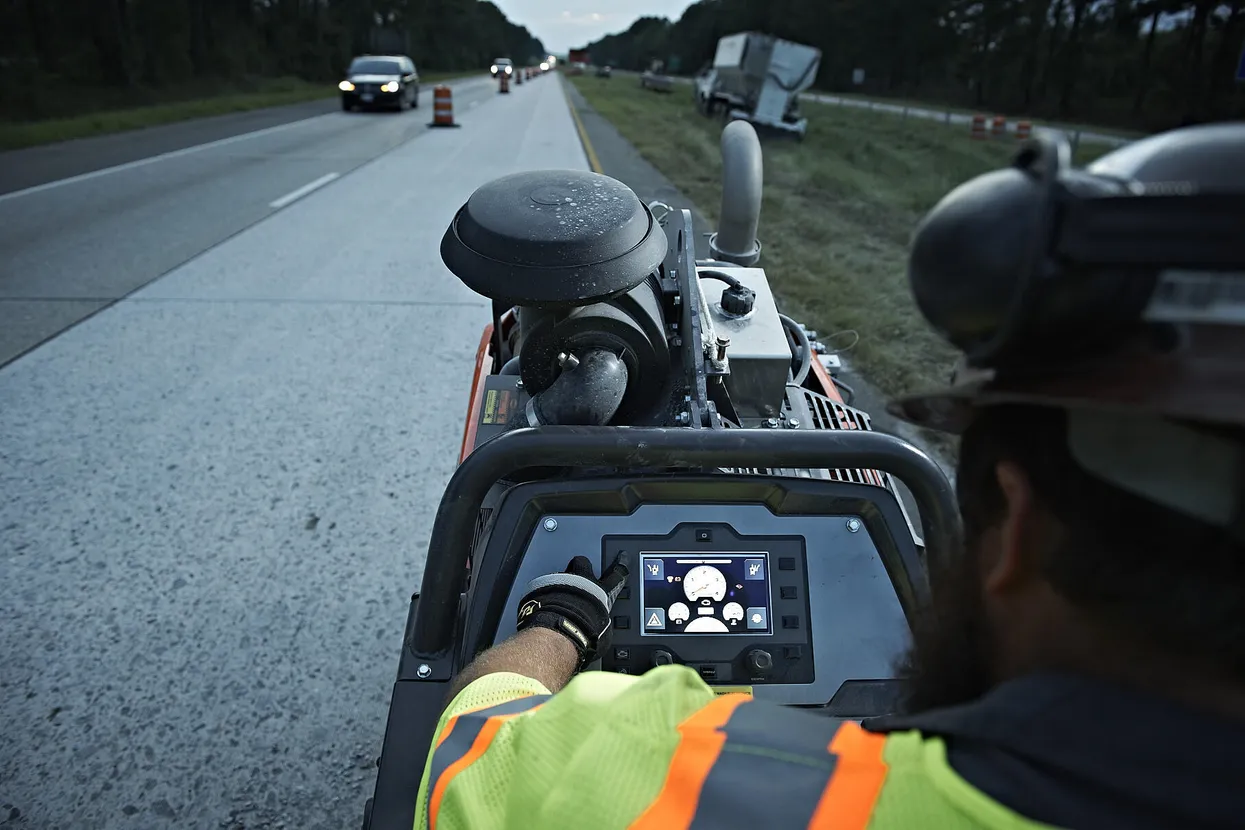

• Ergonomic Controls: Intuitive control panel with easy access to blade RPM, forward speed, depth gauge, and more.

• Optional 5th Wheel: Improves maneuverability by raising and lowering the rear of the saw.

• Low Emissions: Compliant with Stage IIIB / Tier 4 regulations for a cleaner work environment.

• Powerful Engine: Deutz turbo diesel engine delivers high torque and productivity in tough conditions.

• Low Maintenance: IntelliSeal blade shaft system allows for 250+ maintenance-free hours.

• Adjustable Handles: Foldable and adjustable for comfortable operation and transport.

• Blade Clutch: Stops the blade while the engine runs for safe transportation.

• 3-Speed Gearbox (Optional): Optimizes power and speed for various blade sizes.

Specifications

Engine
Output Power	74.3 hp
Cooling System	Liquid/Air
Emission Compliance	Stage IIIB / Tier 4
Cutting Equipment
Max Blade Diameter	60 in
Max Cutting Depth	25 in
Arbor Diameter	1 in
Blade Depth Control	Electro-hydro
Transmission
Forward Speed	250 fpm
Reverse Speed	0 fpm
Dimensions
Width	39.5 in
Height	59 in
Weight	2879 lbs.
