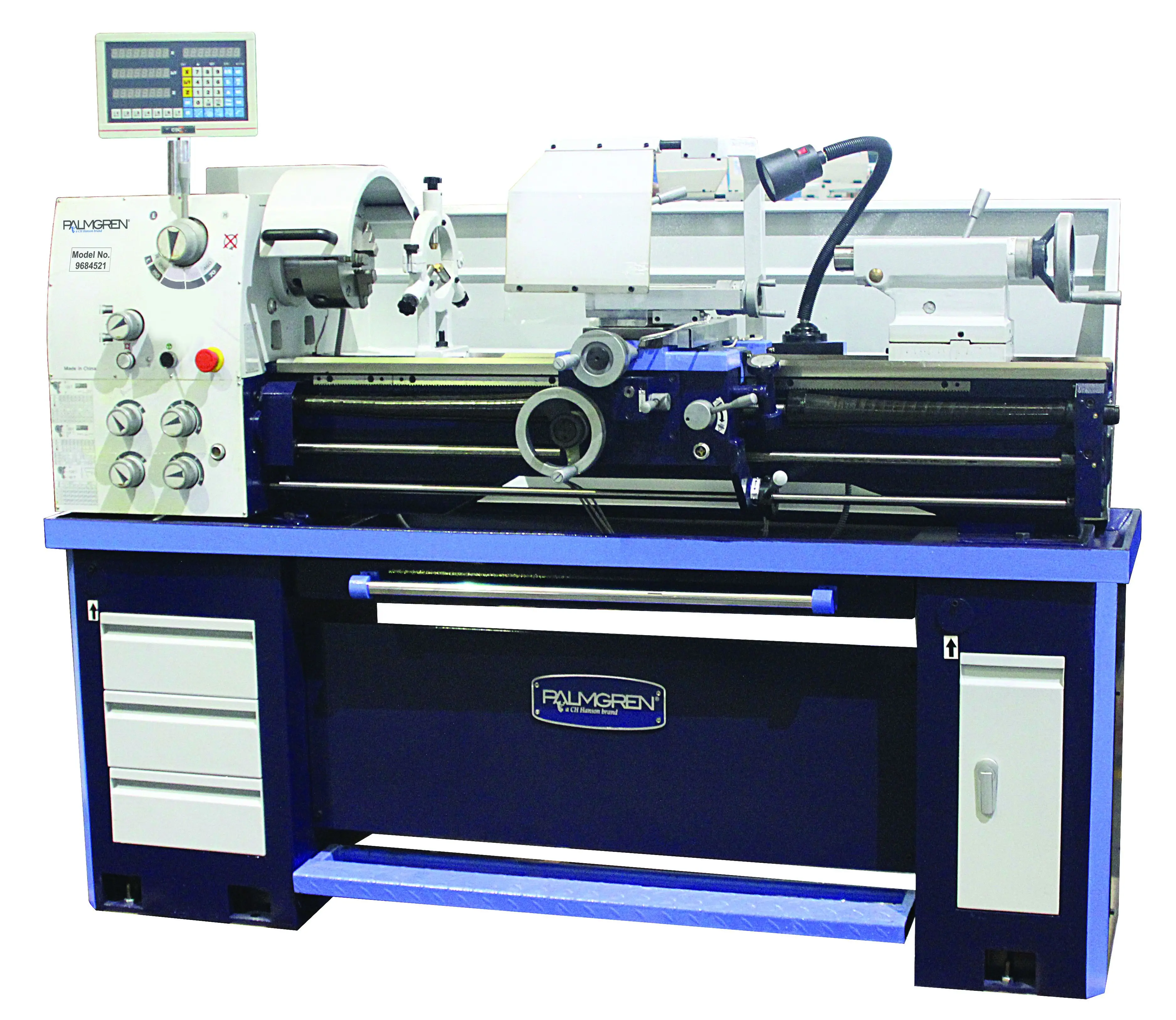

Palmgren's 14" engine lathes have the power to deal with heavy metal removal and the accuracy and control to handle precision fine tolerance turning.

Each machine comes standard with a DRO and glass scales for added operator convenience and accuracy. The headstock is designed to provide maximum power for roughing cuts and smooth, quiet power for fine finishing. All the gears are helical precision cut, hardened and ground running in a continual bath of oil. he main spindle is made of high alloy steel and mounted in precision taper roller bearings. The control panel is easy to use and is designed for operator convenience. The wide bed ways are made of stabilized cast iron, ground and hardened for a lifetime of use. The universal gear box delivers a broad range of feed and thread selections and each machine can do both inch and metric threads. All the gears are hardened and the shafts turn on anti-friction bearings. All Palmgren lathes are built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. These all purpose lathes are ideal for turning applications requiring heavy metal removal or fine tolerance finishing applications and are used in tool rooms, die and mold shops, fabrication shops and maintenance departments.

• 3 Axis Sino DRO
• 3 & 4 Jaw Chucks
• Splash Guards
• Chuck and Toolpost Safety Guard
• (2) MT3 Dead Centers. Inch and Metric Gears for Threading
• Steady Rest
• Follow Rest
• Work Light

Specification	Value
Bed Width	8
Carriage Travel	37
Compound Travel	3-3/4"
Coolant Tank Capacity	2-39/64 gal.
Country of Origin	CN
Cross Feed Rates	0.0005 to 0.0118"
Cross Slide Travel	7
Distance Between Centers	40"
Hz	60
Includes	Digital Readout, 4 Jaw Chuck, Splash Guard, Chuck and Tool Post Safety Guard, 4 Way Tool Post, Splash Guard, (2) 3MT Dead Centers, Inch and Metric Gears for Threading, Steady Rest, Follower Rest, Work Light, with DRO & stand
Lathes Type	Bench Top
Length Of Gap	9-1/2
Longitudinal Feed Rates	0.0012 - 0.022
Motor HP	2
Number of Spindle Speeds	8 or 16
Number of Threads (In.)	40 (7750374)
Number of Threads (mm)	22 (7750382)
Overall Dimensions (LxWxH)	76" x 30" x 52"
Phase	Three
Spindle Bore	2
Spindle Seat	Camlock D1-4
Swing Over Bed	14"
Swing Over Cross Slide	8-1/2
Swing Over Gap	20-1/4
Tailstock Taper	MT-3
Tailstock Travel	4-1/2"
Thread Range (In.)	4 to 112
Thread Range (mm)	0.45 to 7
Voltage	230
Warranty	3 Year
UPC	726896845517
Unit of Measure	Each
Product Weight (lbs)	1650
