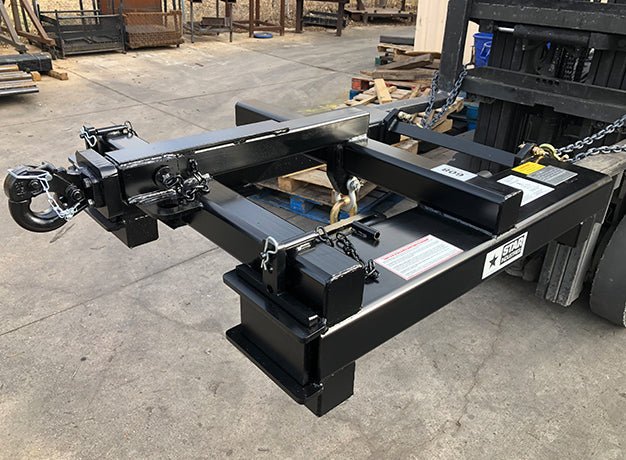

Lift-N-Tow

• Universal ‘slip on forks’ style
• Easily swap between ball, pintle and combination hitches
• Rugged heavy-duty construction for increased durability and long life
• Includes convenient tool tray on 1390B

Model		Accepts forks	Max Lift Capacity on Swivel Hook	Max Lift Capacity on Receiver Jib	Max Gross Towing Weight	Weight (w/o Hitch Adaptor)	Fork Pocket Size	Center-to-center of Fork Opening	Pocket Ends
Lift-N-Tow	1390B	6” w x 2 ¾” thick	4,000 lbs	2,000 lbs	10,000 lbs	220 lbs	48” long x 6 ¾ x 3” ID	13 ¼”	Open
Super Duty Lift-N-Tow	1395B	8” w x 2 ¾” thick	10,000 lbs	3,000 lbs	16,000 lbs	400 lbs	48” long x 8 ¾ x 3” ID	34 ¾”	Open
Navy Lift-N-Tow	1396C	8″ w x 2 ¾” thick	12,000 lb	6,000 lbs	30,000 lbs	505 lbs	48” long x 8 ¾ x 3” ID	34 ¾”	Open

Lift-N-Tow & Hitches sold separately.

Hitch Adapters

Model	For Lift-N-Tow Model	Style of Adapter	Max Vertical Lift	Max Gross Towing Weight	Horizontal Center of Gravity	Weight (Adapter Only)
1391	1390B	2” Ball	600 lbs	10,000 lbs	28”	10 lbs
1392	1390B	Pintle	2,000 lbs	10,000 lbs	29”	15 lbs
1393	1390B	Combo	2,000 lbs	10,000 lbs	30”	20 lbs
1394PH	1395B	Pintle	3,000 lbs	16,000 lbs	29”	21 lbs
1394CH	1395B	Combo	3,000 lbs	16,000 lbs	30”	25 lbs

Note: Pintle Hitch included with model 1396C Navy Lift-N-Tow

Danger: Do NOT use without installing retaining pins behind the heel of each fork and securing with hairpins or cotter pins. Safety chain(s) must also be used. Wrap chain around a strong part of the fork carriage and secure with locking grab hook.

Hitches

A hitch is required for the Lift n Tow. Hitches sold separately - see specifications tab for more details.

Adapter with 2" Ball Model 1391

Adapter with Pintle Hitch Model 1392/1394PH
