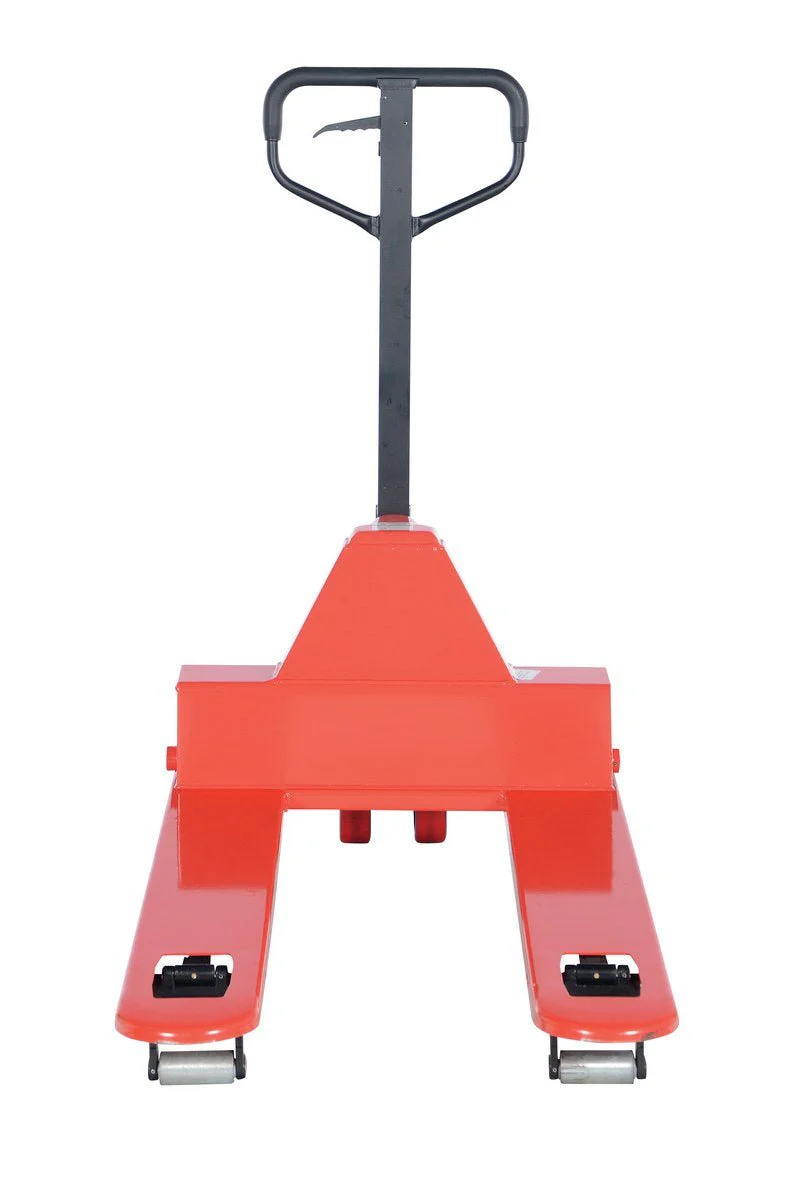

Low Profile Pallet Trucks
Ships with the Handle Detached Standard
The Low Profile Pallet Truck enters pallets from all four sides. All steel frame is reinforced to handle 4,000 lb. capacity loads.
Individual fork width is 7" wide. Wide loop control handle with lift, neutral, and lower functions provides fingertip control. Lifetime lubricated bearings. Hydraulic system has hard chrome plated pump piston with polyurethane seals. Suspension system has a heavy-duty thrust bearing. Complete with adjustable push rods, polyurethane wheels, steel load rollers and red baked-in powder-coated toughness.
- Wide loop handle offers easy unit maneuverability
- Fingertip lever provides an easy lift, lower and neutral operation
- Suspension system has heavy-duty thrust bearing for long lasting use
- Lifetime lubricated bearings never need maintenance work
| Low Profile Pallet Truck | ||||||||
| Model Number | Image | PDF's | Description | Capacity (lbs) |
Overall Fork Dimensions |
Service Range |
Wt. (lbs) |
|
| PM4-2048-LP* |  |

|
Low Profile | 4,000 | 20-5/8"Wx48"L | 1-7/8"-6" | 229 | |
| PM4-2748-LP |  |
|
Low Profile | 4,000 | 27"Wx48"L | 1-7/8"-6" | 253 | |
| PM4-3348-LP |  |
|
Low Profile | 4,000 | 33"Wx48"L | 1-7/8"-6" | 271 | |
| (6) SIX PACKS - CRATED | ||||||||
| PM4-2048-LP-6PKG* |
|
|
Low Profile | 4,000 | 20-5/8"Wx48"L | 1-7/8"-6" | 1163 | |
| PM4-2748-LP-6PKG |
|
|
Low Profile | 4,000 | 27"Wx48"L | 1-7/8"-6" | 1307 | |
| PM4-3348-LP-6PKG |
|
|
Low Profile | 4,000 | 33"Wx48"L | 1-7/8"-6" | 1475 | |
| * MODEL PM4-2048-LP HAS A TRIANGULAR APRON | ||||||||
KEY: = Approval Drawing --
= Warranty --
= Testing Certificate
Original: $704.85
-65%$704.85
$246.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Ships with the Handle Detached Standard
The Low Profile Pallet Truck enters pallets from all four sides. All steel frame is reinforced to handle 4,000 lb. capacity loads.
Individual fork width is 7" wide. Wide loop control handle with lift, neutral, and lower functions provides fingertip control. Lifetime lubricated bearings. Hydraulic system has hard chrome plated pump piston with polyurethane seals. Suspension system has a heavy-duty thrust bearing. Complete with adjustable push rods, polyurethane wheels, steel load rollers and red baked-in powder-coated toughness.
- Wide loop handle offers easy unit maneuverability
- Fingertip lever provides an easy lift, lower and neutral operation
- Suspension system has heavy-duty thrust bearing for long lasting use
- Lifetime lubricated bearings never need maintenance work
| Low Profile Pallet Truck | ||||||||
| Model Number | Image | PDF's | Description | Capacity (lbs) |
Overall Fork Dimensions |
Service Range |
Wt. (lbs) |
|
| PM4-2048-LP* | |
|
Low Profile | 4,000 | 20-5/8"Wx48"L | 1-7/8"-6" | 229 | |
| PM4-2748-LP | |
|
Low Profile | 4,000 | 27"Wx48"L | 1-7/8"-6" | 253 | |
| PM4-3348-LP | |
|
Low Profile | 4,000 | 33"Wx48"L | 1-7/8"-6" | 271 | |
| (6) SIX PACKS - CRATED | ||||||||
| PM4-2048-LP-6PKG* |
|
|
Low Profile | 4,000 | 20-5/8"Wx48"L | 1-7/8"-6" | 1163 | |
| PM4-2748-LP-6PKG |
|
|
Low Profile | 4,000 | 27"Wx48"L | 1-7/8"-6" | 1307 | |
| PM4-3348-LP-6PKG |
|
|
Low Profile | 4,000 | 33"Wx48"L | 1-7/8"-6" | 1475 | |
| * MODEL PM4-2048-LP HAS A TRIANGULAR APRON | ||||||||
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
