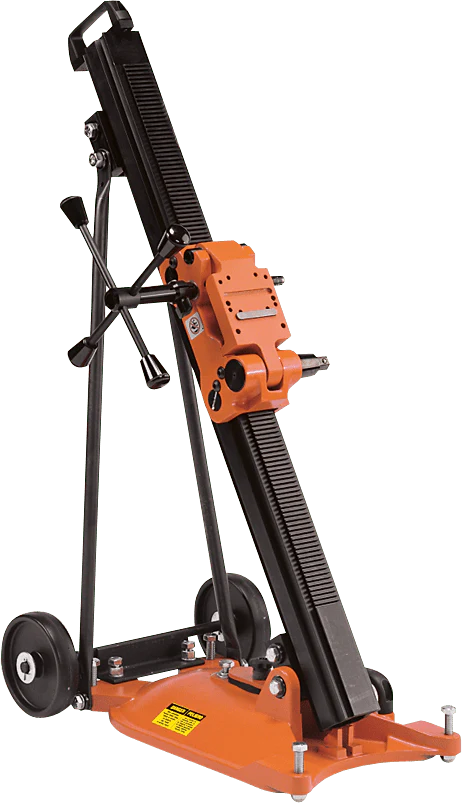

M-5 Heavy Duty Quick Disconnect Core Rig With Weka Motor
M-5 Heavy Duty Quick Disconnect Core Rig With Weka Motor allows for mounting hydraulic motors
12" Standard Bit Capacity, 20" w/Spacers. The Lightest Big Rig On The Market!
Features & Benefits:
- Quick release motor mount
- 4-spoke sliding handle (can be used on right or left)
- Positive carriage lock
- 2-1/2" x 3" extruded aluminum light weight column (mast) that is hard anodized to prevent wear
- Quick release vacuum button
- Top carrying handle (ceiling jack available)
- Large bit capacity in a smaller rig system
- Allows for mounting hydraulic motors
- Angle stand to drill up to 45°
- Double column support for increased stability
- Easily adjustable slide bearings
| Engine/Motor Model | Motor/Engine Power | Engine/Motor Make | Motor RPM | Rig Type | Part Number | Catalog Number |
|---|---|---|---|---|---|---|
| DK22 | 23 amp, 110 volt | Weka | 300/640/960 | Complete rig with add-on vacuum base and vacuum pump | 4220001 | 47175 |
| DK22S | 23 amp, 110 volt | Weka | 420/880/1300 | Complete rig with add-on vacuum base and vacuum pump | 4220002 | 49581 |
| CB744 | 25 amp, 110 volt | Core Bore | 385/530/975/1340 | Complete rig with add-on vacuum base and vacuum pump | 4245110 | 81063 |
| DK22 | 11 Amp Weka DK22 (230V) | Weka | 300/640/960 | Complete rig with add-on vacuum base and vacuum pump | 4220010 | 62089 |
| DK22S | 11 Amp Weka DK22S (230V) | Weka | 420/880/1300 | Complete rig with add-on vacuum base and vacuum pump | 4220011 | 49825 |
| DK22 | 23 amp, 110 volt | Weka | 300/640/960 | Complete rig without vacuum pump | 4220017 | 70410 |
| DK22S | 23 amp, 110 volt | Weka | 420/880/1300 | Complete rig without vacuum pump | 4220018 | 70564 |
| CB744 | 25 amp, 110 volt | Core Bore | 385/530/975/1340 | Complete rig without vacuum pump | 4245108 | 81064 |
| DK22 | 11 Amp Weka DK22 (230V) | Weka | 300/640/960 | Complete rig without vacuum pump | 4220025 | 10187 |
| DK22S | 11 Amp Weka DK22S (230V) | Weka | 420/880/1300 | Complete rig without vacuum pump | 4220026 |
84682 |
