Manual Tilter 50 (Air-Powered) | Custom Made Vacuum Lifters that take a couple weeks to produce

Designed to use an existing compressed air supply, this Powr-Grip® vacuum lifter features 90° tilt for economical and efficient handling of small loads on the production line.

Tilter

Specifications

Stock#	Model#	Description	Capacity	Power
97410	MT1TL6FAIR	Air-powered tilter ideal for production & fabrication.	50 lbs [23 kg]	Air

Standard Vacuum Pad Spread:
6" x 6" [152 x 152 mm]

Standard Vacuum Pad:
6" [15 cm] diameter vacuum pad

Maximum Load Capacity:
50 lbs [23 kg]

Weight of Vacuum Lifter:
3.25 lbs [1.47 kg] without power system

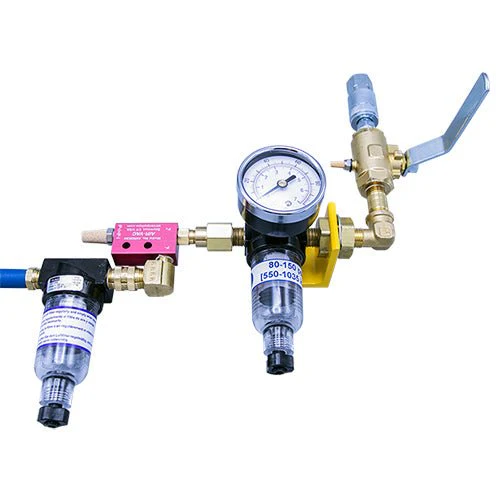

Standard Operating Power:
Compressed air, 2 SCFM [57 liters/minute] @ 80 psi [550 kPa]

Apply / Release Times:
1 second / 2 seconds (approx)

Load Movement:
Manual tilt, 90° between upright and flat

Standard Features:
Vacuum gauge
Vacuum line filter

Load Capacity	50 lbs [23 kg]
Per-Pad Capacity	50 lbs [23 kg]
Pad Model	TL6F
Manual Power	Standard
Weight (Manual)	3.25 lbs
Manipulation	Continuous
Max Pad Spread (L)	6"
Min Pad Spread (L)	6"
Max Pad Spread (W)	6"
Min Pad Spread (W)	6"
Max Height	6"
Min Ambient Temp	32° F [0° C]
Min Load Temp	32° F [0° C]
Max Ambient Temp	100° F [38° C]
Max Load Temp	100° F [38° C]
