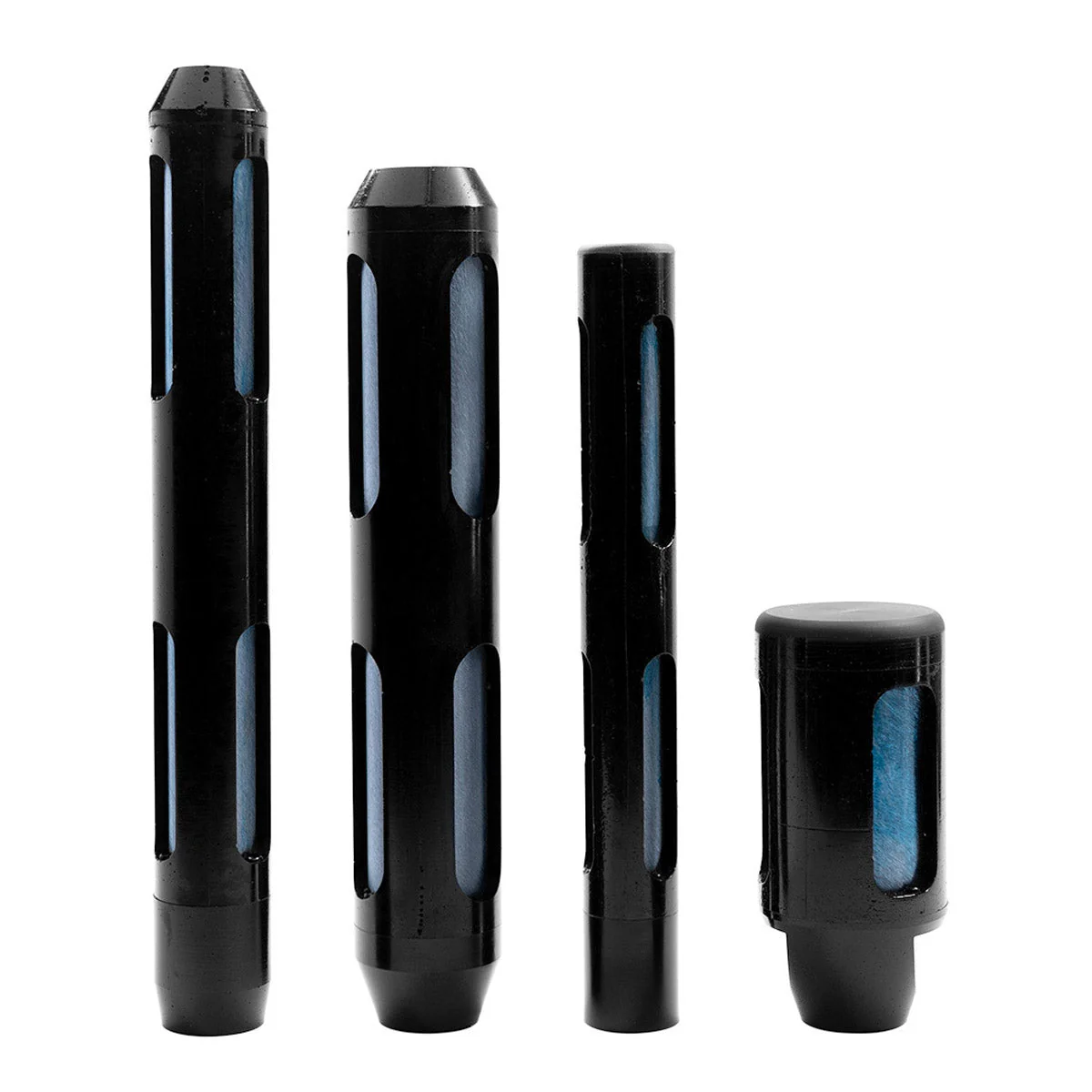

Minnich Flex-Shaft Vibrator Head

Product image 1
1 / 2

Minnich Flex-Shaft Vibrator Head

Minnich Flex-Shaft Vibrator Head

Minnich flex shaft vibrator heads are designed for durability and longevity. Manufactured at Minnich with high-quality steel, flex shaft vibrator heads feature heavy-duty bearings for longer life.

Specifications

Head Diameter Centrifugal Force (10,000 VPM) Amplitude Diameter Influence
3/4" (19mm) 105 LBS (467N) .050" (1.27mm) 4"-6" (101mm-152mm)
1-1/8" (29mm) * 251 LBS (1,119N) .056" (1.42mm) 5"-7" (127mm-177mm)
1-3/8" (35mm) * 451 LBS (2,007N) .070" (1.77mm) 8"-14" (203mm-355mm)
1-3/4" (45mm) 886 LBS (3,943N) .102" (2.59mm) 16"-20" (406mm-508mm)
2" (50mm) * 1,136LBS (5,055N) .090" (2.28mm) 20"-24" (508mm-609mm)
2-3/8" (60mm) 1,620 LBS (7,204N) .092" (2.33mm) 23"-27" (584mm-6685mm)
2-1/2" (63.5mm) * 656 LBS (2,920N) (tilt up) .10" (2.54mm) 14"-16" (355mm-406mm)
*Available in polyurethane coated
Select Head Type
Select Head Diameter
From $84.00

Original: $240.00

-65%
Minnich Flex-Shaft Vibrator Head—

$240.00

$84.00

Product Information

Shipping & Returns

Description

Minnich Flex-Shaft Vibrator Head

Minnich flex shaft vibrator heads are designed for durability and longevity. Manufactured at Minnich with high-quality steel, flex shaft vibrator heads feature heavy-duty bearings for longer life.

Specifications

Head Diameter Centrifugal Force (10,000 VPM) Amplitude Diameter Influence
3/4" (19mm) 105 LBS (467N) .050" (1.27mm) 4"-6" (101mm-152mm)
1-1/8" (29mm) * 251 LBS (1,119N) .056" (1.42mm) 5"-7" (127mm-177mm)
1-3/8" (35mm) * 451 LBS (2,007N) .070" (1.77mm) 8"-14" (203mm-355mm)
1-3/4" (45mm) 886 LBS (3,943N) .102" (2.59mm) 16"-20" (406mm-508mm)
2" (50mm) * 1,136LBS (5,055N) .090" (2.28mm) 20"-24" (508mm-609mm)
2-3/8" (60mm) 1,620 LBS (7,204N) .092" (2.33mm) 23"-27" (584mm-6685mm)
2-1/2" (63.5mm) * 656 LBS (2,920N) (tilt up) .10" (2.54mm) 14"-16" (355mm-406mm)
*Available in polyurethane coated
