Minnich Self-Propelled Barrier Wall Drill - Standard 3-Gang
Minnich Self-Propelled Barrier Wall Drill - Standard 3-Gang

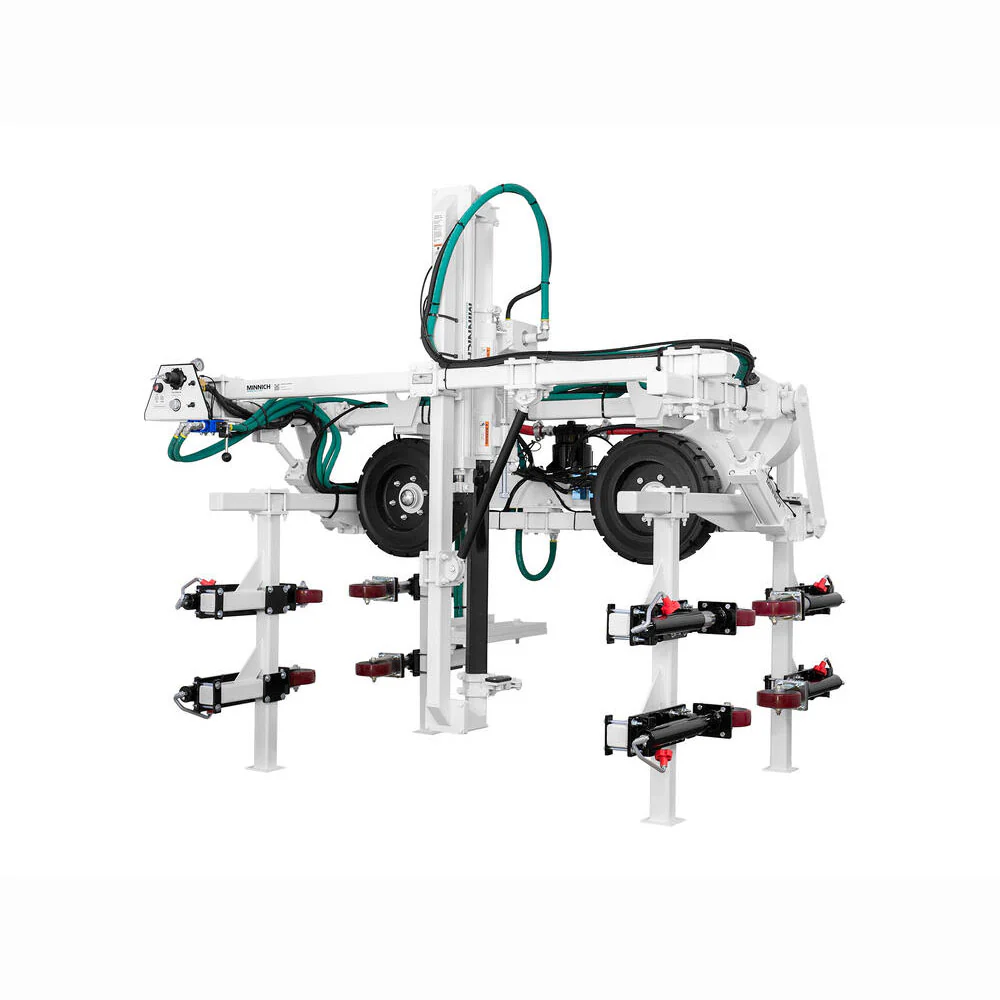

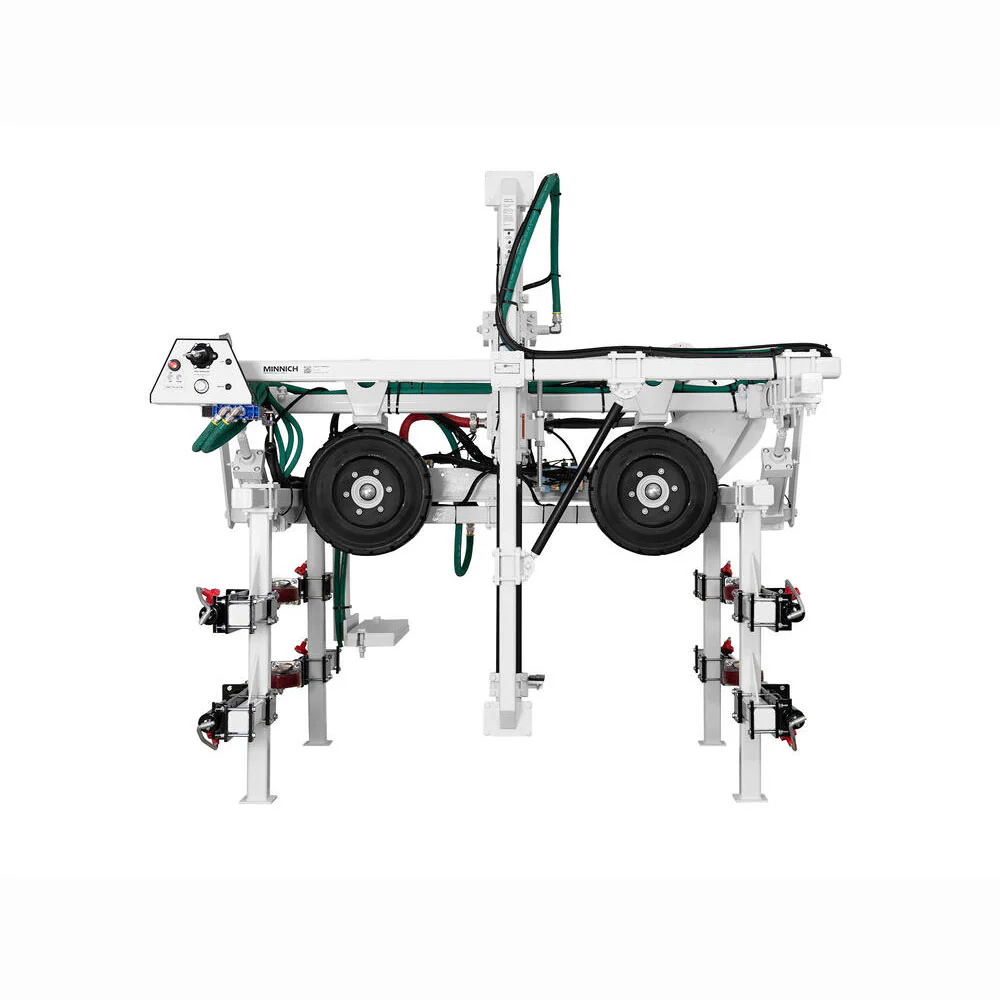

Minnich's Barrier Wall Drill - a self propelled, pneumatic drill specifically designed to optimize efficiency and safety during the process of securing barrier walls.
The Minnich Barrier Wall Drill features vertically-mounted drills, strategically positioned to ensure precise and effective drilling operations. Its design allows the drill to travel seamlessly across each section of the temporary wall while riding along the top with utmost stability.
Operating from the non-traffic side of the barrier, the operator gains full control using a tethered controller, enabling the simultaneous drilling of up to three pin holes through pre-molded openings in the wall. These holes extend through the road and penetrate the sub-base, creating a robust foundation for anchoring the barrier wall using steel pins.

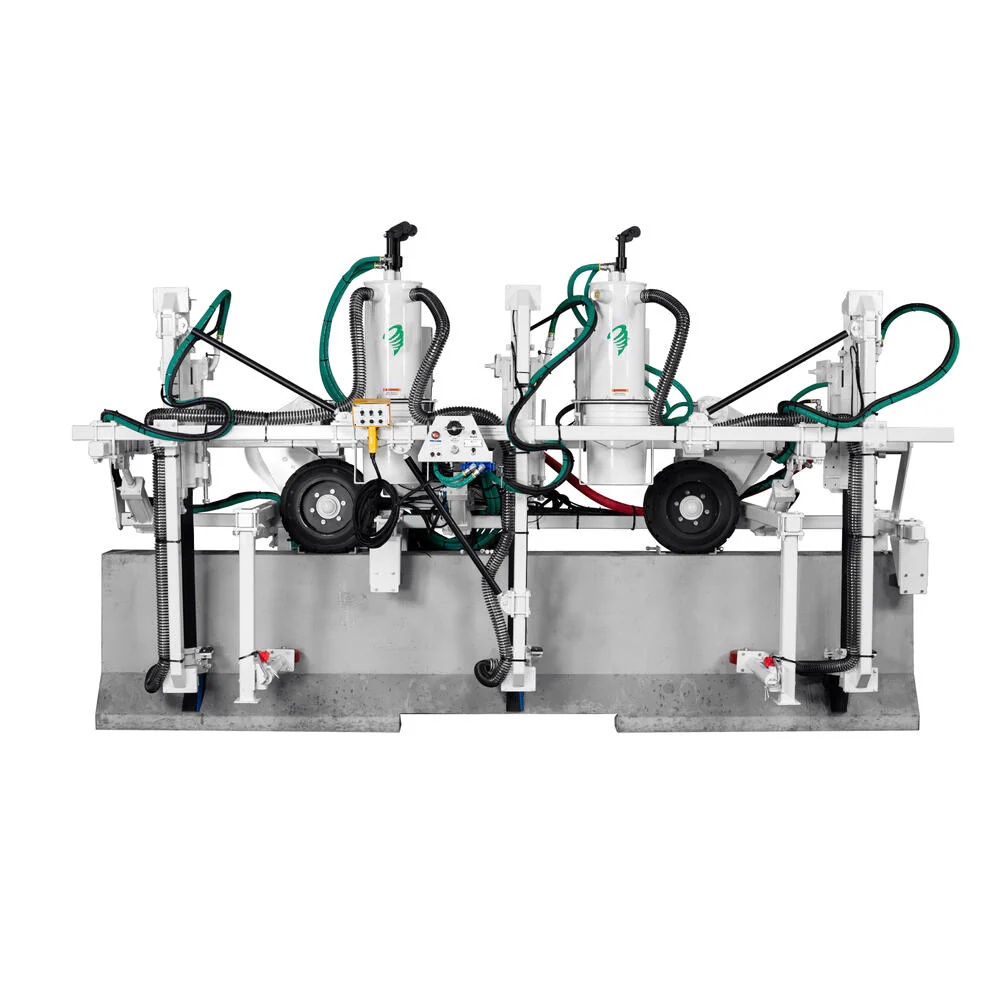

To further enhance the drilling experience, an optional dust collection system is also available, ensuring a cleaner and safer working environment.
Features
Tilt

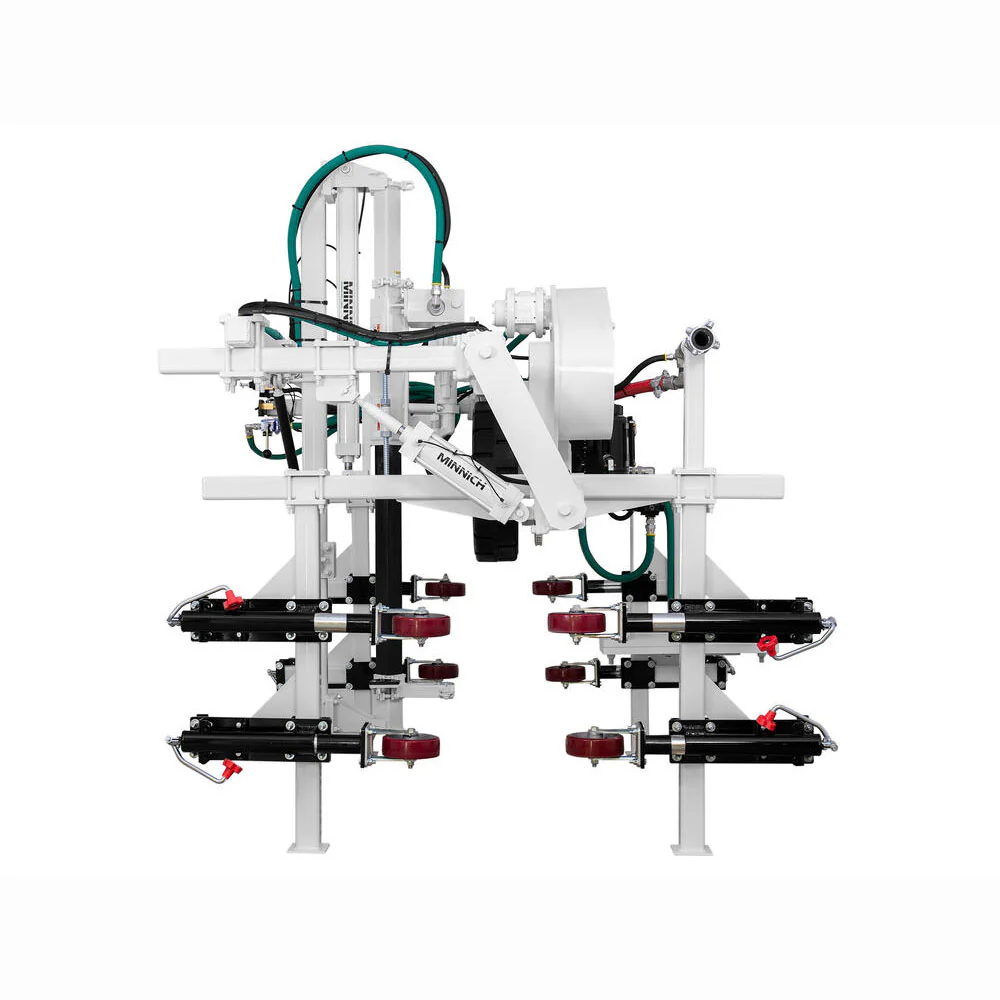

The barrier wall drill is outfitted with dual cylinders positioned on each side, enabling lateral tilting along the x-axis. This feature facilitates seamless pivoting of the drill in and out of holes, streamlining the transition between drilling and repositioning, resulting in enhanced efficiency and ease of operation.
Low Oil Indicator
The float oil indicator serves the function of automatically disabling the drill hammer when oil levels reach a low point. By preventing dry firing, this feature significantly extends the hammer's lifespan. During this state, the drill itself will continue to function, but the hammer firing mechanism will shut off until optimal oil levels are restored. This ensures the longevity and optimal performance of the equipment.
Self Propelled
The unit is equipped with an air-powered motor, which propels the equipment along the barrier wall from hole to hole, eliminating the requirement for manual intervention. A single motor, utilizing a chain drive mechanism, facilitates seamless forward and backward movement of the unit along the entire length of the barrier wall, optimizing operational convenience and productivity.
Remote
The unit is designed with a tethered handheld remote, enabling the operator to maintain a safe distance from the drill during operation. This feature offers the operator an enhanced vantage point of the drilling location and the machine's functioning, ensuring optimal visibility and safety during the drilling process.
Specifications
| Drill Steel Shank | 1" x 4.25" |
| Drill Bit Diameter | 1" -2.50" |
| Max Drill Depth | 23.5" |
| Required SCFM | 140 |
| Required PSI | 120 |
| Approximate Weight | 1630 Lbs |
