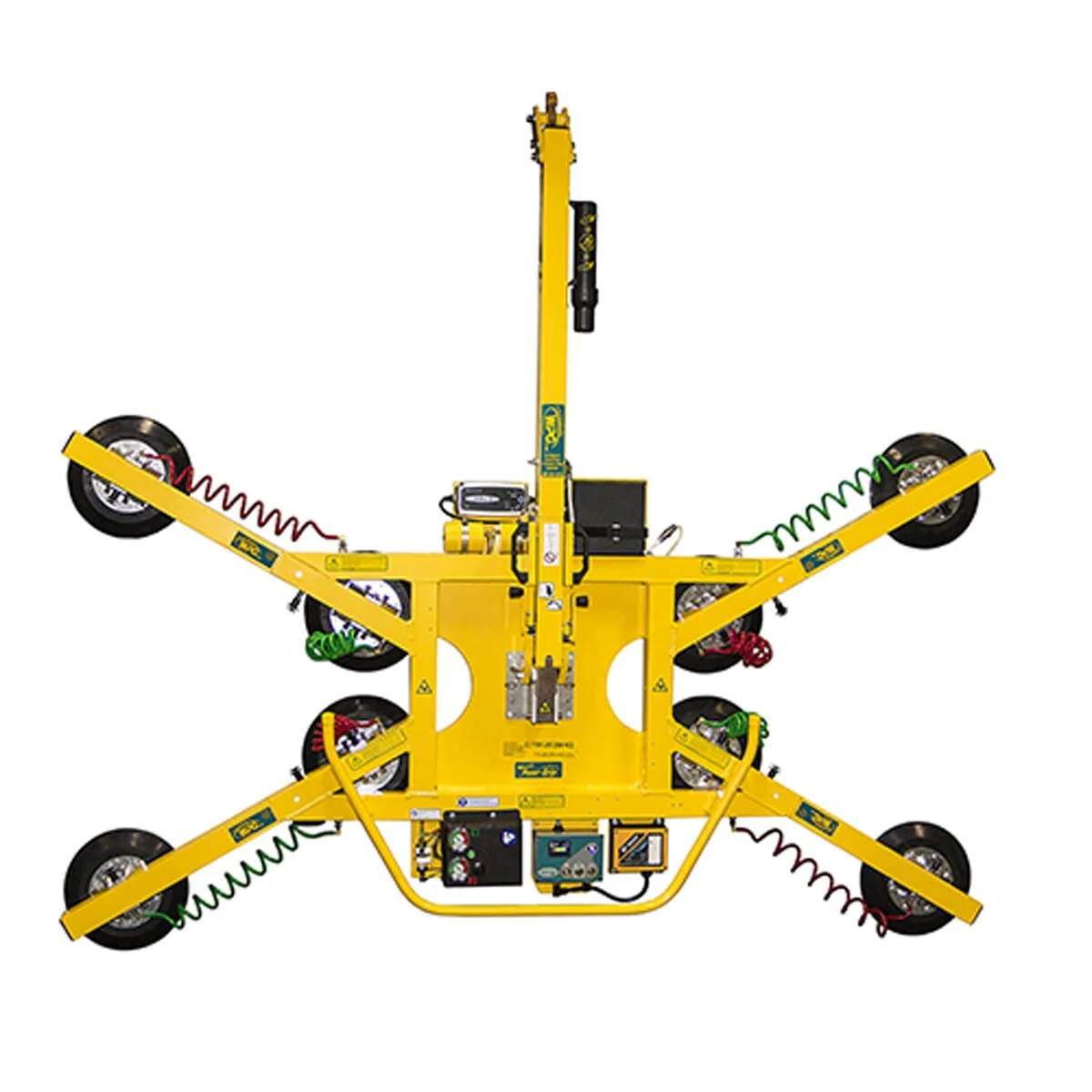

MRTALP Lifter Series
This lifter features a low profile, allowing it to operate in narrow spaces. T-Arm and extension options allow this lifter to also handle insulated metal panels.
Dual Vacuum models now available w/ Intelli-Grip® Technology, automatically monitoring vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.
Rotator/Tilter
| 98735 | MRTALP811LDC3 |
Flat and smooth surfaces lifter w/ Intelli-Grip and Dual Vacuum System. Ideal for glass and other materials. |
1100 lbs [500 kg] | DC |
| 98730 | MRTALP810TDC3 |
Flat and textured surfaces lifter w/ Intelli-Grip and Dual Vacuum System. Ideal for textured surfaces in Construction/Installation settings. |
1100 lbs [500 kg] | DC |
| 98741 | MRTALP4625DC3 |
Panel Master: Insulated Metal Panel lifter w/ Intelli-Grip and Dual Vacuum System. |
600 lbs [270 kg] | DC |
Specifications (MRTALP)
Standard Pad Spread:
- Minimum Width: 17" [43 cm]
- Maximum Width: 52-3/4" [134 cm]
- Minimum Length: 44-1/2" [113 cm]
- Maximum Length: 102" [259 cm]
Load Movement:
Manual rotation, 180° edgewise, with locking every 30° Assisted manual tilt, 90° between upright and flat, with automatic latching in upright position
More Features:
Intelli-Grip Technology / Dual Vacuum System / Adjustable-Position Lift Spool / High Capacity Battery and Charger / Battery Gauge / Notification Buzzer and Strobe Light / Green Lift Light / Vacuum Gauges / Vacuum Line Filters / Vacuum Reserve Tanks / Spring-Mounted Vacuum Pads / (Re)movable Pad Mounts / and More
Specifications (Panel Master)
Standard Pad Spread:
- Maximum: 37" x 92-1/2" [94 cm x 235 cm]Â Â Â
- Minimum: 20" x 92-1/2" [51 cm x 235 cm]
Load Movement:
Manual rotation, 180° edgewise, with locking every 30° Assisted manual tilt, 90° between upright and flat, with automatic latching in upright position
More Features:
Intelli-Grip Technology / Dual Vacuum System / Adjustable-Position Lift Spool / High Capacity Battery and Charger / Battery Gauge / Notification Buzzer and Strobe Light / Green Lift Light / Vacuum Gauges / Vacuum Line Filters / Vacuum Reserve Tanks / Spring-Mounted Vacuum Pads / Movable Pad Mounts /Â Pad Frame T-Arm Assemblies / and More
Original: $9,981.00
-65%$9,981.00
$3,493.35Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This lifter features a low profile, allowing it to operate in narrow spaces. T-Arm and extension options allow this lifter to also handle insulated metal panels.
Dual Vacuum models now available w/ Intelli-Grip® Technology, automatically monitoring vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.
Rotator/Tilter
| 98735 | MRTALP811LDC3 |
Flat and smooth surfaces lifter w/ Intelli-Grip and Dual Vacuum System. Ideal for glass and other materials. |
1100 lbs [500 kg] | DC |
| 98730 | MRTALP810TDC3 |
Flat and textured surfaces lifter w/ Intelli-Grip and Dual Vacuum System. Ideal for textured surfaces in Construction/Installation settings. |
1100 lbs [500 kg] | DC |
| 98741 | MRTALP4625DC3 |
Panel Master: Insulated Metal Panel lifter w/ Intelli-Grip and Dual Vacuum System. |
600 lbs [270 kg] | DC |
Specifications (MRTALP)
Standard Pad Spread:
- Minimum Width: 17" [43 cm]
- Maximum Width: 52-3/4" [134 cm]
- Minimum Length: 44-1/2" [113 cm]
- Maximum Length: 102" [259 cm]
Load Movement:
Manual rotation, 180° edgewise, with locking every 30° Assisted manual tilt, 90° between upright and flat, with automatic latching in upright position
More Features:
Intelli-Grip Technology / Dual Vacuum System / Adjustable-Position Lift Spool / High Capacity Battery and Charger / Battery Gauge / Notification Buzzer and Strobe Light / Green Lift Light / Vacuum Gauges / Vacuum Line Filters / Vacuum Reserve Tanks / Spring-Mounted Vacuum Pads / (Re)movable Pad Mounts / and More
Specifications (Panel Master)
Standard Pad Spread:
- Maximum: 37" x 92-1/2" [94 cm x 235 cm]Â Â Â
- Minimum: 20" x 92-1/2" [51 cm x 235 cm]
Load Movement:
Manual rotation, 180° edgewise, with locking every 30° Assisted manual tilt, 90° between upright and flat, with automatic latching in upright position
More Features:
Intelli-Grip Technology / Dual Vacuum System / Adjustable-Position Lift Spool / High Capacity Battery and Charger / Battery Gauge / Notification Buzzer and Strobe Light / Green Lift Light / Vacuum Gauges / Vacuum Line Filters / Vacuum Reserve Tanks / Spring-Mounted Vacuum Pads / Movable Pad Mounts /Â Pad Frame T-Arm Assemblies / and More
