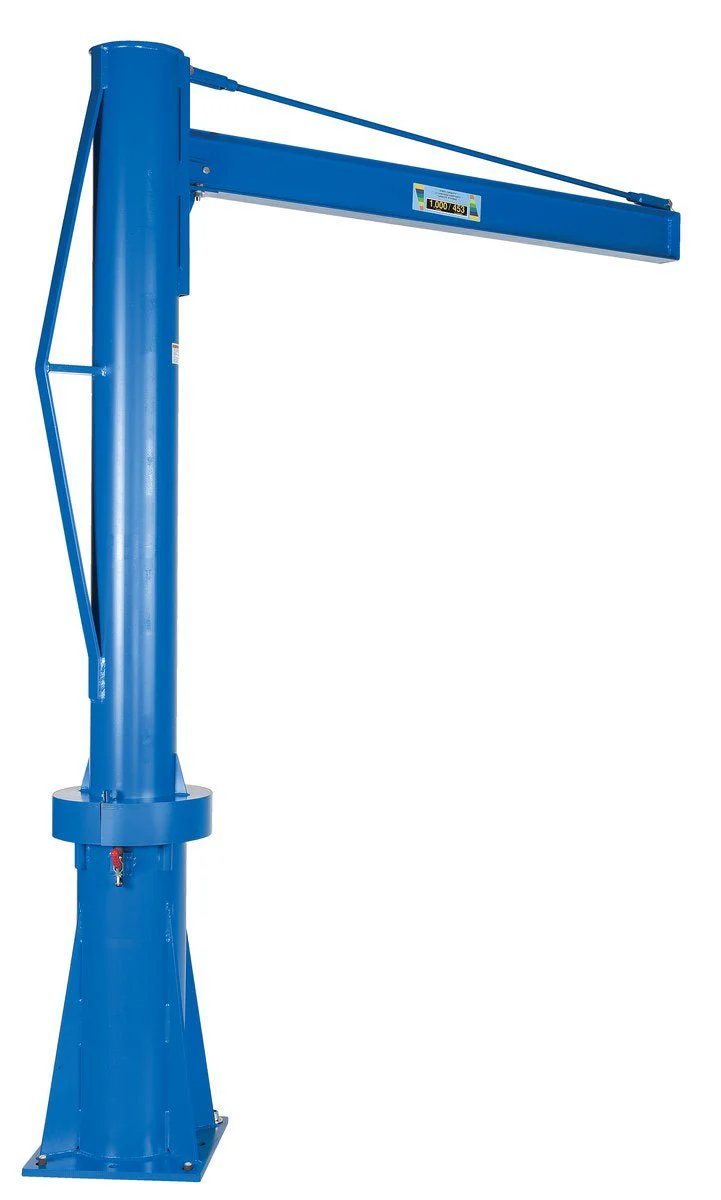

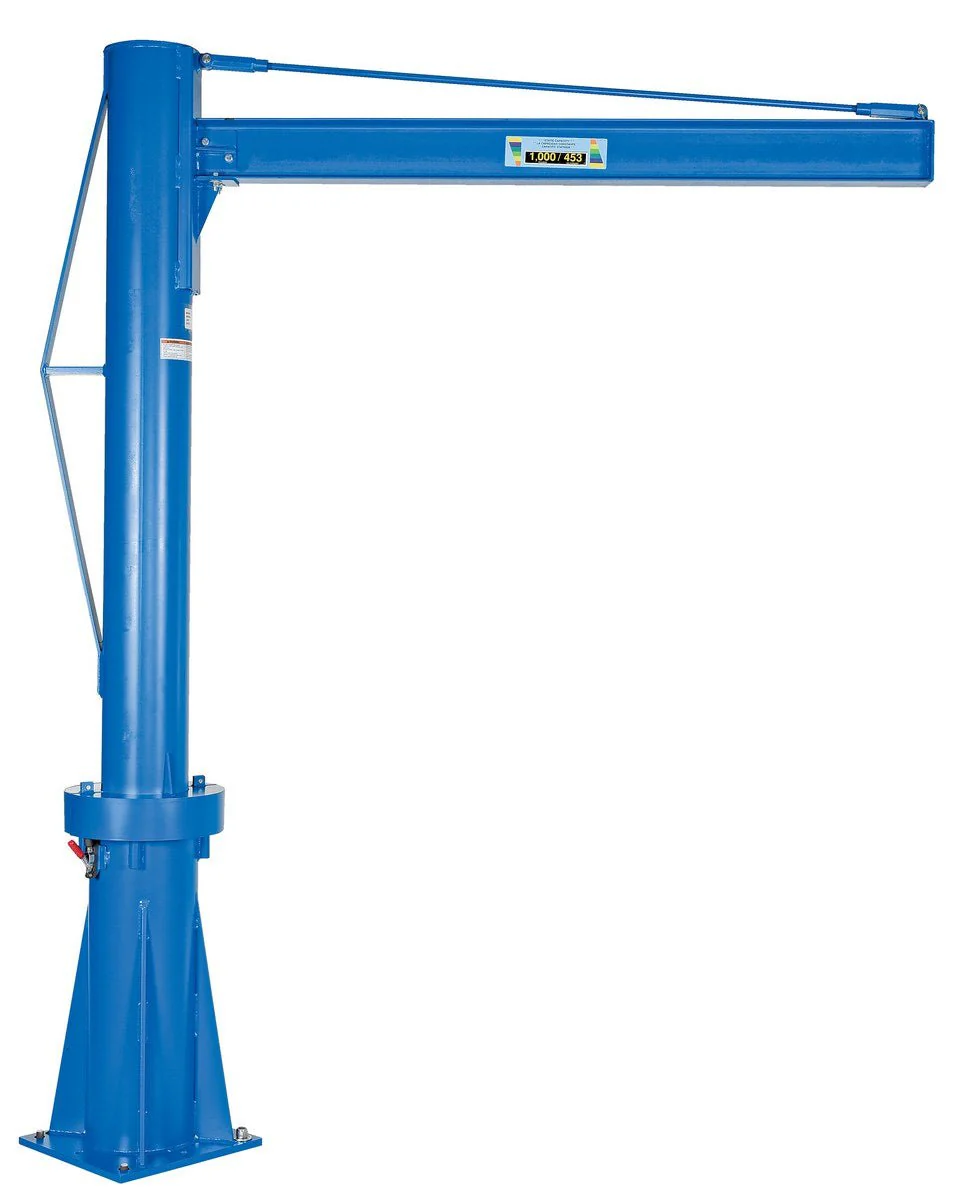

Multi-Station Transportable Jib Cranes
Multi-Station Transportable Jib Cranes designed for use in multiple locations, includes jib crane and one base socket
Extra base sockets may be purchased for use in other locations. Friction brake design allows positive locking and controlled rotation of heavy loads. 360 degree continuous rotation of heavy loads. Handle most applications up to 1,000 lbs. 6" high I-beam with 4" flange width. Rugged welded steel construction. Requires reinforced concrete pad for installation. Hoist and trolley sold separately. Painted finish.KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Multi-Station Transportable Jib Cranes | |||||
| Model | Overall Boom Length |
Usable Height |
Capacity (lbs) |
Wt. (lbs) |
|
| JIB-P-10-6-6 | |
72" | 71-13/16" | 1,000 | 603 |
| JIB-P-10-6-8 | |
72" | 95-13/16" | 1,000 | 701 |
| JIB-P-10-6-10 | |
72" | 119-13/16" | 1,000 | 731 |
| JIB-P-10-8-6 | |
96" | 71-13/16" | 1,000 | 606 |
| JIB-P-10-8-8 | |
96" | 95-13/16" | 1,000 | 683 |
| JIB-P-10-8-10 | |
96" | 119-13/16" | 1,000 | 773 |
| JIB-P-10-10-6 | |
120" | 71-13/16" | 1,000 | 710 |
| JIB-P-10-10-8 | |
120" | 95-13/16" | 1,000 | 790 |
| JIB-P-10-10-10 | |
120" | 119-13/16" | 1,000 | 805 |
Select Overall Boom Length
Select Usable Height
From $796.41
Original: $2,275.45
-65%Multi-Station Transportable Jib Cranes—
$2,275.45
$796.41Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Multi-Station Transportable Jib Cranes designed for use in multiple locations, includes jib crane and one base socket
Extra base sockets may be purchased for use in other locations. Friction brake design allows positive locking and controlled rotation of heavy loads. 360 degree continuous rotation of heavy loads. Handle most applications up to 1,000 lbs. 6" high I-beam with 4" flange width. Rugged welded steel construction. Requires reinforced concrete pad for installation. Hoist and trolley sold separately. Painted finish.KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Multi-Station Transportable Jib Cranes | |||||
| Model | Overall Boom Length |
Usable Height |
Capacity (lbs) |
Wt. (lbs) |
|
| JIB-P-10-6-6 | |
72" | 71-13/16" | 1,000 | 603 |
| JIB-P-10-6-8 | |
72" | 95-13/16" | 1,000 | 701 |
| JIB-P-10-6-10 | |
72" | 119-13/16" | 1,000 | 731 |
| JIB-P-10-8-6 | |
96" | 71-13/16" | 1,000 | 606 |
| JIB-P-10-8-8 | |
96" | 95-13/16" | 1,000 | 683 |
| JIB-P-10-8-10 | |
96" | 119-13/16" | 1,000 | 773 |
| JIB-P-10-10-6 | |
120" | 71-13/16" | 1,000 | 710 |
| JIB-P-10-10-8 | |
120" | 95-13/16" | 1,000 | 790 |
| JIB-P-10-10-10 | |
120" | 119-13/16" | 1,000 | 805 |
