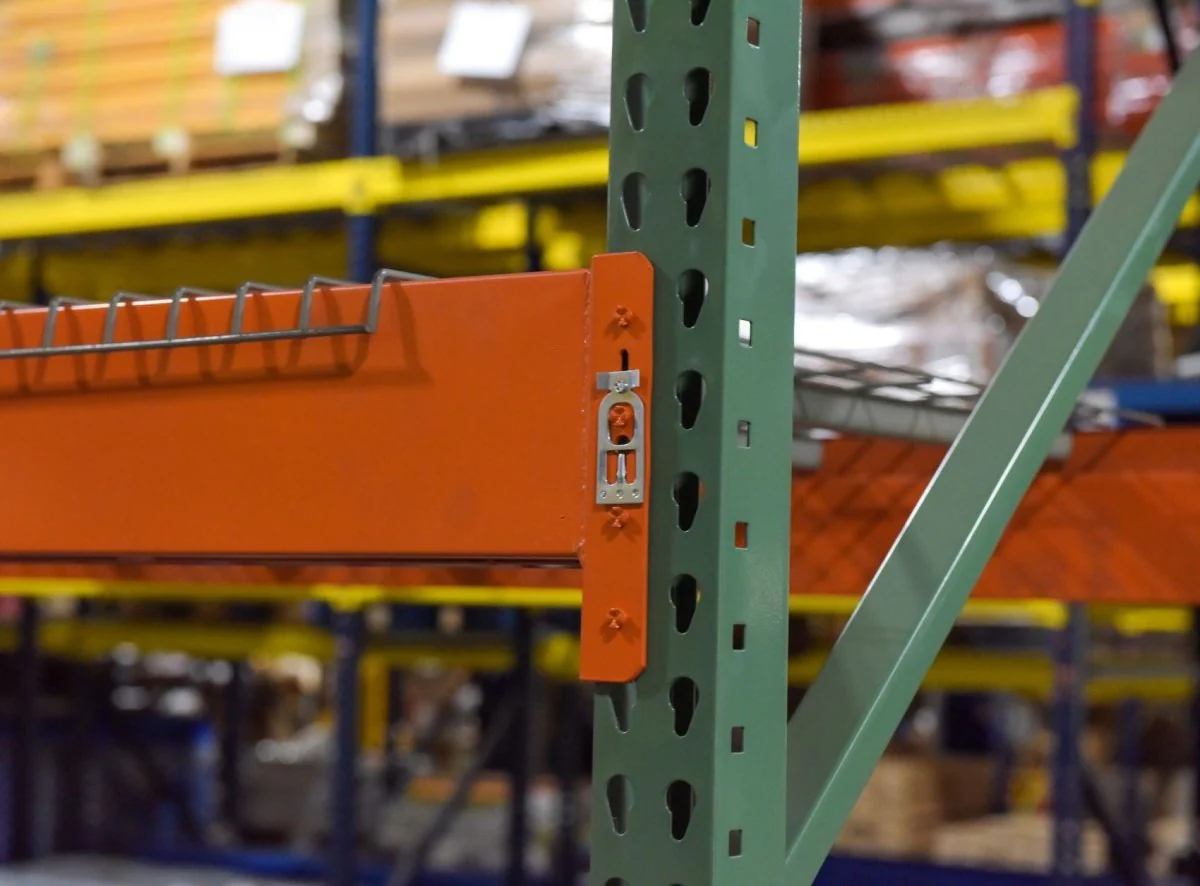

Pallet Racking
Pallet Racking solves the storage and retrieval needs faced by most industries today. Adaptability to specific layout installations is just one added feature. Units are sold 'Each'.
- Scratch and Rust Resistance
- Surface Features Powder Coat Finish
- Structural Uniformity and Integrity
|
Pallet Racking |
|||||||
|

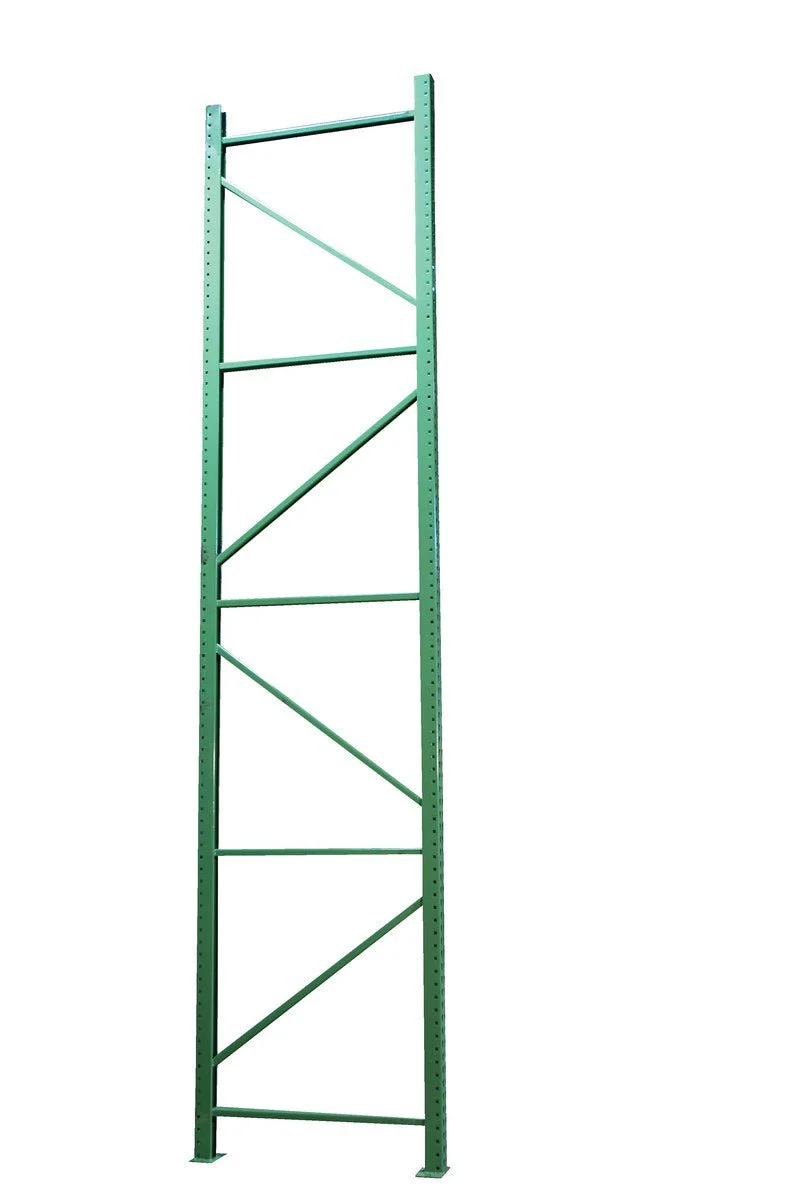

Frame |
|||||||
| Model | Image | Frame Height |
Frame Depth |
Capacity Per Each Upright (lbs) |
Wt. (lbs) |
||
| PRTD-10-42-19 |  |

|
120" | 42" | 19,380 | 139 | |
| PRTD-10-42-24 | |
|
120" | 42" | 24,000 | 171 | |
| PRTD-12-42-19 | |
|
144" | 42" | 19,380 | 162 | |
| PRTD-12-42-24 | |
|
144" | 42" | 24,000 | 173 | |
| PRTD-14-42-19 |
|
|
168" | 42" | 19,380 | 187 | |
| PRTD-14-42-24 | |
|
168" | 42" | 24,000 | 183 | |
| PRTD-16-42-19 | |
|
192" | 42" | 19,380 | 226 | |
| PRTD-16-42-24 | |
|
192" | 42" | 24,000 | 180 | |
|

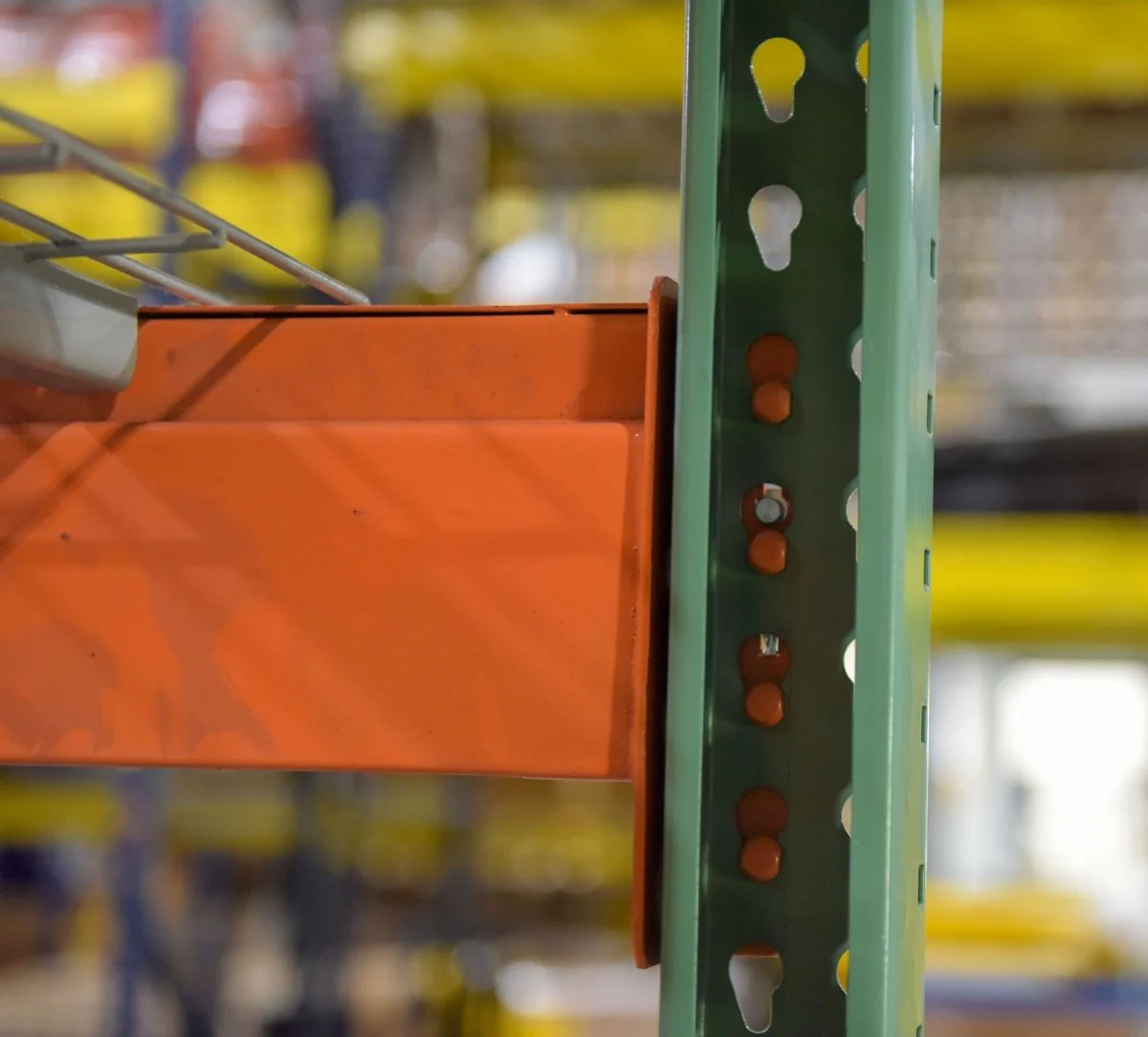

Step Beam |
|||||||
| Model | Image | Beam Height |
Beam Length |
Capacity Per Pair (lbs) |
Wt. (lbs) |
||
| BEAM-S-850 |  |
|
6" | 96" | 5,000 | 66 | |
| BEAM-S-870 |  |
|
6" | 96" | 7,000 | 70 | |
| BEAM-S-960 |  |
|
6" | 108" | 6,000 | 78 | |
| BEAM-S-970 |  |
|
6" | 108" | 7,000 | 82 | |
| BEAM-S-1050 |  |
|
6" | 120" | 5,000 | 75 | |
| BEAM-S-1070 |  |
|
6" | 120" | 7,000 | 82 | |
| BEAM-S-1250 |  |
|
6" | 144" | 5,000 | 105 | |
| BEAM-S-1260 |  |
|
6" | 144" | 6,000 | 115 | |
|

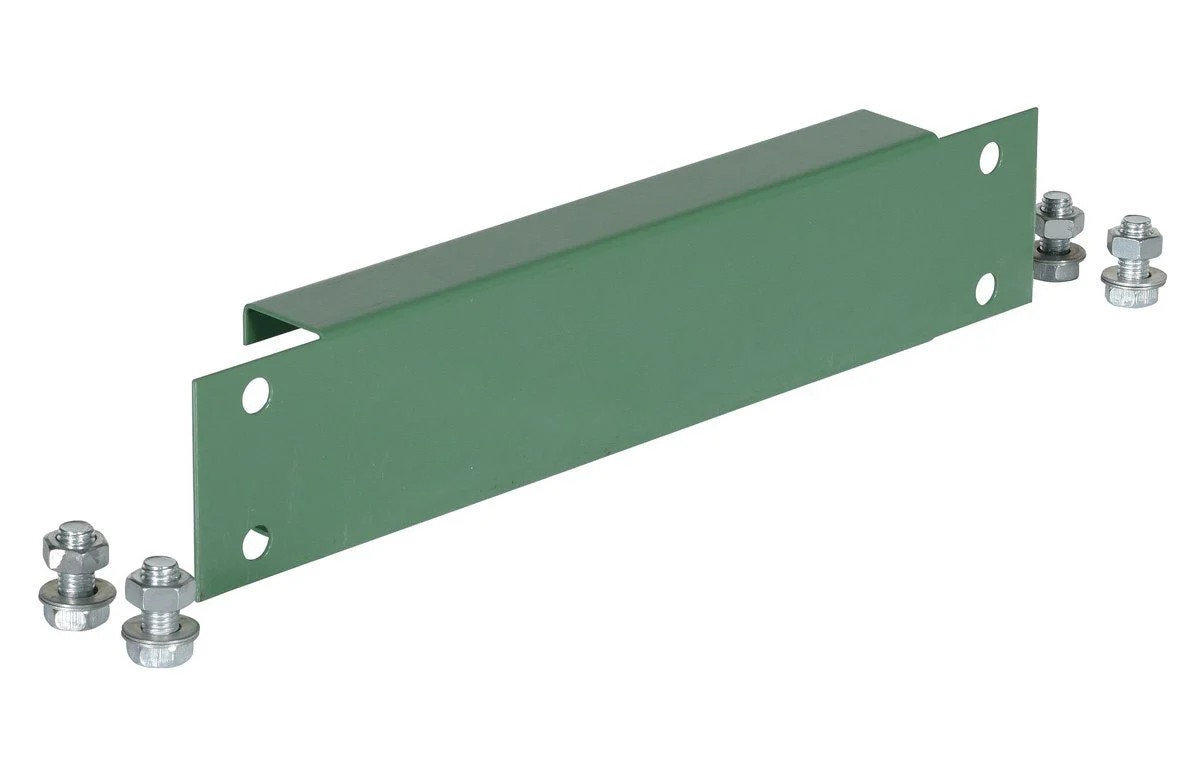

Frame Spacer - Separates Back To Back Frames |
|||||||
| Model | Image | Frame Spacer | Wt. (lbs) |
||||
| FSR-6 |  |
|
6" | 2 | |||
| FSR-12 |  |
|
12" | 2 | |||
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Select Pallet Frames, Beams, & Spacers
From $85.26
Original: $243.60
-65%Pallet Racking—
$243.60
$85.26Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Pallet Racking solves the storage and retrieval needs faced by most industries today. Adaptability to specific layout installations is just one added feature. Units are sold 'Each'.
- Scratch and Rust Resistance
- Surface Features Powder Coat Finish
- Structural Uniformity and Integrity
|
Pallet Racking |
|||||||
|
Frame |
|||||||
| Model | Image | Frame Height |
Frame Depth |
Capacity Per Each Upright (lbs) |
Wt. (lbs) |
||
| PRTD-10-42-19 | |
|
120" | 42" | 19,380 | 139 | |
| PRTD-10-42-24 | |
|
120" | 42" | 24,000 | 171 | |
| PRTD-12-42-19 | |
|
144" | 42" | 19,380 | 162 | |
| PRTD-12-42-24 | |
|
144" | 42" | 24,000 | 173 | |
| PRTD-14-42-19 |
|
|
168" | 42" | 19,380 | 187 | |
| PRTD-14-42-24 | |
|
168" | 42" | 24,000 | 183 | |
| PRTD-16-42-19 | |
|
192" | 42" | 19,380 | 226 | |
| PRTD-16-42-24 | |
|
192" | 42" | 24,000 | 180 | |
|
Step Beam |
|||||||
| Model | Image | Beam Height |
Beam Length |
Capacity Per Pair (lbs) |
Wt. (lbs) |
||
| BEAM-S-850 | |
|
6" | 96" | 5,000 | 66 | |
| BEAM-S-870 | |
|
6" | 96" | 7,000 | 70 | |
| BEAM-S-960 | |
|
6" | 108" | 6,000 | 78 | |
| BEAM-S-970 | |
|
6" | 108" | 7,000 | 82 | |
| BEAM-S-1050 | |
|
6" | 120" | 5,000 | 75 | |
| BEAM-S-1070 | |
|
6" | 120" | 7,000 | 82 | |
| BEAM-S-1250 | |
|
6" | 144" | 5,000 | 105 | |
| BEAM-S-1260 | |
|
6" | 144" | 6,000 | 115 | |
|
Frame Spacer - Separates Back To Back Frames |
|||||||
| Model | Image | Frame Spacer | Wt. (lbs) |
||||
| FSR-6 | |
|
6" | 2 | |||
| FSR-12 | |
|
12" | 2 | |||
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
