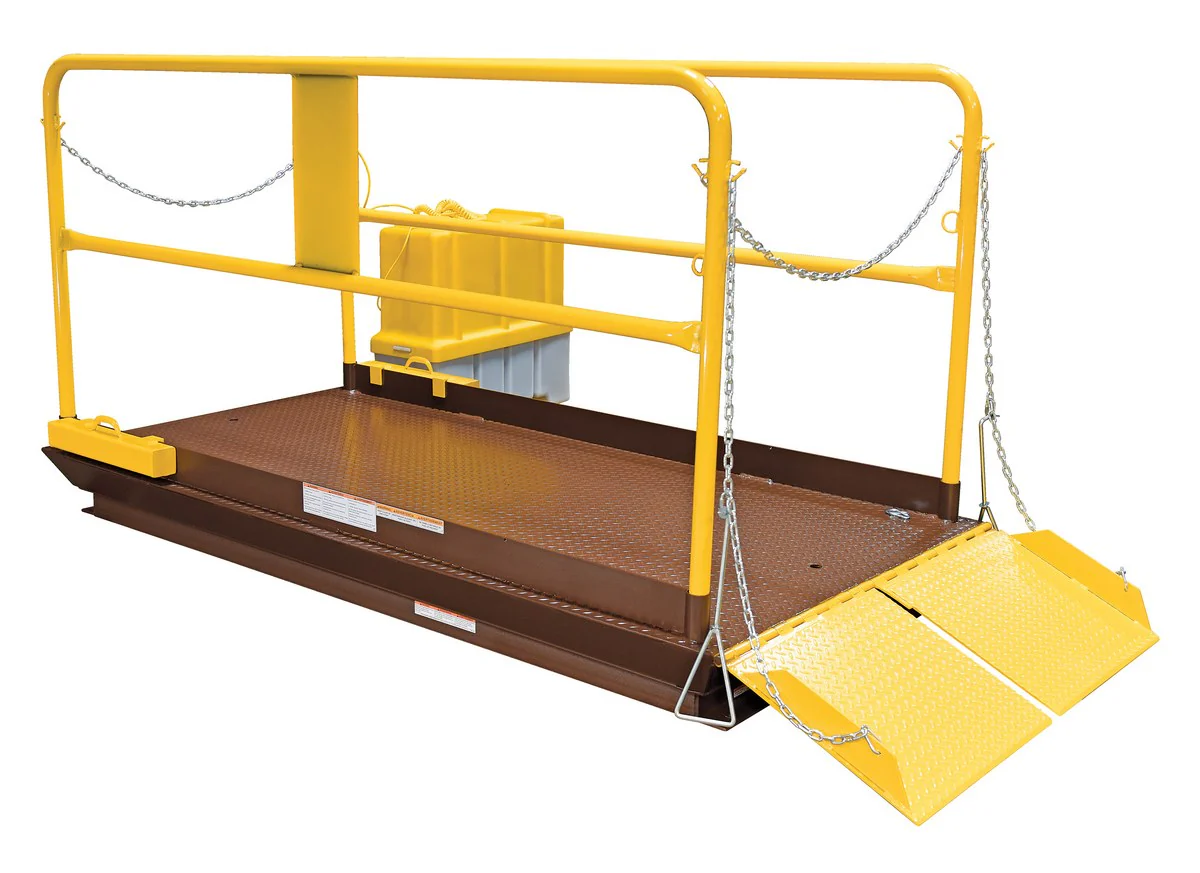

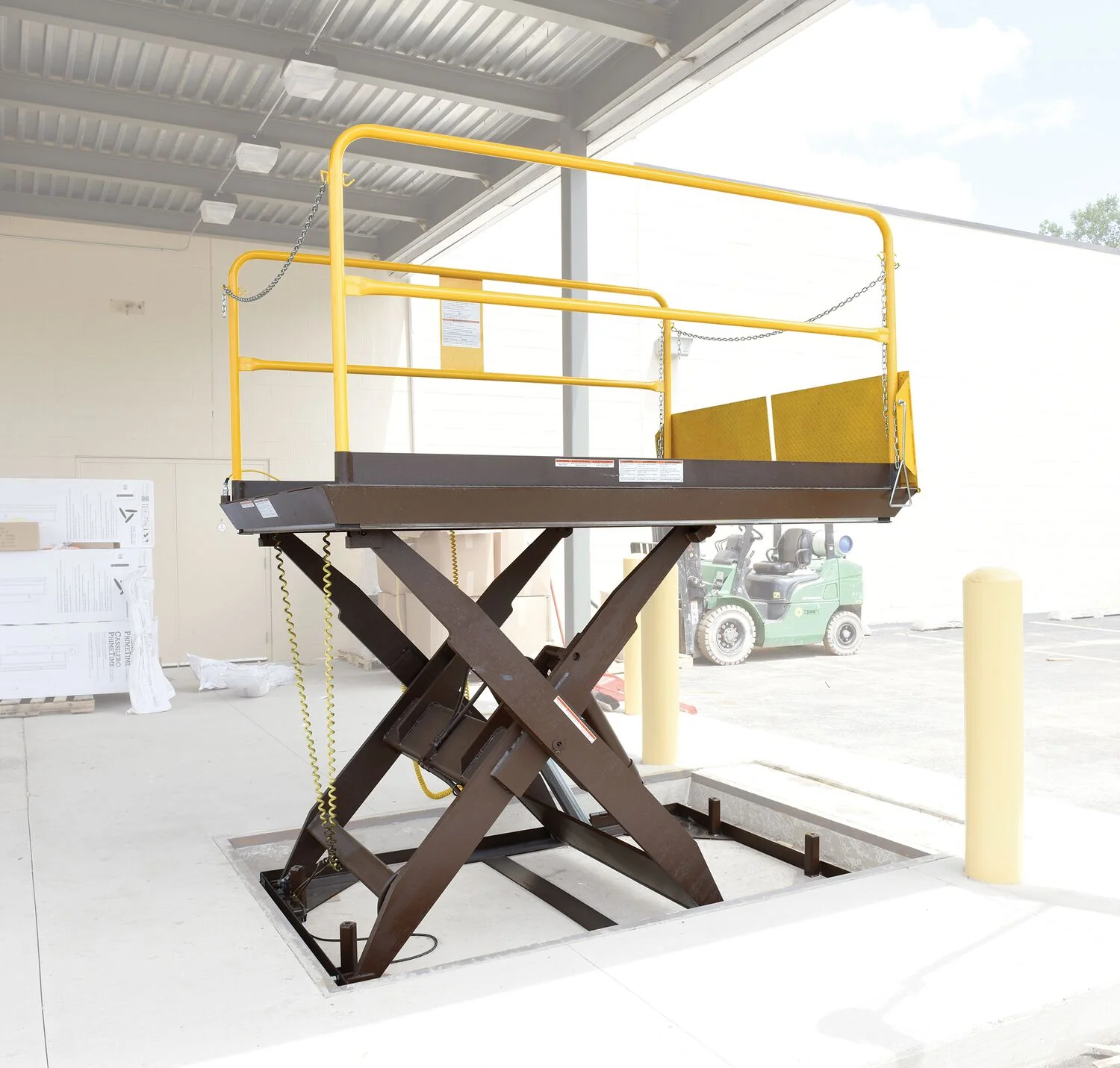

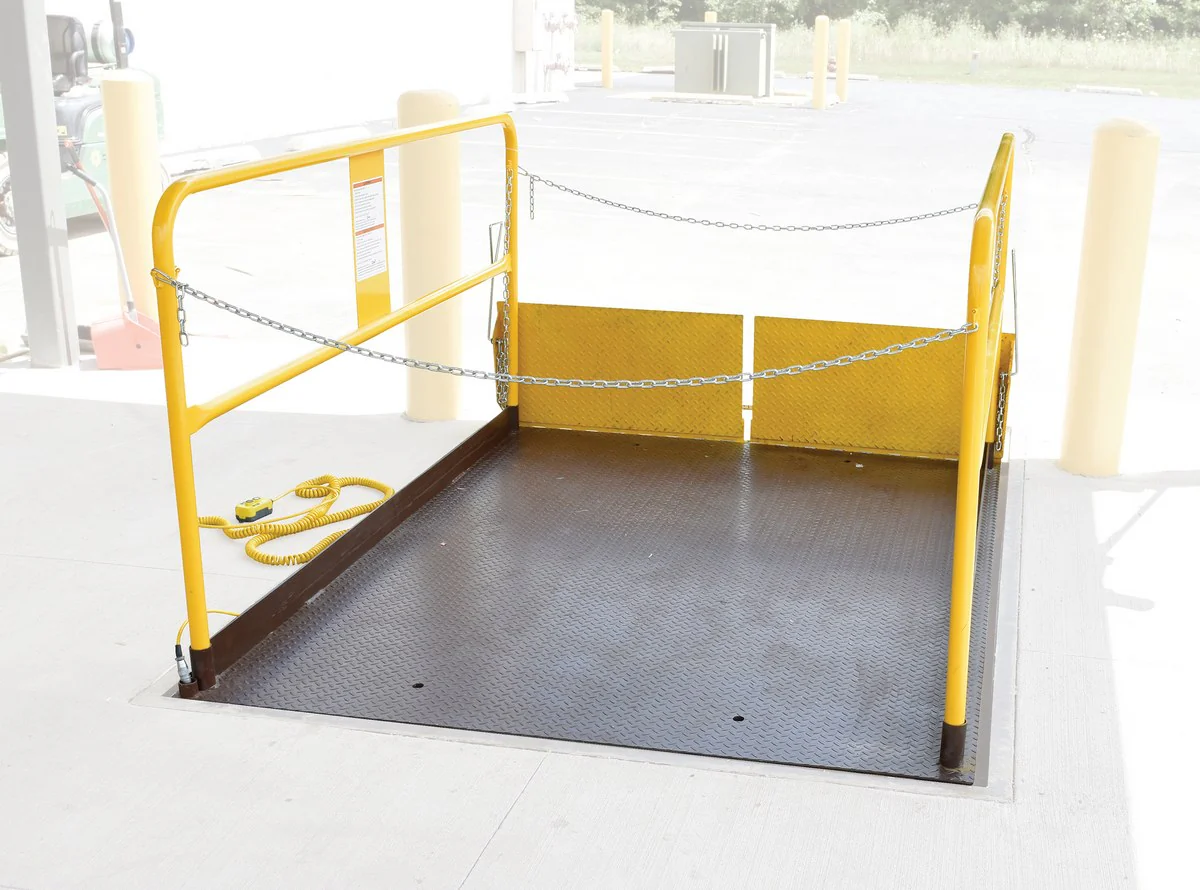

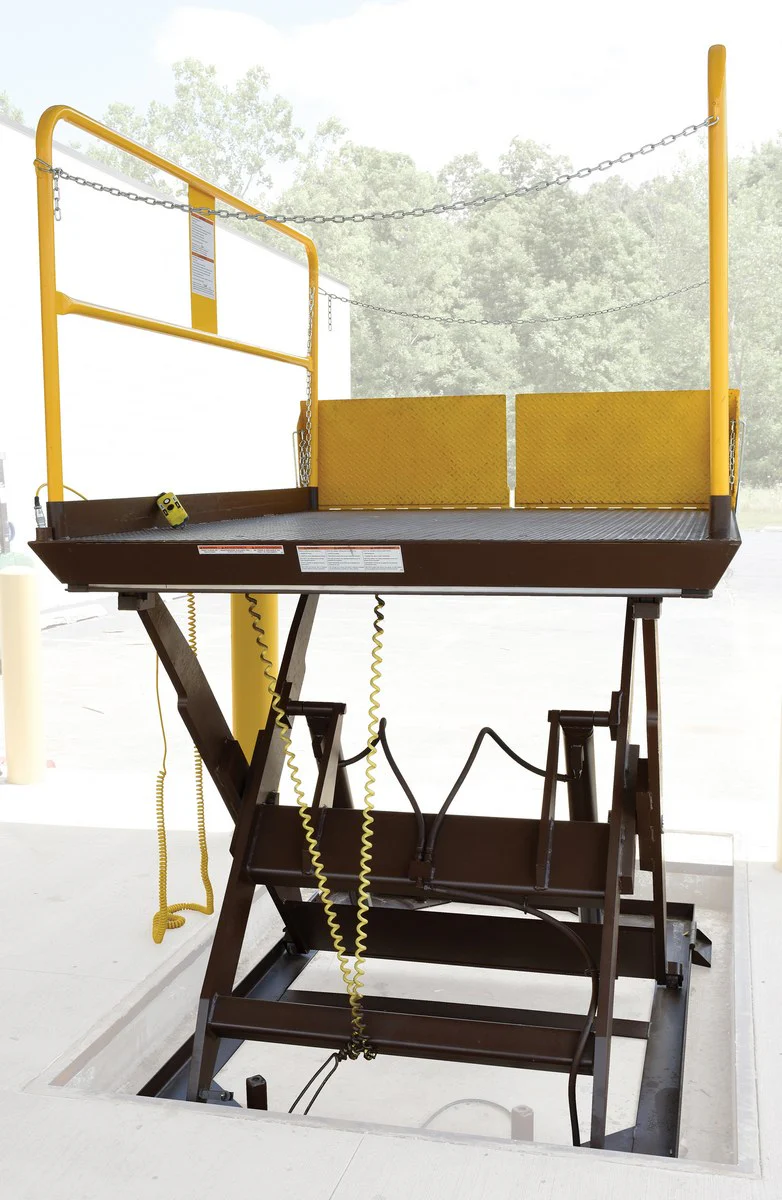

Premium Truck Scissor Dock Lifts
Heavy-duty truck scissor dock lifts provide a safe and efficient solution for ground-level trailer loading.
Designed for facilities without traditional loading docks, these lifts bridge the gap between ground level and trailer height to improve productivity and reduce manual strain. Built with heavy-gauge steel construction and a non-slip diamond plate platform, they deliver long-lasting durability for warehouses, distribution centers, and manufacturing environments.
With multiple platform sizes, lift heights, and capacities available, these dock lifts can be configured to meet a wide range of material handling requirements.
Features
- Heavy-Duty Construction: Built with reinforced steel and diamond plate platform for long-term durability
- Enhanced Safety Systems: Includes velocity fuses, overload relief valves, and upper travel limit switches
- Toe Guard Protection: Full-perimeter electric toe guard stops descent if obstruction is detected
- Flexible Operation: Push-button pendant controls with extended coil cord for ease of use
- External Power Unit: Allows for convenient installation and maintenance access
- Operator Safety: Removable handrails and fixed toe boards improve jobsite safety
Applications
Ideal for ground-level loading, pallet jack handling, and trailer servicing. Commonly used in shipping and receiving operations, logistics hubs, and production facilities where efficiency and safety are critical.
Configurations & Options
Available in multiple platform sizes, lift heights, and weight capacities. Optional features include approach ramps, bridge plates, warning systems, additional power units, and specialized coatings to meet specific operational needs.
Specifications
| Model | Platform Size (WxL) | Lowered Height | Raised Height | Capacity (lbs) | Overall Frame Size (WxL) | Weight (lbs) |
| WL-100-5-48 | 48" x 96" | 8" | 68" | 5,000 | 41" x 93" | 2850 |
| WL-100-5-68 | 72" x 96" | 8" | 68" | 5,000 | 62" x 93" | 3539 |
| WL-100-5-78 | 84" x 96" | 8" | 68" | 5,000 | 62" x 93" | 3549 |
| WL-100-5-88* | 96" x 96" | 8" | 68" | 5,000 | 86" x 93" | 3869 |
| WL-100-5-610 | 72" x 120" | 8" | 68" | 5,000 | 62" x 118" | 4166 |
| WL-100-5-710 | 84" x 120" | 8" | 68" | 5,000 | 62" x 118" | 4074 |
| WL-100-5-810* | 96" x 120" | 8" | 68" | 5,000 | 86" x 118" | 4155 |
| WL-100-6-68 | 72" x 96" | 10" | 70" | 6,000 | 62" x 93" | 3574 |
| WL-100-6-78 | 84" x 96" | 10" | 70" | 6,000 | 62" x 93" | 3598 |
| WL-100-6-88* | 96" x 96" | 10" | 70" | 6,000 | 86" x 93" | 4211 |
| WL-100-6-610 | 72" x 120" | 10" | 70" | 6,000 | 62" x 118" | 3983 |
| WL-100-6-710 | 84" x 120" | 10" | 70" | 6,000 | 62" x 118" | 3620 |
| WL-100-6-810* | 96" x 120" | 10" | 70" | 6,000 | 86" x 118" | 4346 |
| WL-100-8-68 | 72" x 96" | 10" | 70" | 8,000 | 62" x 93" | 3634 |
| WL-100-8-78 | 84" x 96" | 10" | 70" | 8,000 | 62" x 93" | 4636 |
| WL-100-8-88* | 96" x 96" | 10" | 70" | 8,000 | 86" x 93" | 4742 |
| WL-100-8-610 | 72" x 120" | 10" | 70" | 8,000 | 62" x 118" | 4851 |
| WL-100-8-710 | 84" x 120" | 10" | 70" | 8,000 | 62" x 118" | 4957 |
| WL-100-8-810* | 96" x 120" | 10" | 70" | 8,000 | 86" x 118" | 5201 |
| WL-100-10-68 | 72" x 96" | 14" | 72" | 10,000 | 62" x 93" | 5354 |
| WL-100-10-78 | 84" x 96" | 14" | 72" | 10,000 | 62" x 93" | 6035 |
| WL-100-10-88* | 96" x 96" | 14" | 72" | 10,000 | 86" x 93" | 6180 |
| WL-100-10-610 | 72" x 120" | 14" | 72" | 10,000 | 62" x 118" | 6081 |
| WL-100-10-710 | 84" x 120" | 14" | 72" | 10,000 | 62" x 118" | 6268 |
| WL-100-10-810* | 96" x 120" | 14" | 72" | 10,000 | 86" x 118" | 6454 |
| WL-100-12-68 | 72" x 96" | 14" | 72" | 12,000 | 62" x 93" | 6431 |
| WL-100-12-78 | 84" x 96" | 14" | 72" | 12,000 | 62" x 93" | 6617 |
| WL-100-12-88* | 96" x 96" | 14" | 72" | 12,000 | 86" x 93" | 6778 |
| WL-100-12-610 | 72" x 120" | 14" | 72" | 12,000 | 62" x 118" | 6664 |
| WL-100-12-710 | 84" x 120" | 14" | 72" | 12,000 | 62" x 118" | 6851 |
| WL-100-12-810* | 96" x 120" | 14" | 72" | 12,000 | 86" x 118" | 7037 |
* Units with 96" width must ship via flatbed freight (cannot ship LTL).
