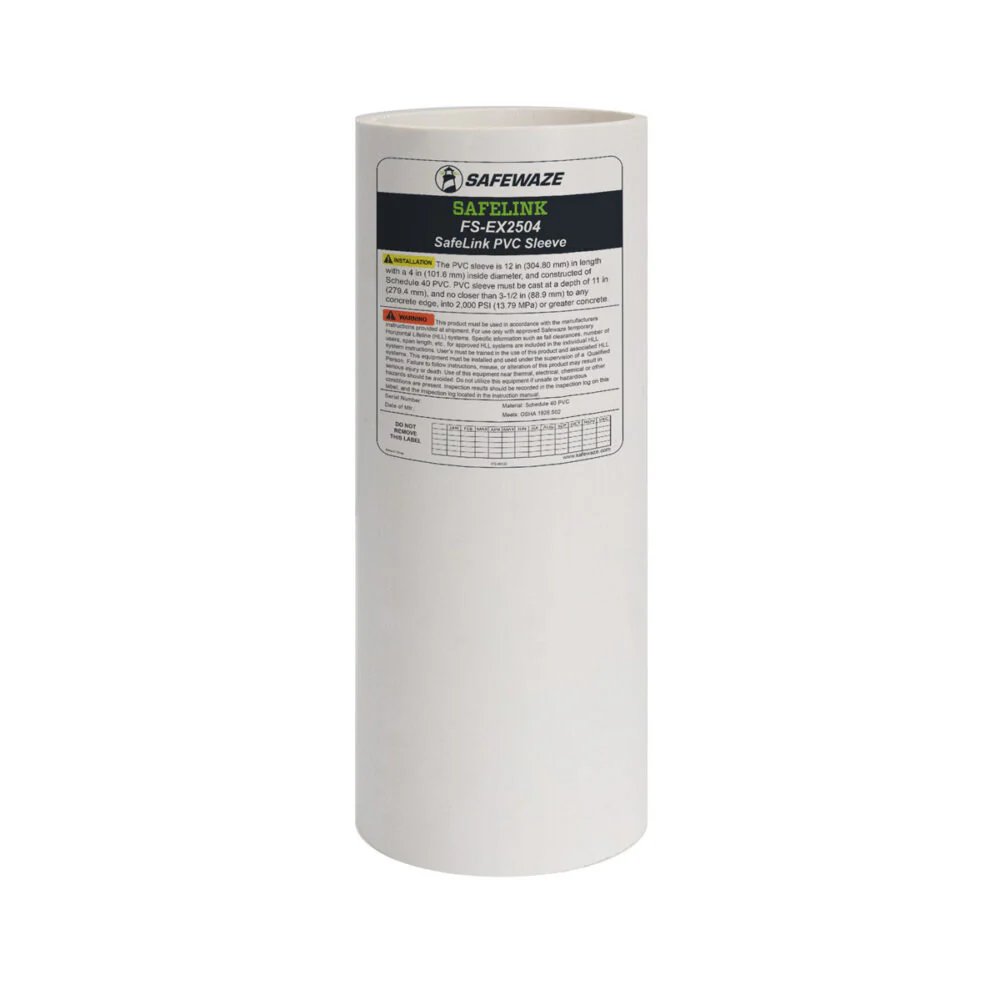

SafeLink PVC Sleeve
SafeLink Bases
The SafeLink PVC Sleeve is an embedded base that provides additional support for the post when used with the Safewaze SafeLink HLL System.
Features:
- Cast in place at a depth of 11" (279.4 mm)
- No closer than 3-1/2" (89.9 mm) to any concrete edge
- Must be installed into 2,000 psi (13.79 MPa) or greater concrete
- Use with FS-EX5501-5 aluminum posts
Specifications:
| Materials: | Schedule 40 PVC |
| Length: | 12" (304.8 mm) |
| Inside Diameter: | 4" (101.6 mm) |
| Outside Diameter: | 4.5" (114.5 mm) |
| Thickness: | 0.27" (6.8 mm) |
| Weight: | 1.4 lb. (0.6 kg) |
| OSHA Standards: | 1926.502, 1910.66 |
$4.55
Original: $13.00
-65%SafeLink PVC Sleeve—
$13.00
$4.55Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SafeLink Bases
The SafeLink PVC Sleeve is an embedded base that provides additional support for the post when used with the Safewaze SafeLink HLL System.
Features:
- Cast in place at a depth of 11" (279.4 mm)
- No closer than 3-1/2" (89.9 mm) to any concrete edge
- Must be installed into 2,000 psi (13.79 MPa) or greater concrete
- Use with FS-EX5501-5 aluminum posts
Specifications:
| Materials: | Schedule 40 PVC |
| Length: | 12" (304.8 mm) |
| Inside Diameter: | 4" (101.6 mm) |
| Outside Diameter: | 4.5" (114.5 mm) |
| Thickness: | 0.27" (6.8 mm) |
| Weight: | 1.4 lb. (0.6 kg) |
| OSHA Standards: | 1926.502, 1910.66 |
