Sunray LTS Portable Solar Light Tower
The Sunray™ LTS solar light tower delivers portable, high-intensity LED lighting with silent, fuel-free operation for demanding job sites and events.

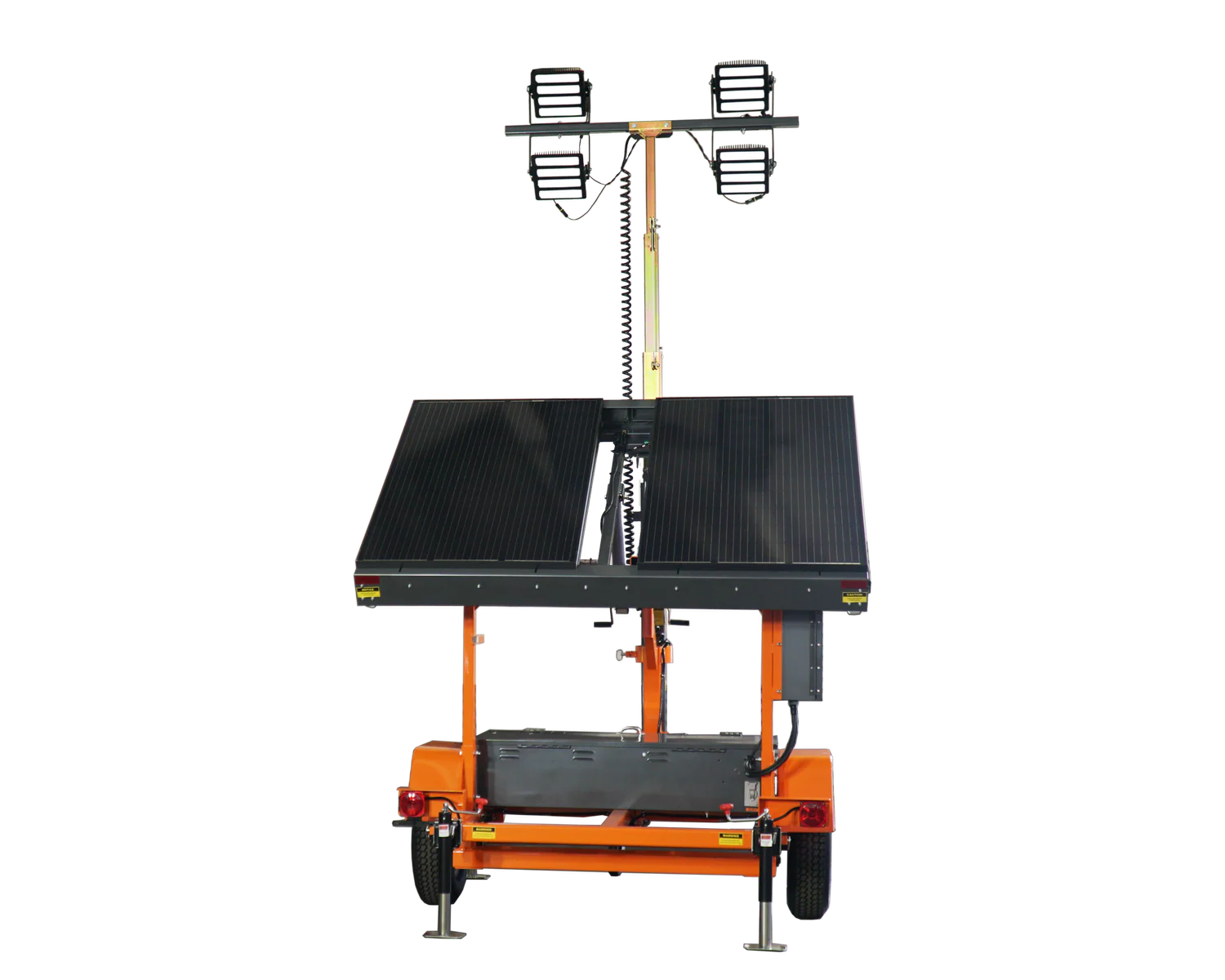

The Sunray™ LTS is a portable solar light tower built for heavy-use environments such as construction, mining, utility, and security applications. Its silent operation also makes it a strong choice for live events. The heavy-duty mast and trailer are engineered to provide a stable foundation for long-term use.
Four ultra-high intensity LED light fixtures are mounted at the top of the mast to provide powerful illumination with scalable light output. To maximize runtime, the control system includes automatic on and off operation at dusk and dawn, along with selectable run times from 3 to 12 hours.
A solar array with large tilt angles helps optimize charge time, and easy-to-read meters assist with panel positioning for maximum sunlight collection. A built-in charger with an external receptacle also allows convenient plug-in charging of the maintenance-free battery bank when needed.
Features
- Fuel-free, solar-powered operation
- Silent performance with no engine and no fumes
- Virtually maintenance-free design with no alternator
- Scalable lighting with three brightness levels
- Automatic on and off operation at dusk and dawn
- Selectable run times from 3 to 12 hours
- Optional electric tilt lamps
- Designed for rental and heavy-use environments
- Simple, user-friendly operation
Models
| Model | Solar Array | Battery Capacity |
| Sunray LTS-80 | 500W | 440Ahr |
| Sunray LTS-80 | 500W | 660Ahr |
| Sunray LTS-160 | 750W | 660Ahr |
| Sunray LTS-160 | 1000W | 660Ahr |
| Sunray LTS-300H | 750W | 660Ahr |
Specifications
| Mast Height (Raised) | 20 feet |
| Mast Height (Lowered) | 10 feet |
| Mast Base | 5 inch square, 3/16 inch wall, easy-glide, with welded turn handles |
| Mast Type | Three-stage mast with 360 degree rotation and lights stored vertically |
| Mast Cable | 3/16 inch wire rope, 4,200 breaking strength |
| Winch | 2,500 lb capacity, double disc, self-braking, optional electric hoist |
| Lamp Type | (4) 160W modular LED lamps |
| Lamp Housing | Formed aluminum |
| Lamp Orientation | Each lamp tilts and turns, and can tilt 90 to 180 degrees for downlighting |
| Lens | Molded and sealed 60 degree |
| Control | Day, week, and hourly timer with individual lamp control |
| Dimmer | Three brightness levels |
| Electric Tilt | Optional |
| Solar Collectors | 500W, 750W, or 1,000W polycrystalline with anti-theft fasteners |
| System Output | 24V |
| Meters | Momentary LED type, one for each collector |
| Collector Tilt | 0 to 40 degrees via manual crank |
| Charger | 30A, 24V, fan-cooled, external plug |
| Batteries | AGM sealed, 12V wired for 24V |
| Battery Controller | 30A PWM type |
| Photocell | Manual or dusk-to-dawn operation |
| Trailer Width (Across Fenders) | 78 inches |
| Trailer Length | 121 inches |
| Axle | 3,500 lb |
| Tires and Wheels | ST205/75D15 Load Range C |
| Hitch | 2 inch ball coupler with other options available |
| Drawbar | 3 inch square tube, 3/16 inch wall, removable |
| Trailer Weight | Varies by model |
| Battery Box | 14 gauge formed steel, anti-theft, dual no-shackle solid security locks |
| Jacks | (4) swing-type jacks rated 2,000 lb each, plus (1) wheel-type jack on drawbar |
