Made in the USA, this hydraulic rotary draw bender improves on our breakthrough RDB-150 with patented* additional features to streamline your bending jobs.

• Maximum capacity of 2” schedule 40 pipe and up to 2.5” tubing with a wall thickness of .120” mild steel.
• Rotary draw executes 180° bends in a smooth single motion.
• Bends almost 300% faster than the RDB-150, making quick work of round tube, pipe, and square tubing.
• Auto-stop programming lets you achieve the desired bend angle without worrying about accuracy.

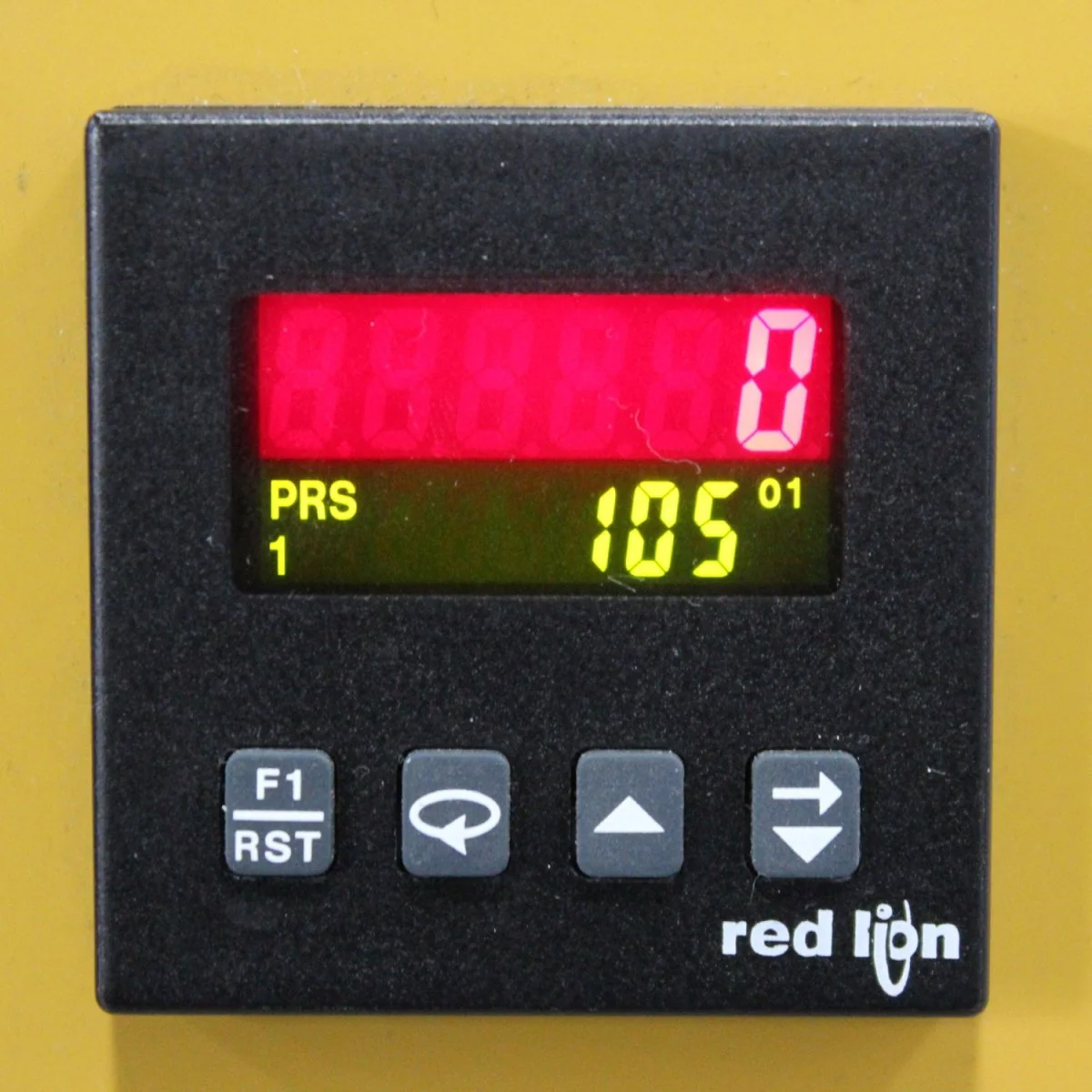

• Easy-to-read digital degree indicator to monitor bend progress and check angles.

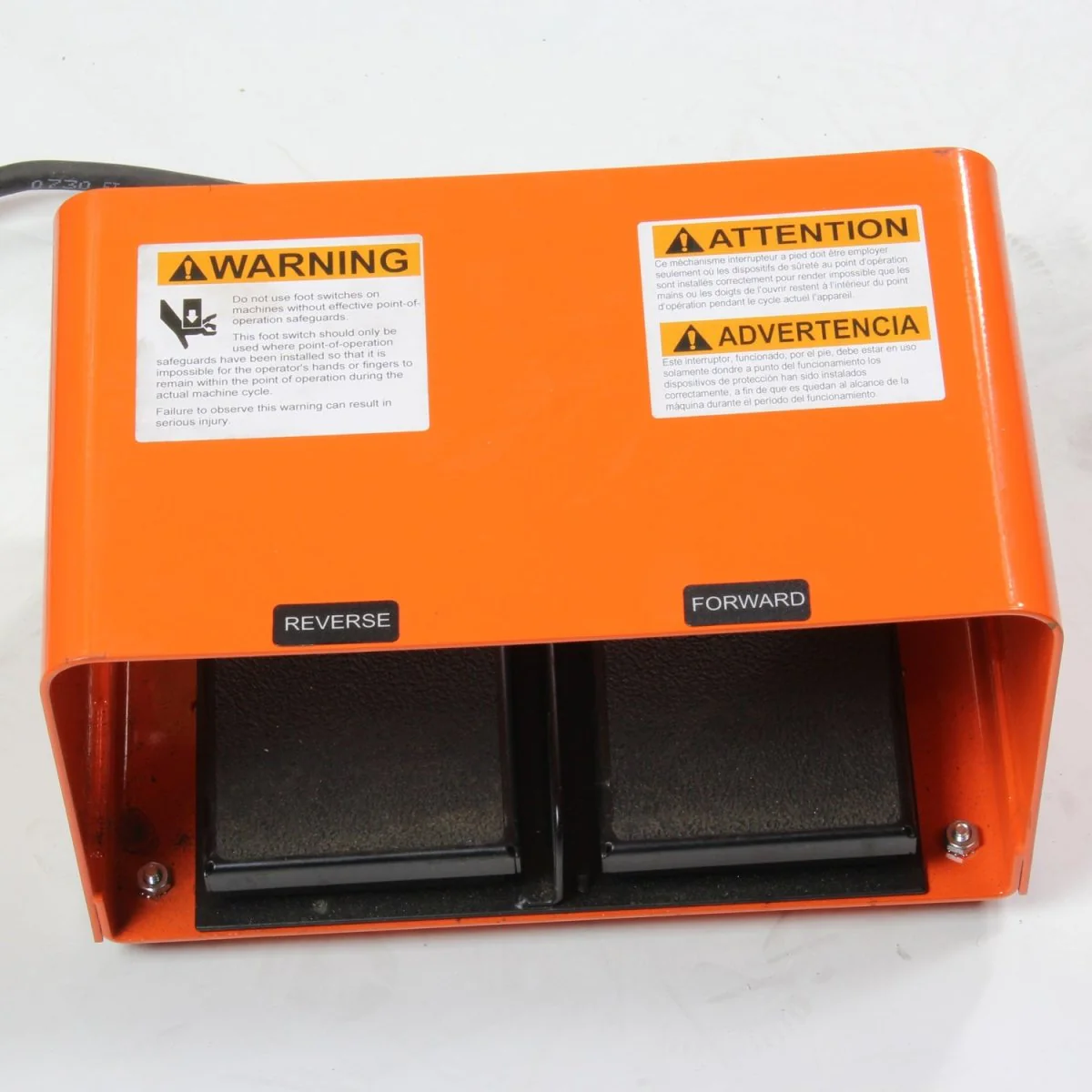

• Convenient foot pedal controls the movements of the bender, leaving your hands free to guide the material.
• Works with up to a 9’’ centerline radius to accommodate 90% of applications.

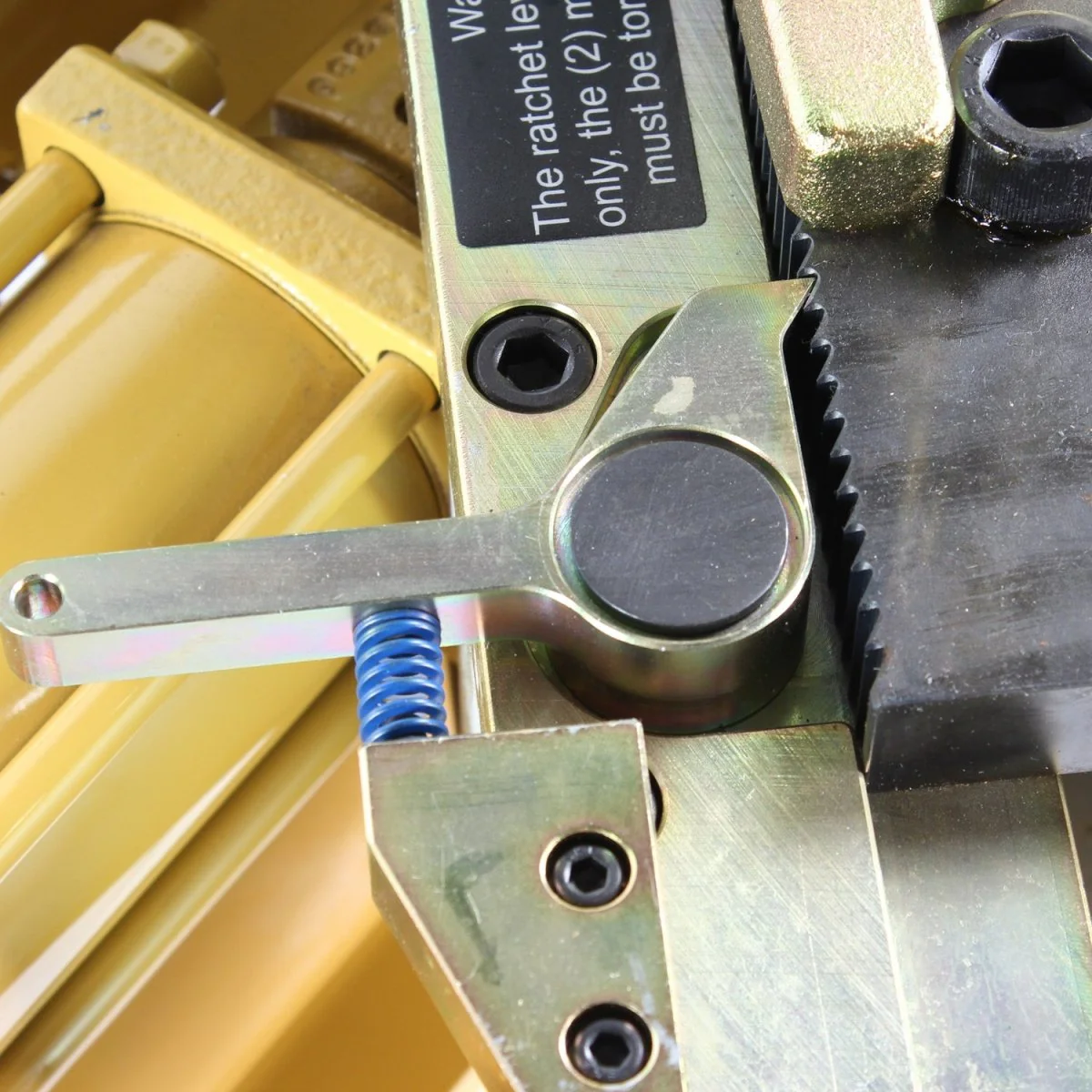

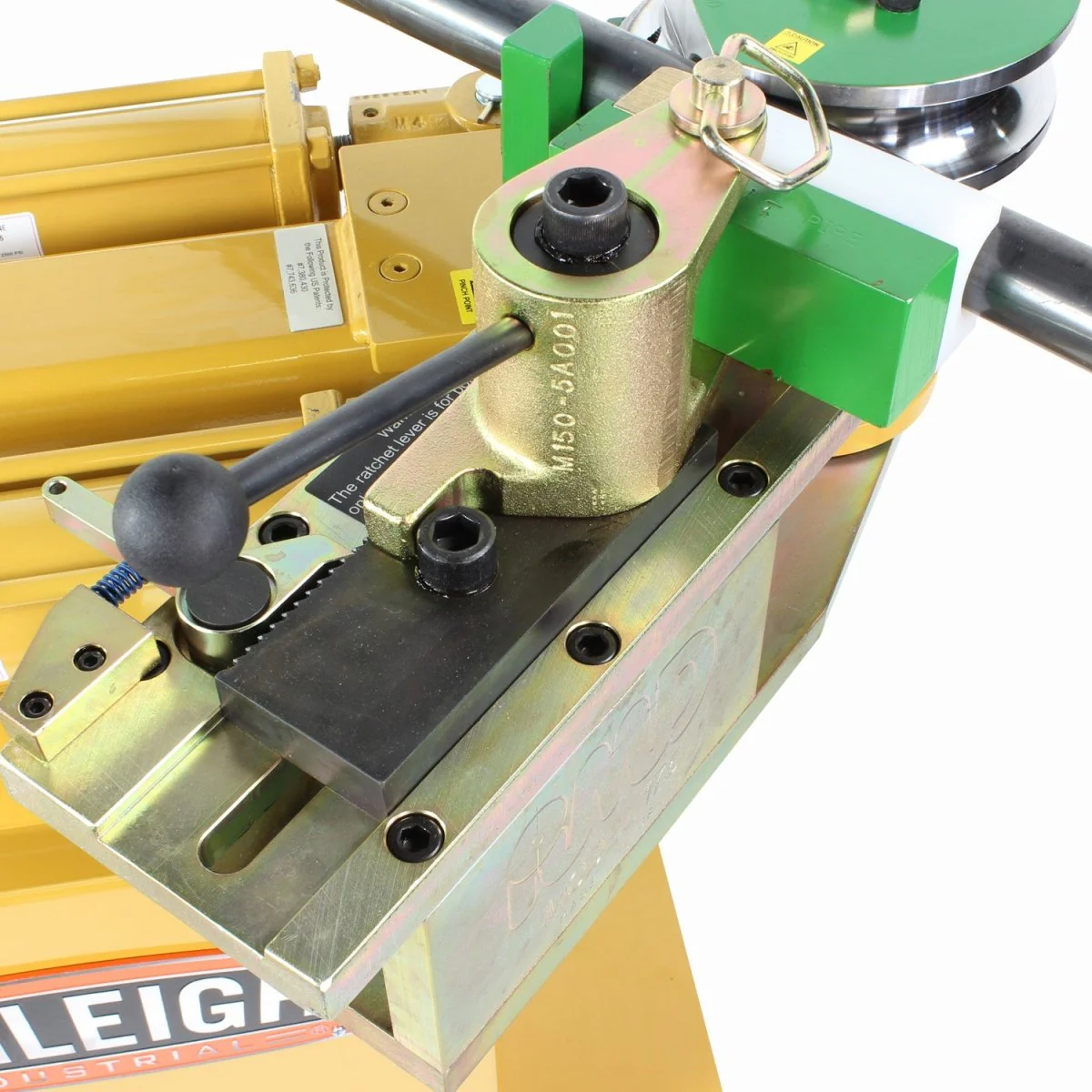

• Ratcheting counter die adjustment allows for quick tooling changes.

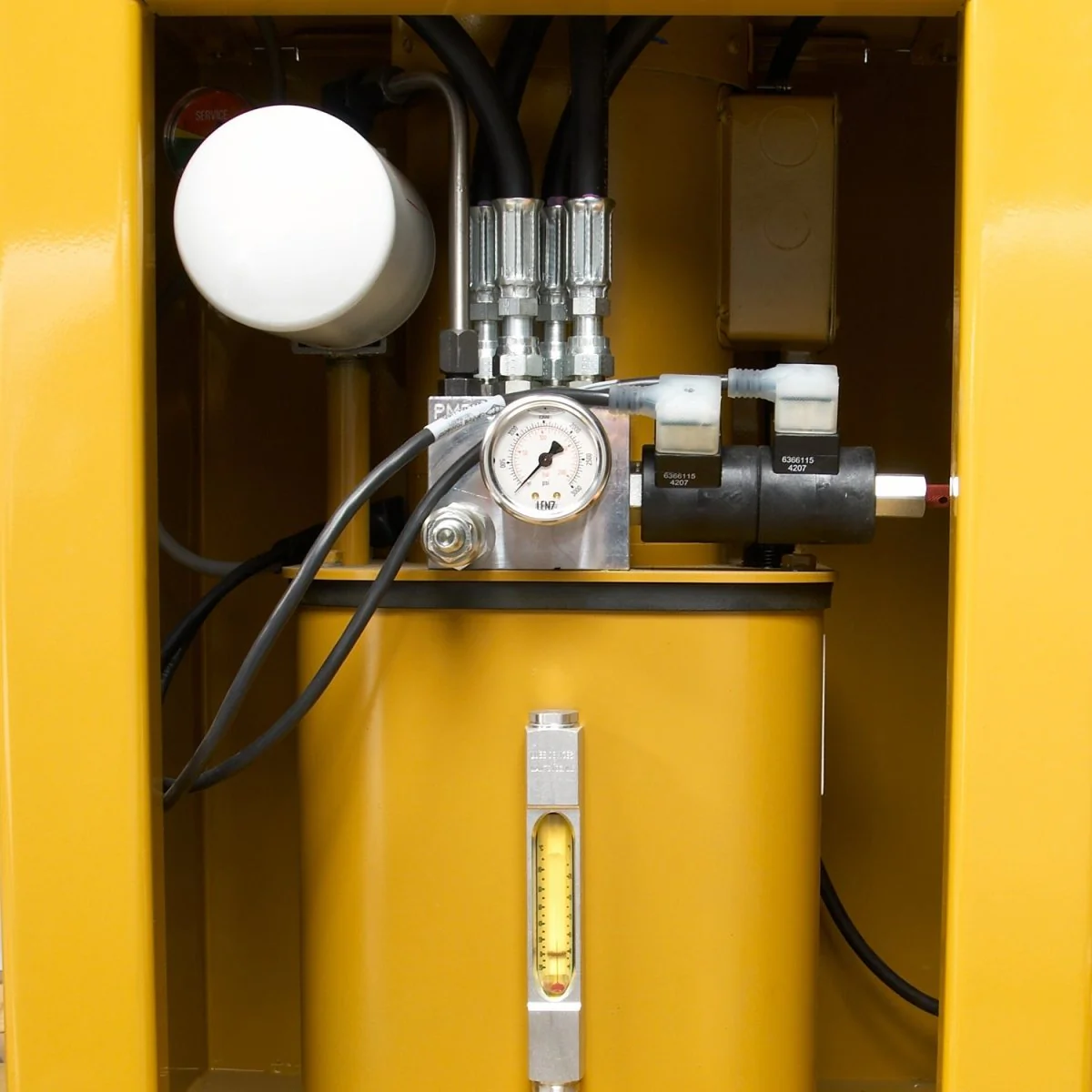

• No valves on top, leaving plenty of open space for complex bends.
• Backed by a 1-year parts warranty and lifetime technical support.



Use this machine for: Creating custom chassis, handrails, boilers, and metal art, among other projects.



Why choose the RDB-175 over similar machines?

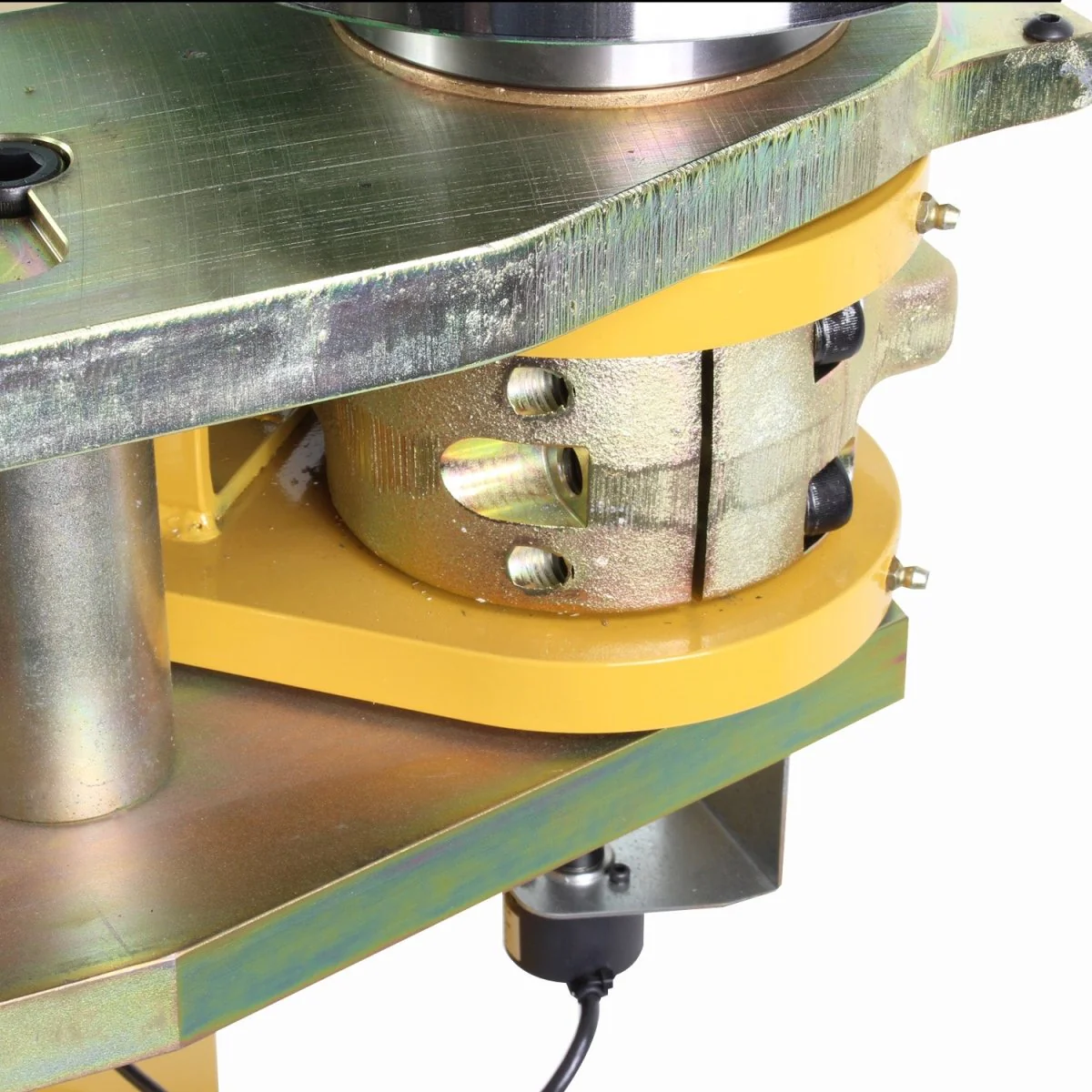

• Improved-accuracy digital readout package measures bend angle on the die head or spindle instead of cylinder placement to get a true reading.
• You can count on the extreme speed and reliability of the RDB-175 to eliminate delays.
• Accepts a wide range of quality tooling options from Baileigh, with over 5000 die sets available.

  Item Number	RDB-175
  Country of Manufacture	United States
  Minimum CLR	.5"
  Minimum OD	.25"
  Mild Steel Solid Rod	1"
  Mild Steel Pipe Schedule 40	2"
  Mild Steel Round Tube Wall	2.5" (.125)
  Mild Steel Square Tube (Wall)	2" (.125)
  Stainless Steel Pipe Schedule 40	1.5"
  Stainless Steel Round Tube Wall	2.375" (.125)
  Chromolly Round Tube Wall	2" (.125)
  Aluminum Round Tube Wall	2.5" (.156)
  Maximum Center Line Radius Clr	9"
  Power	110V
  Shipping Weight	700lbs
  Special Notes	Tooling not included, contact Baileigh at 920-684-4990 for correct sizing.
  Things to Know Before Purchase	All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
  Shipping Dimensions (Inches)	60x44x77

  * specifications subject to change without notice.
