Universal Trash Can Dumpers

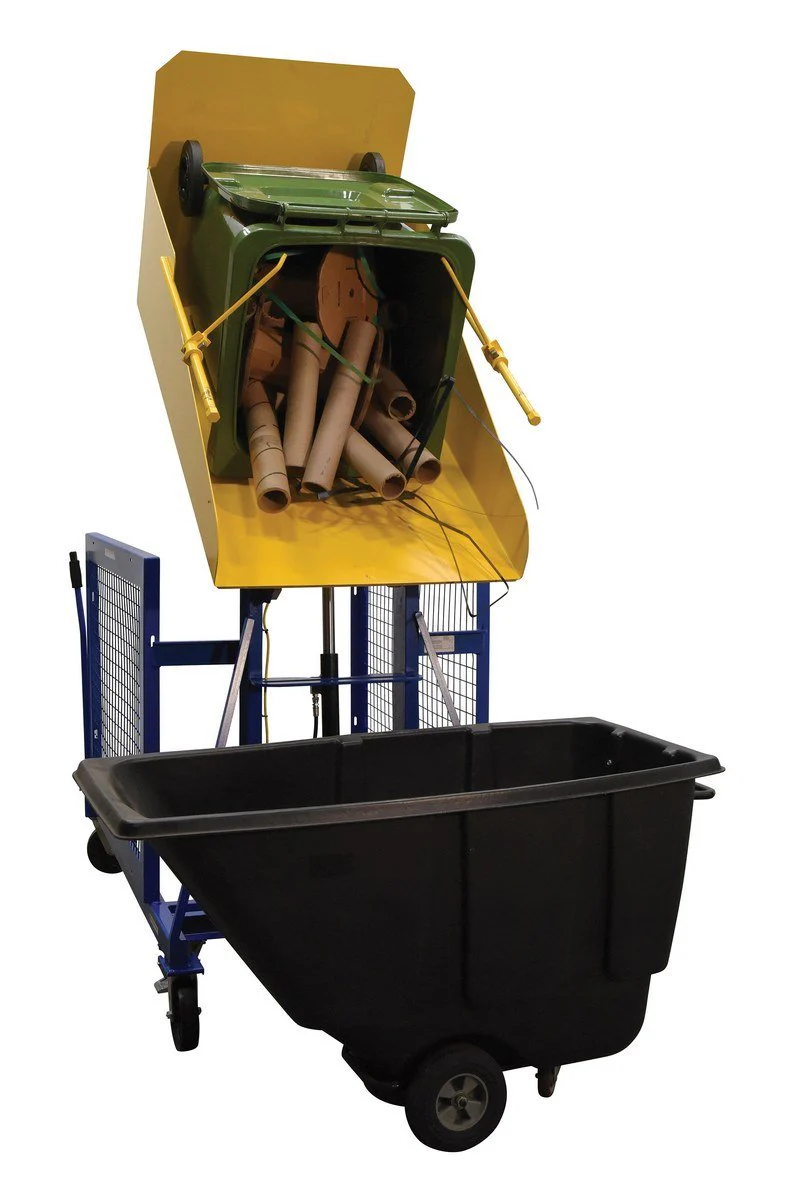

This innovative product allows one person to easily load, maneuver, and dump heavy trash cans of various sizes
The large squared chute and hold-down fingers allow this product to dump and retain most trash cans. Works with trash cans measuring 17-1/2" to 34-3/4" wide, 20-1/2" to 35-7/8" long, and 27" to 50" high. Multiple operations available; 115V AC, and 12V DC power with one (1) battery and an on-board charger, battery charge indicator gauge are standard. Units roll smoothly on (2) two swivel and (2) two rigid 8" x 2" glass filled nylon casters. Two (2) adjustable floor locks are also included. Ships fully assembled.
| Universal Trash Can Dumpers | |||||||
| Model | Image | PDFs | Operation | Max. Dump Angle |
Max. Dump Height |
Uniform Capacity (lbs.) |
Wt. (lbs.) |
| TCD-U-48-AC |  |

|
AC Powered | 135 degrees | 48-9/16" | 400 | 790 |
| TCD-U-48-DC |  |
|
DC Powered | 135 degrees | 48-9/16" | 400 | 891 |
| TCD-U-60-AC |  |
|
AC Powered | 135 degrees | 59-13/16" | 400 | 877 |
| TCD-U-60-DC |  |
|
DC Powered | 135 degrees | 59-13/16" | 400 | 992 |
| TCD-U-72-AC |  |
|
AC Powered | 135 degrees | 72-15/16" | 400 | 991 |
| TCD-U-72-DC |  |
|
DC Powered | 135 degrees | 72-15/16" | 400 | 1099 |
KEY: = Approval Drawing --
= Warranty -- = Testing Certificate
