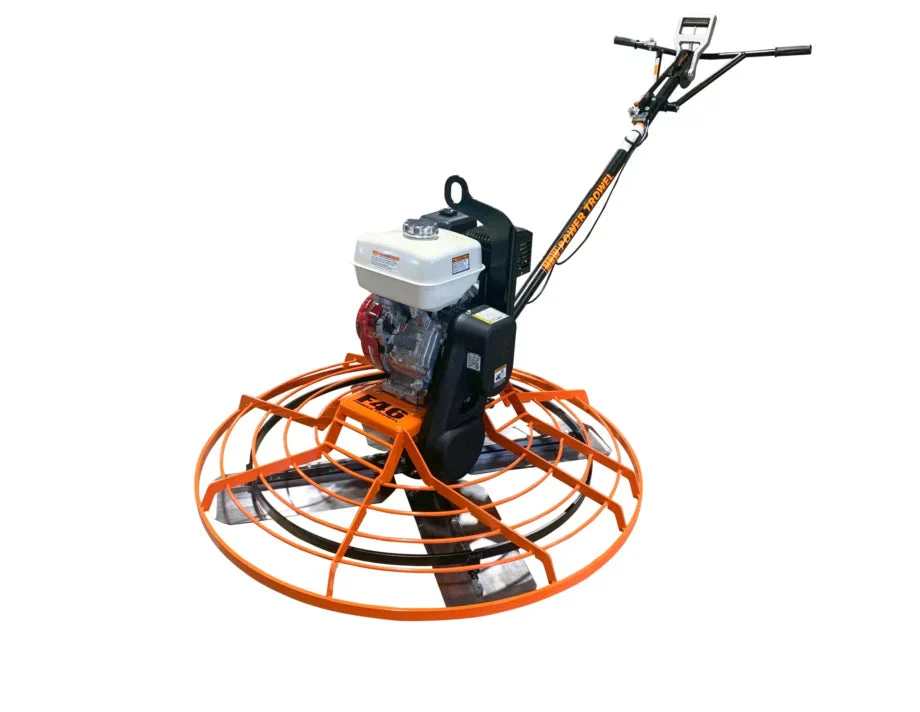

Walk-Behind Concrete Trowel F46
MBW’s 4-foot walk-behind trowels come in a variety of engine and handle options to suit all operators.
With a gearbox machined and built in-house, these units are designed to last. Teflon inserts in the one-piece spider assembly ensure that the trowel arms will never seize up. The MBW F46 also utilizes hex trowel arms longer than the industry standard, resulting in less deflection.
Additionally, these units are offered in a High Torque version that allows for a larger window of adjustability on blade RPMs, both on the high and low ends.
The F46 comes with four handle options: Standard, Low Vibration, EZ Pitch and the new Power Pitch.
Manual
Specifications |
F46
|
|
Engine Options Operating Weight
|
Honda GX270
246 lbs. (112 kg)
Honda GX390
260 lbs. (118 kg)
Honda GX390 High Torque
267 lbs. (121 kg)
|
|
Ring Diameter
|
47.6 in (121 cm)
|
|
Blade Sweep Diameter
|
46 in (117 cm)
|
|
Trowel Speed
|
70-135 rpm
35-180 rpm (High Torque)
|
|
Low Vibration Handle Height
|
35.8" Min - 43.3" Max
(91-110 cm)
|
|
Noise Level
|
85-105 dBA
|
Comparison Chart
| Model | F36 | F46 |
|---|---|---|
| Engine Options / Operating Weight | Honda GX160 (183 lbs. / 83 kg) Honda GX270 (209 lbs. / 95 kg) Honda GX270 High Torque (216 lbs. / 98 kg) | Honda GX270 (246 lbs. / 112 kg) Honda GX390 (260 lbs. / 118 kg) Honda GX390 High Torque (267 lbs. / 121 kg) |
| Ring Diameter | 37.5 in (95 cm) | 47.6 in (121 cm) |
| Blade Sweep Dia. | 35.5 in (90 cm) | 46 in (117 cm) |
| Trowel Speed | 70–135 rpm 35–180 rpm (High Torque) | 70–135 rpm 35–180 rpm (High Torque) |
| Low Vibration Handle | 35.8 m/s² – 43.3 m/s² | — |
| Noise Level | 85–105 dBA | 85–105 dBA |
Handles Options
Standard Handle
Our standard handle is a tool-free height adjustable operator handle.
Low Vibe Handle
The Low Vibe handle is our patented low vibration handle designed to reduce operator fatigue. It can be retrofitted onto older MBW trowels as a complete assembly.
Ez Pitch Handle
The EZ Pitch™ handle employs a constant force gas spring to allow for low effort and rapid adjustment of blade pitch. Can be retrofitted to older MBW trowels as a complete assembly.
