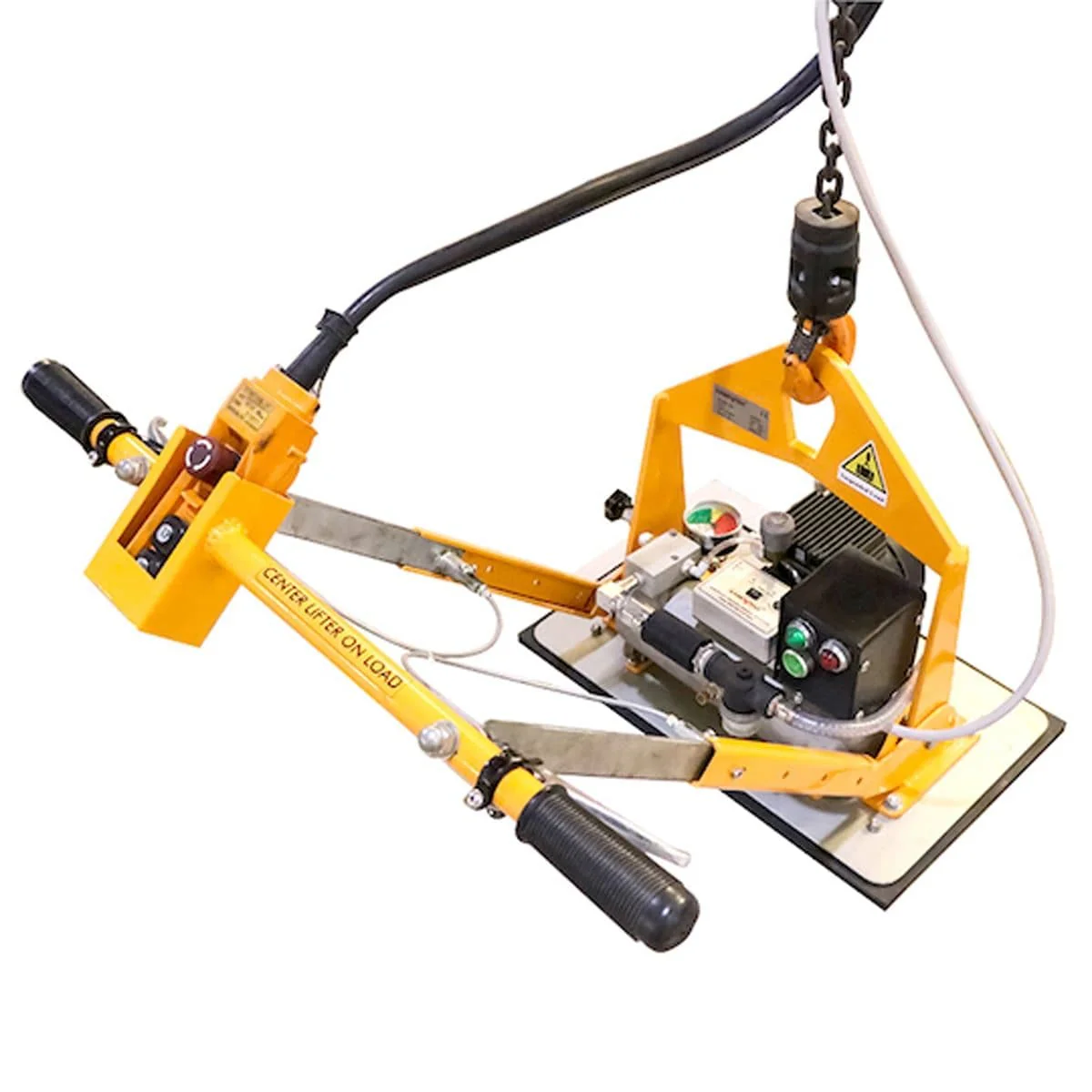

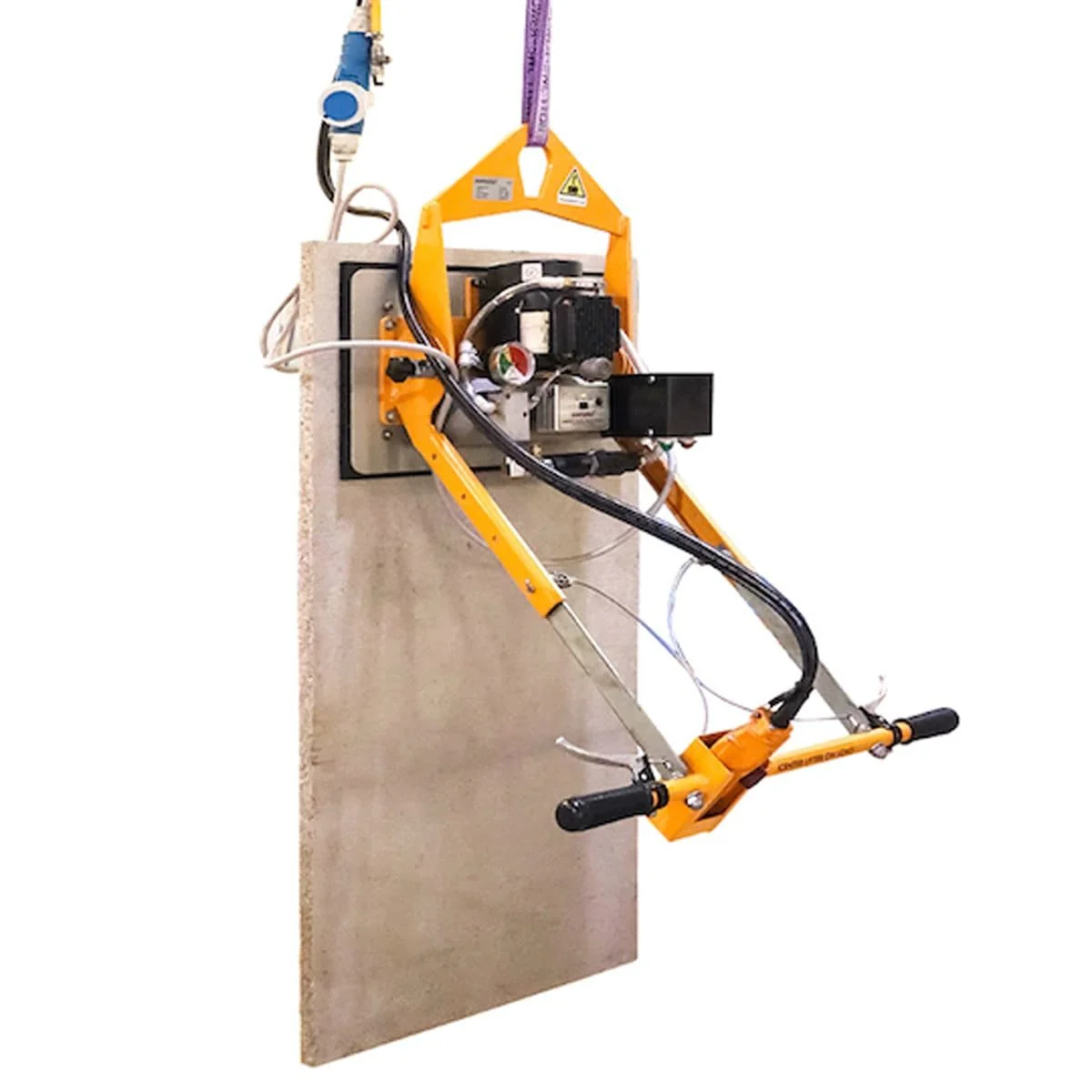

Aardwolf Electric Vacuum Lifter AEVL1-250kg
Vacuum Lifter is suitable for moving small sized material and stone
Featuring a sliding valve, the AEVL1-250 is a powered vacuum lifter which is suitable for securely handling small-sized materials. By means of a vacuum tank, the lifter ensures safe pick-up in the event of a sudden power break to the vacuum pump.
Features
Metal structure tilting from 0 to 90° manually
Vacum tank for no risks when lifting/tilting materials
Slider valve with an ON/OFF position for attaching materials to the vacuum pads and releasing the materials from vacuum pads
Audio-visual alarm system
Specifications
|
Metric (mm-kg) |
Imperial (inch-lbs) |
|
| Pad dimension | 520x320mm | 20.5x12.6 |
| Working load limit | 250 | 551 |
| Net weight | 35 | 77 |
| Gross weight | 48 | 106 |
| Packaging dimension | 760x660x470 | 29.9x26x18.5 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Vacuum Lifter is suitable for moving small sized material and stone
Featuring a sliding valve, the AEVL1-250 is a powered vacuum lifter which is suitable for securely handling small-sized materials. By means of a vacuum tank, the lifter ensures safe pick-up in the event of a sudden power break to the vacuum pump.
Features
Metal structure tilting from 0 to 90° manually
Vacum tank for no risks when lifting/tilting materials
Slider valve with an ON/OFF position for attaching materials to the vacuum pads and releasing the materials from vacuum pads
Audio-visual alarm system
Specifications
|
Metric (mm-kg) |
Imperial (inch-lbs) |
|
| Pad dimension | 520x320mm | 20.5x12.6 |
| Working load limit | 250 | 551 |
| Net weight | 35 | 77 |
| Gross weight | 48 | 106 |
| Packaging dimension | 760x660x470 | 29.9x26x18.5 |
