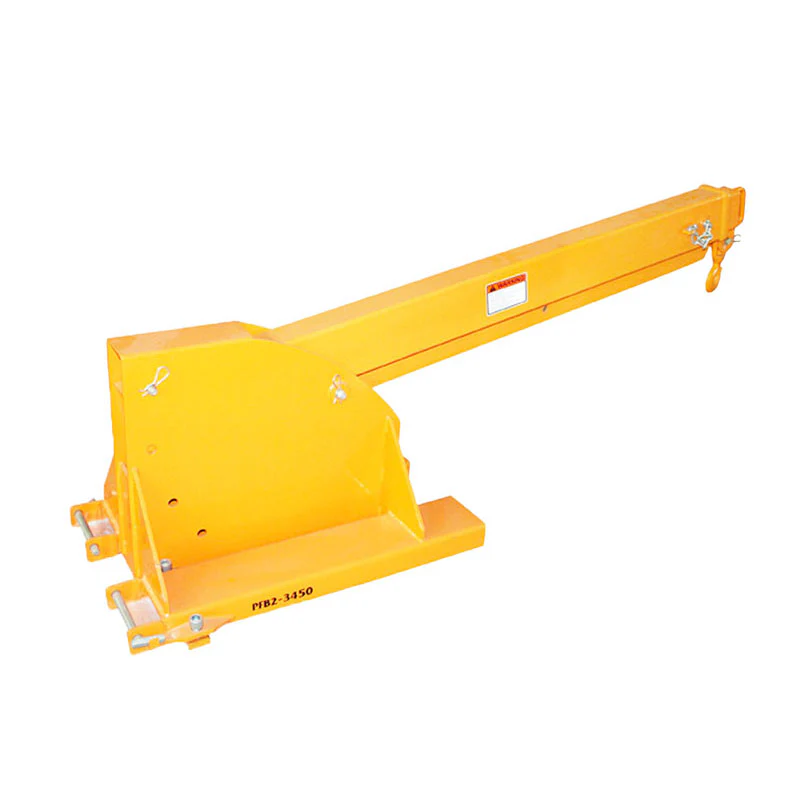

The Pivot Boom PFB2/3450 is adjustable for height and length.

The tilt facility allows the extra height to compensate for the hook and sling length lost when lifting with a jib attachment.

Features

• The boom extension is designed so that it cannot be pulled all the way out

• The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins

• Adjusts from 0 to 52 degrees


Note: Boom lift capacities depend completely on the forklift's capacity.

Specifications

	Metric	Imperial
Manual telescope	1930 - 3412 mm	76" - 134.3"
Increment	494 mm	19.4"
Slip onto fork designed with fork pocket	154x58 mm	6.1"x2.3"
Fork pocket	366 mm	14.4"
Working load limit	Retracted: 1500 kg Extended: 600 kg	3307 lb 1322 lb
Net weight	196 kg	432 lb
Gross weight	206 kg	454 lb
Packaging dimensions	L.2250xW.620xH.730 mm	L.88.6"xW.24.4"xH.28.7"
