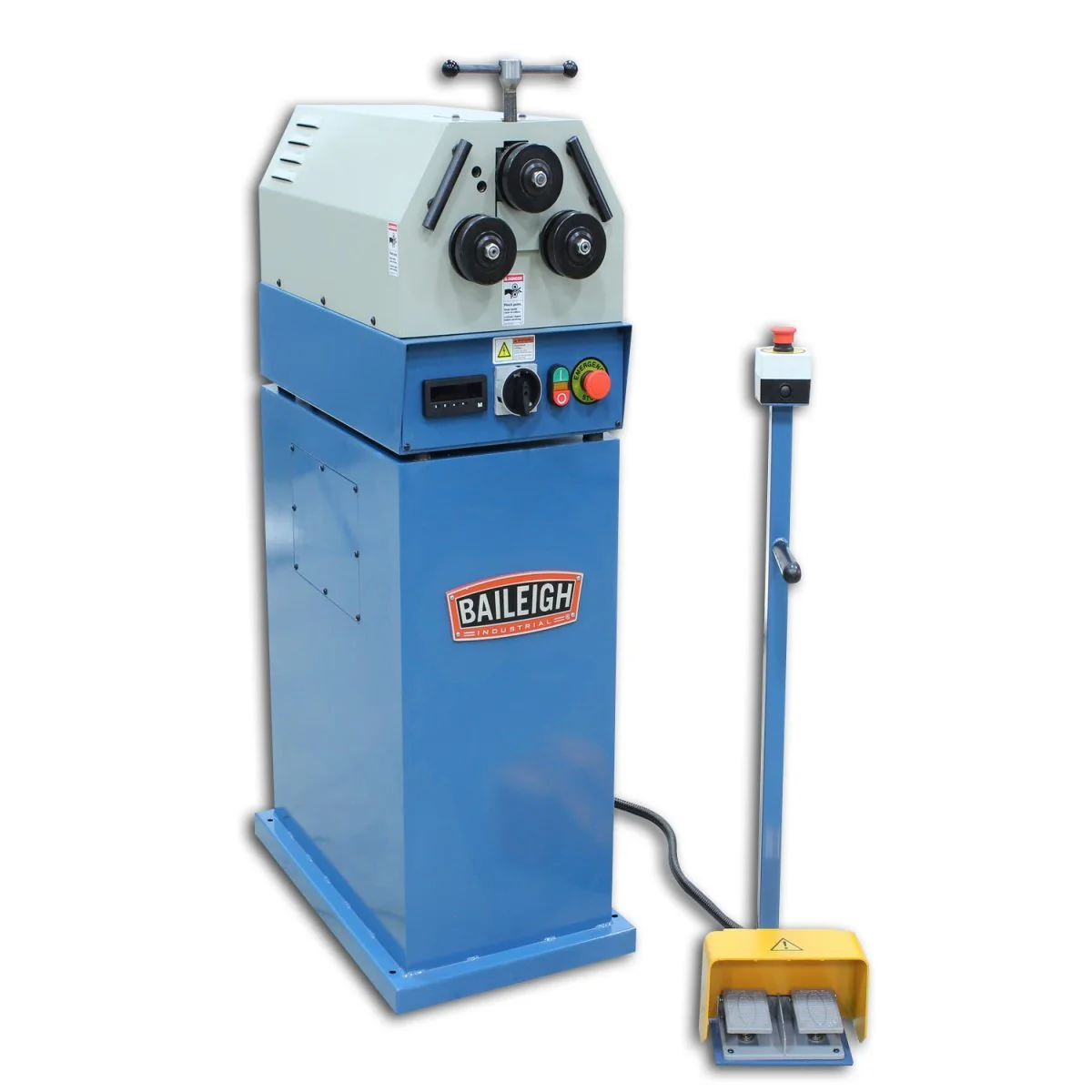

Roll Bender - R-M20-220

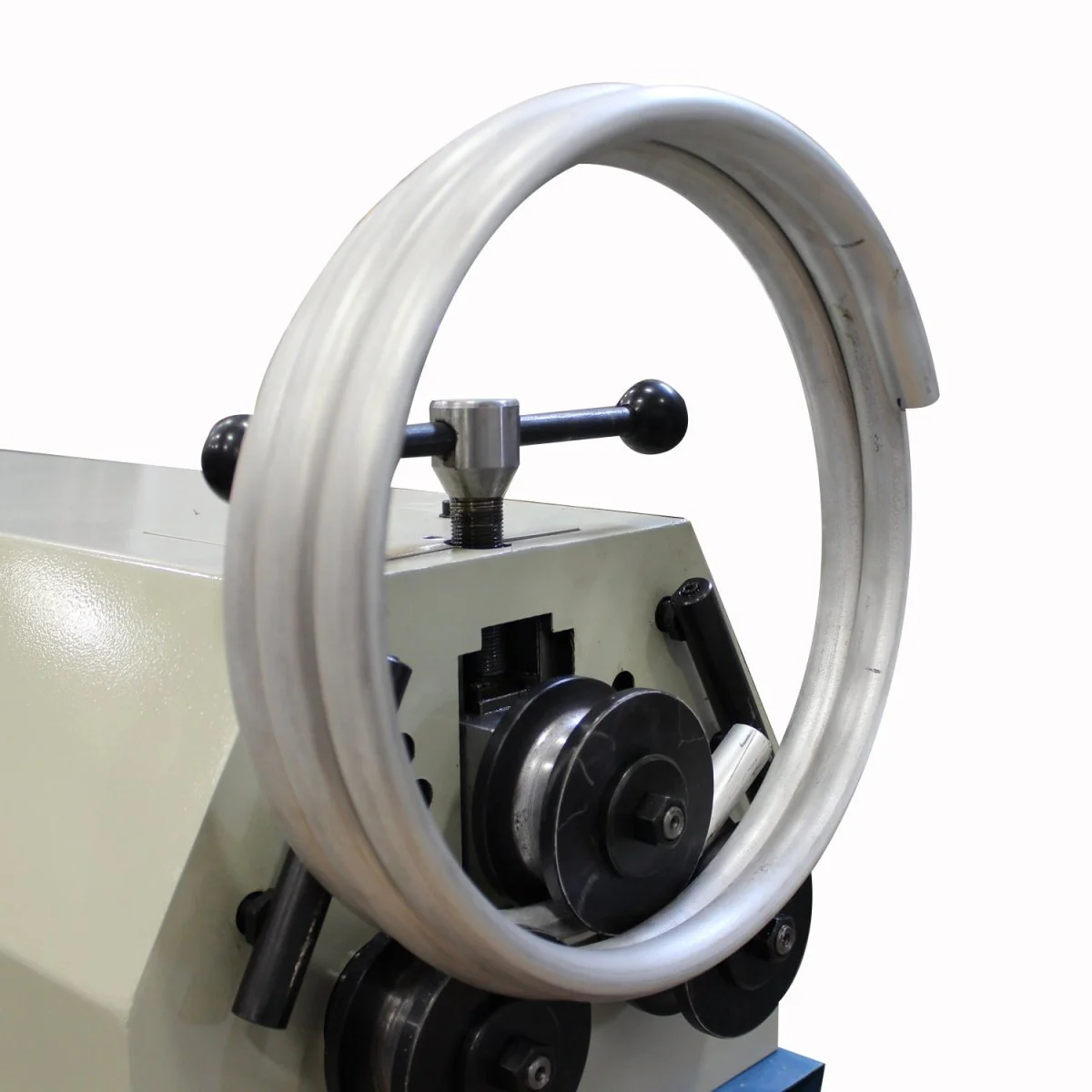

We designed the R-M20 ring roller with tight, compact roll formation to shape small diameter material and roll coils without trouble.
- Runs on 220-volt 3-phase power.
- Maximum capacity of .5" schedule 40 pipe and 1" round tube.
- Adjustable lateral guides let you bend to just about any coil width imaginable.

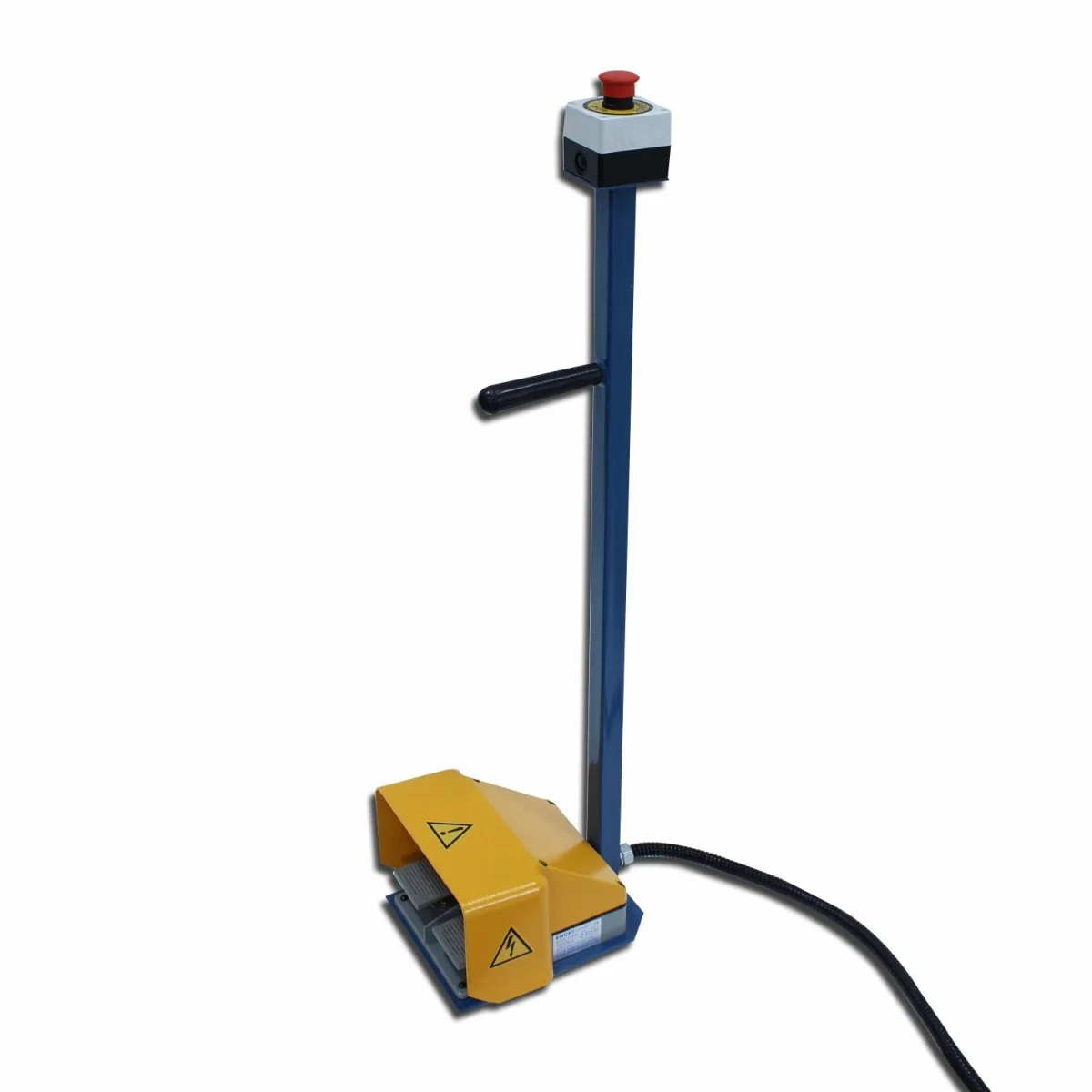

- Convenient foot pedals control forward and reverse roll direction.

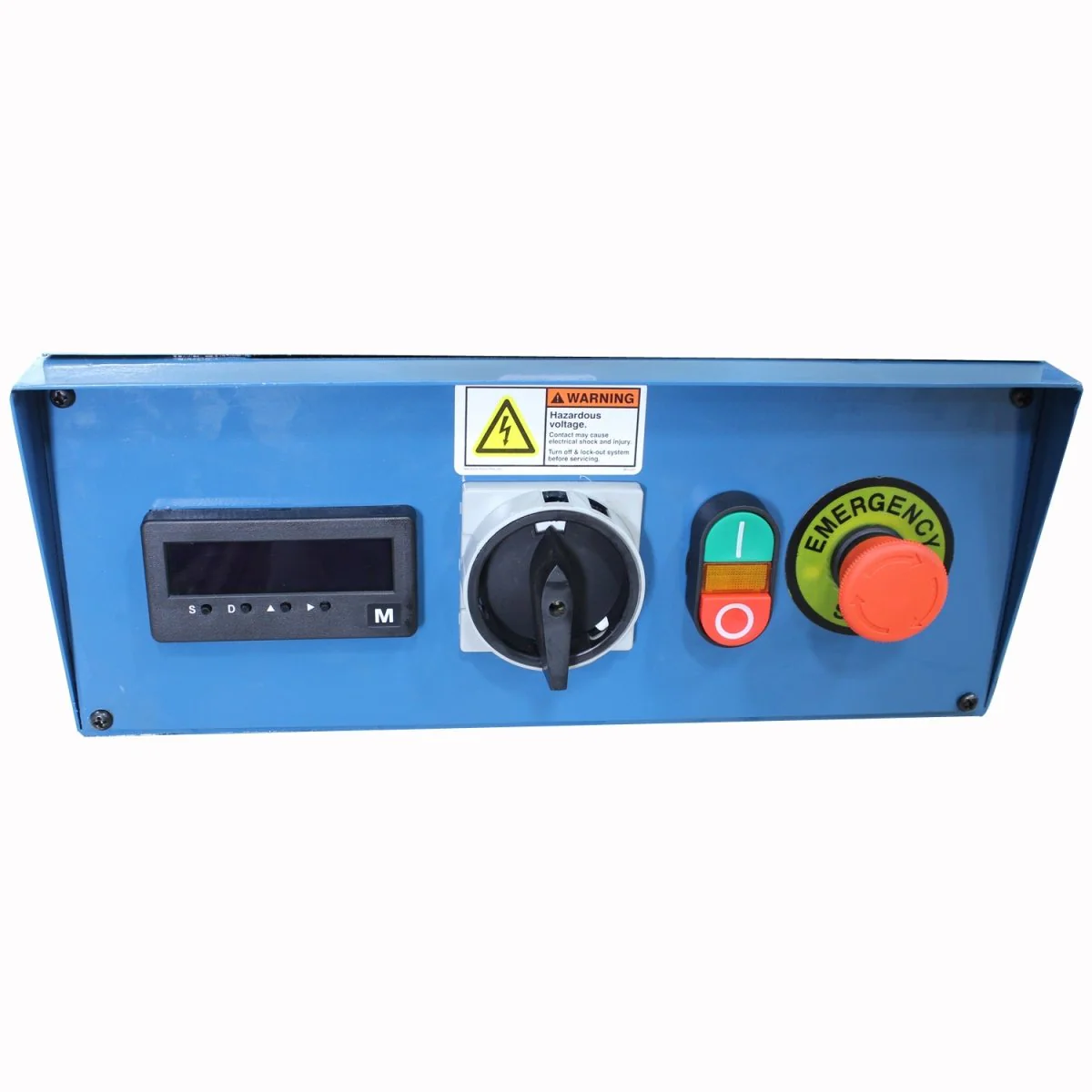

- Easy-to-read digital display shows top roll position, making bend repeatability a cinch.
- Emergency stop protects your safety, as well as the machine.

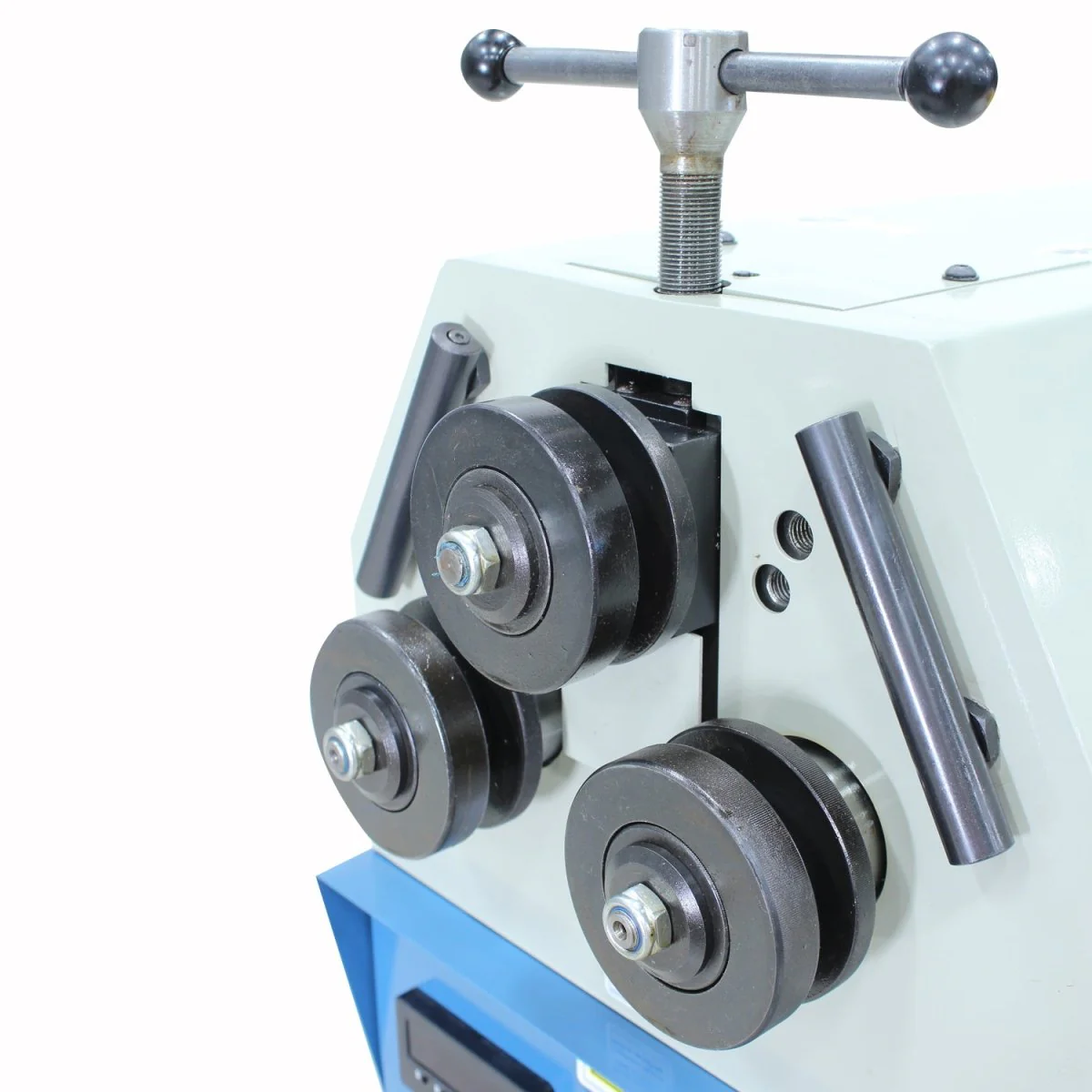

- Rugged steel frame plus hardened, ground, and polished steel shafts ensure accuracy and years of productivity.

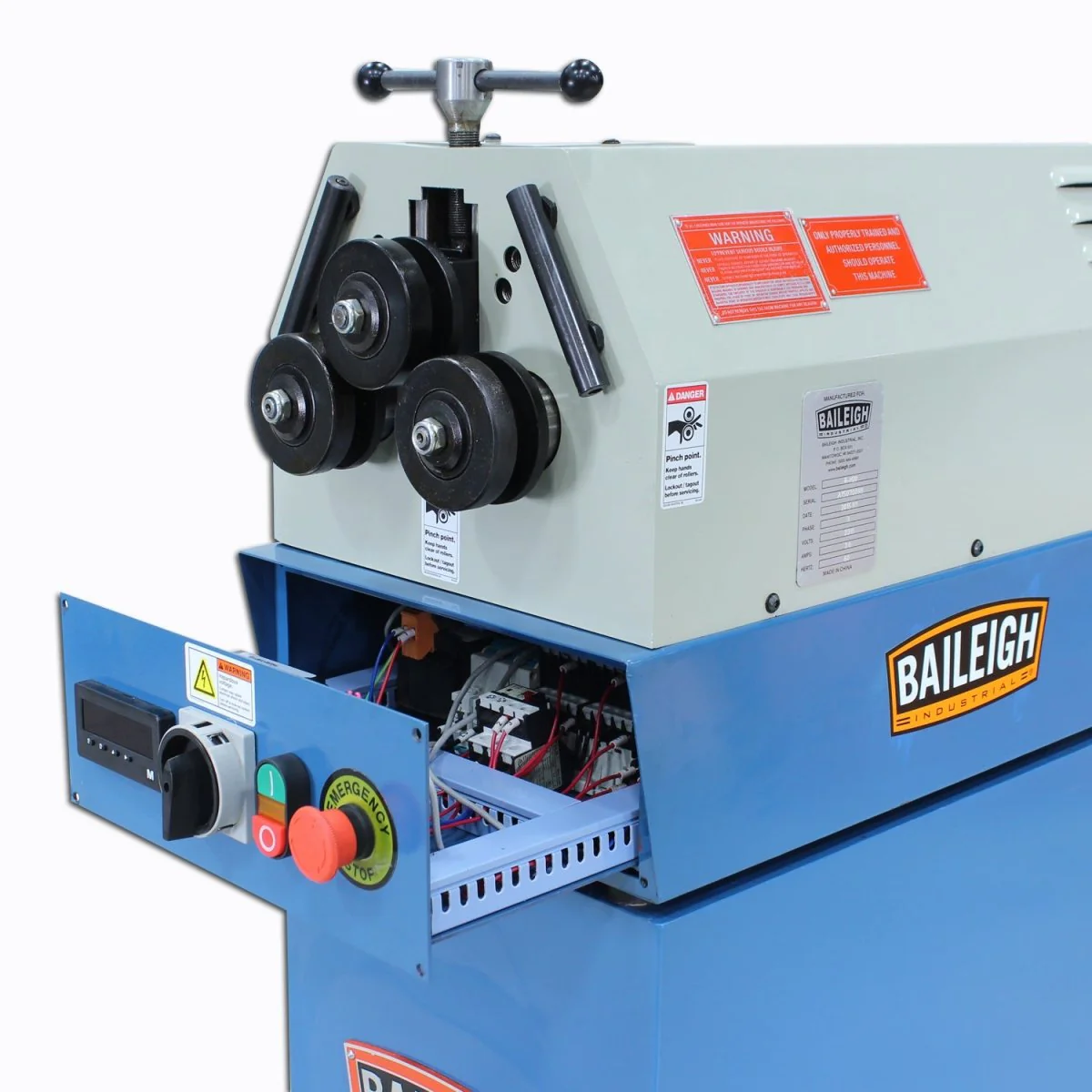

- Machine head separates from included stand to make the machine portable and easy to store—an advantage for working in small shops or traveling to work on-site.
- Covered by a 1-year parts warranty and lifetime technical support from Baileigh’s experienced reps.
| Item Number | R-M20-220 |
|---|---|
| Driven Rolls | 2 |
| Roll Adjustment | Manual |
| Pipe Capacity | Size: .5” (sch.40) / Min. Dia.: 14” |
| Round Tube Capacity | Size: 1" (.0625") Min. Dia.: 16" |
| Square Tube Capacity | .75" (.0625") Min. Dia.: 12" |
| Solid Round Capacity | Size: .5" Min. Dia.: 5" |
| Flat Bar Easy Way | Size: 1.75" Min. Dia.: 12" |
| Flat Bar Hard Way | Size: 1" Min. Dia.: 8" |
| Angle Iron Capacity | Size: .75" (.125") Min. Dia.: 10" |
| Shaft Diameter | .78" |
| Shaft Center Distance Lower Rolls | 10.88" |
| Upper Roll Dia. | 3.38" |
| Lower Roll Dia. | 3.38” |
| Pinch | Single |
| Power | 220V - 3-Phase |
| Shipping Weight | 420lbs |
| Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel. |
| *Optional Tooling | Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details. |
| Speeds | 14285 |
| Shipping Dimensions (Inches) | 60x44x59 |
* specifications subject to change without notice.
